First Things First
3. Remove Template and clean drill shavings from
EN
inside and underside of cabinet.
4. If your cabinet does not have an
overhang, go to Step 5.

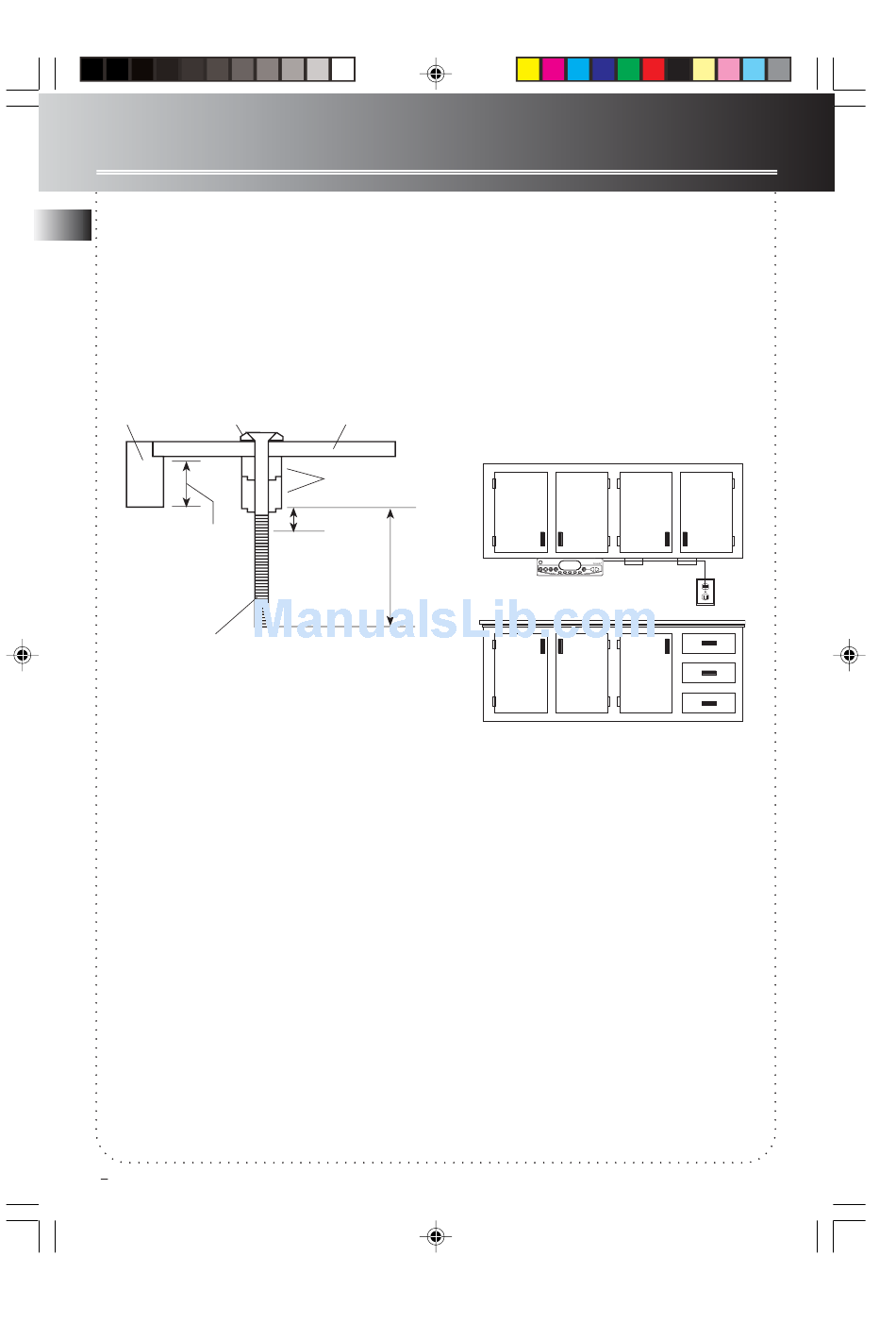

If your cabinet has an overhang, select the
spacer or combination of spacers that is equal
to or longer than the cabinet overhang.
CABINET
OVERHANG
EQUAL TO OR
LONGER THAN
CABINET
OVERHANG
SELECTED SCREWS WHICH MEET MINIMUM,
BUT DO NOT EXCEED MAXIMUM LENGHT.
5. Insert screws FROM INSIDE THE CABINET. The
washers must be used on metal cabinets, and
on wood cabinets if you did not countersink
the drilled holes. Position washers, flat side
down, and place screws into the holes.
If your cabinet does not have an
overhang, go to Step 7.
6. Hold screw heads down while you push the
selected spacers onto the screws under the
cabinet. Be sure to push up spacers until they
are firmly against the cabinet bottom and/or
fully nested (if more than one is used).
7. Align radio under the screws. Hold the screw
holes in the top of the clock radio against the
mounting screws and partially tighten the
screws.
Do not fully tighten until all 3 screws have
been started. (The top front edge of the clock
radio should clear the overhang.)
3
Untitled-2
CABINET
WASHER
BOTTOM
SPACERS
3
/
" MINIMUM
8
3
/
" MAXIMUM
4
5
8. Extend cord towards electrical outlet and
secure by using the Cord Hooks to hold cord
out of the way. For most attractive appearance,
place Cord Hooks at back edge of cabinet (on
or next to wall) directly over outlet to be used.
To attach Cord Hooks, peel off adhesive back
and attach to a clean, dry surface on underside
of cabinet or back wall. Plug Cord into 120-volt
AC electrical outlet.
We recommend that the line cord be fully
extended for best FM reception.
COMPACT DISC PLAYER
- DIGITAL 2 BAND RADIO RECEIVER
ON /
FUNCTION
SET
INSTANT
TIMER
TUNING /
BAND
OFF
CLOCK
WEATHER
ON / OFF
CLOCK SET
CLOCK/TIMER DISPLAY
OF
RADI
C
STO
PLAY/PAUS
A
MEMORY STATIONS
TIMER ON/SET
OF
1
2
3
SEARC
TRAC
4
5
Spacemaker
STERE
Compact DIsc Player
AM/FM Stereo
High Performance Sub-woofer
REPEA
SHUFFL
F
85
92
96
100
104
108
MH
HOU
MINUT
SE
A
530
650
800
1000
1300
1700
kHz
3/5/03, 9:38 AM
