First Things First

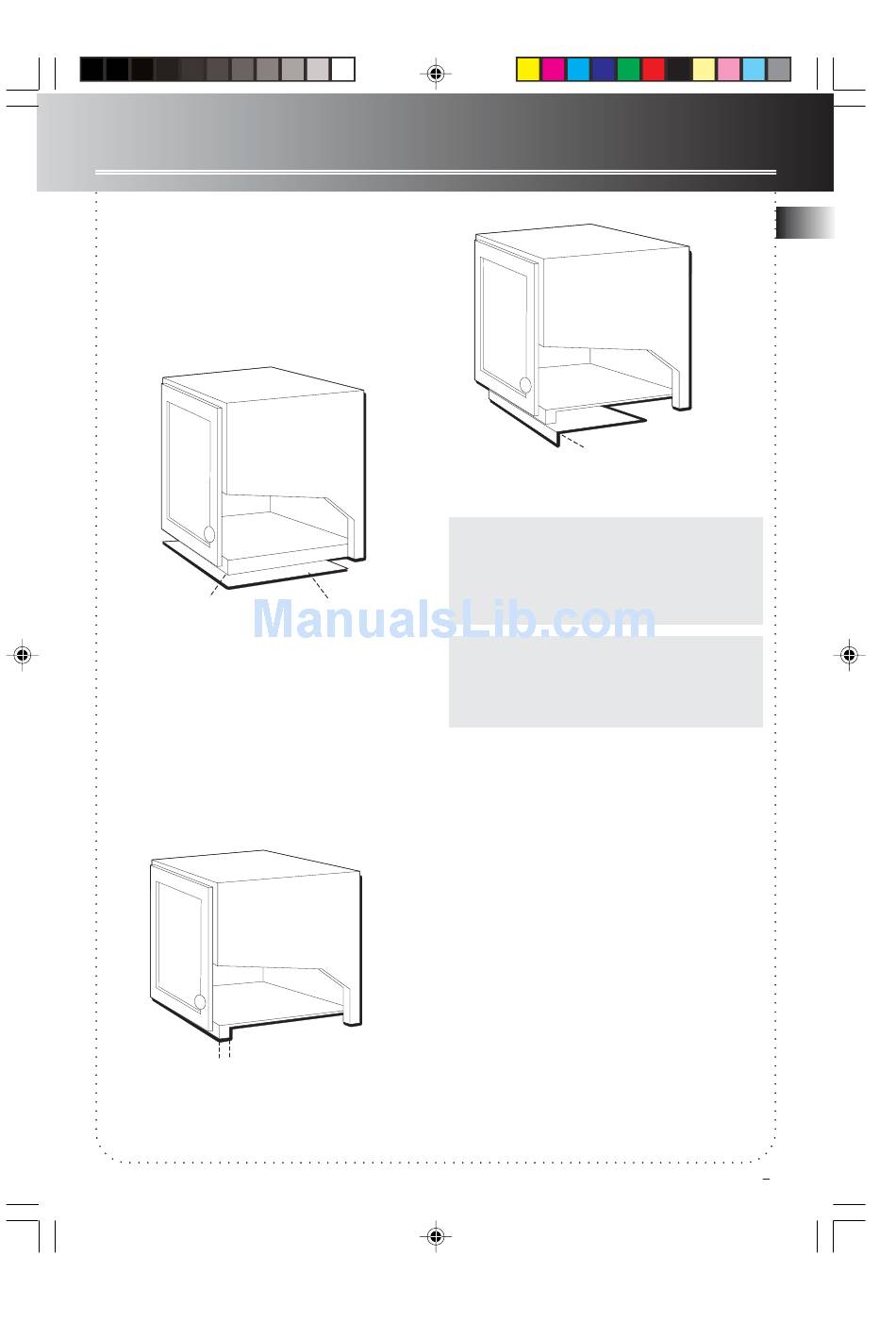

Mounting Procedure

1. If your cabinet does not have an
overhang:
(a) Position Template in desired location on
underside of cabinet, flush with front
edge.
(b) Then tape Template in place, and go to
Step 2 (Read "Caution").
FRONT EDGE
OF CABINET
If your cabinet has an overhang:
(a) Measure the thickness of the overhang.
(b) Fold front of Template downward along
the printed guideline that is closest to the
thickness of your cabinet.
(c)
Tape fold-down portion to backside of
overhang, Tape Template to cabinet
underside.
MEASURE THICKNESS OF
Untitled-2
MOUNTING
TEMPLATE
CABINET OVERHANG
4
FOLD TEMPLATE ON
NOTE: If your cabinet has glue blocks or
NOTE:
NOTE:
NOTE:
NOTE:
other obstructions, cut out corresponding
areas on the Template to clear them. Do
not cut out or cut through the screw holes
indicated on the Template.
CAUTION: It is recommended that
CAUTION:
CAUTION:
CAUTION:
CAUTION:
safety glasses be worn while drilling screw
holes to prevent the possibility of eye
injury.
2. Drill
1
/
-inch diameter holes through the
4
underside of the cabinet bottom shelf using
the 3 points marked on the Template.
Helpful Hints:
On wooden cabinets you may want to mark
and start the drill holes with a nail or an awl.
Be sure to hold the drill very firmly against the
cabinet to reduce "walking" of the drill bit
from the markings.
Use masking tape above the hole locations on
inside of wooden cabinet shelf to help reduce
splintering.
If installing the unit under a wood cabinet, you
may wish to countersink the drilled hole from
the INSIDE of the cabinet if a countersink
attachment for your drill is available. This will
eliminate the use of washers and allow the
screw heads to be flush with the floor of your
cabinet. If you cannot countersink the holes,
use the supplied washers.
3/5/03, 9:38 AM
EN
DOTTED LINE
2
