NuTone IS-515 Series Installation Instructions

5" Indoor Speaker
MODEL: IS-515 Series
5" Patio Speaker
MODEL: IS-519
For use with NuTone IM-5000 or IM-5006 Intercom Systems.
ROUGH-IN FRAME MOUNTING
The speakers are mounted to the IR-50 Rough-ln Frame.
New Construction
NOTE: Refer to the instructions packaged with the rough-in.
The Rough-ln Frame is mounted to a wall stud during rough-
in construction. The wiring is ran to the speaker location.
The speaker is mounted to the rough-in frame once the wall
is in place.
Existing Construction
NOTE: Refer to the instructions packaged with the
rough-in.
The Rough-ln Frame requires a cutout to the finished wall.
The Frame may be mounted either directly to a wall stud or
between the wall studs. The wiring is installed through the
existing walls.
WIRING
RATING: INPUT 19vDC, 40mA
OUTPUT 60mW

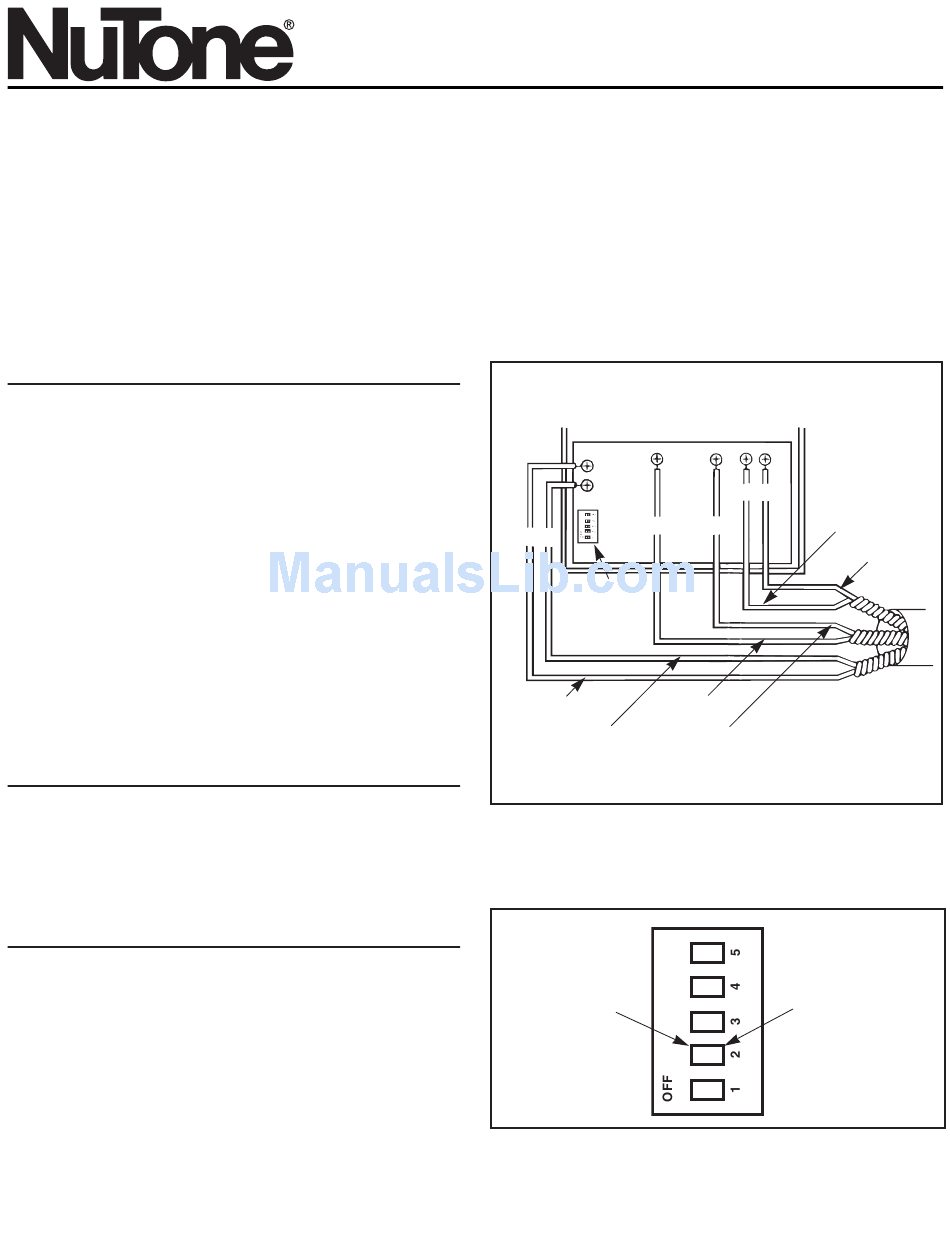

Refer to Figure 1. Connect the color-coded wires from the
Master Station to the matching terminal screws on the
speakers printed circuit board.
SETTING THE SELECTOR SWITCH
IMPORTANT: Be certain the system has been
disconnected at the main power source prior to setting
the selector switch. Powering the system up will allow
the station identification to be effective.
IMPORTANT: The Master Station has been preset as
Station #1. The remotes will be station 02 through 21 on the
IM-5000 master and 02 through 25 on the IM-5006 master.
Do not exceed 21 when using the IM-5000 or the IM-
5000/401T power transformer will be damaged.
1. Refer to Figure 2. Locate the Selector Switch on the
back of the remote control unit.
2. Refer to Figure 3. As indicated in Figure 3, set the
Selector Switch in the ON and OFF positions.
READ & SAVE THESE INSTRUCTIONS!
INSTALLATION INSTRUCTIONS
INTERCOM
DATA
SELECTOR
SWITCH
BLK/WHT ORN
BLK ORN/WHT
OFF
POSITION
AUDIO
RED
RED/WHT
FIGURE 1
ON
POSITION
FIGURE 2
