Summary of Contents for NuTone 801T

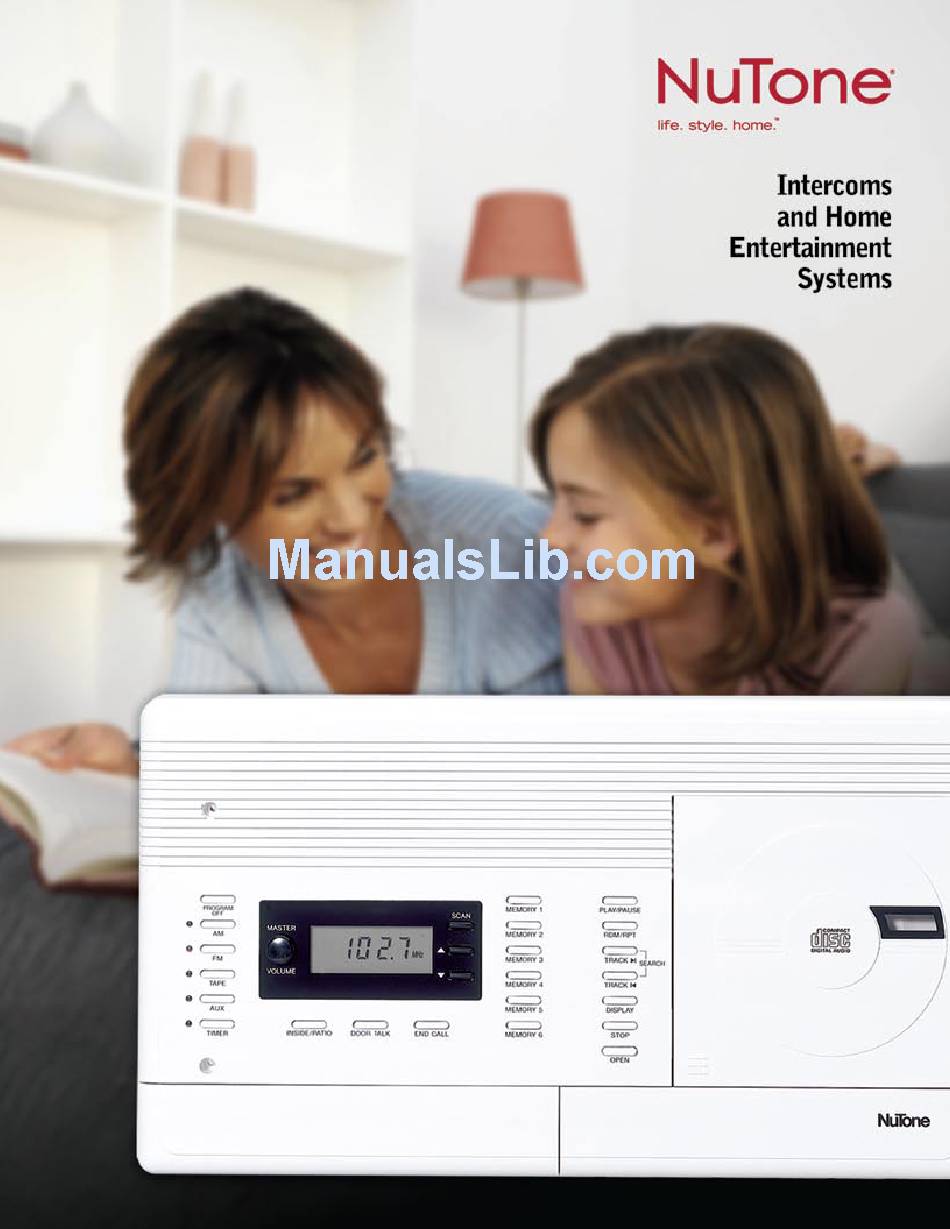

- Page 2 They are the easiest, most affordable way to build security, convenience and entertainment into your home. And with a variety of style and color options, NuTone ® has a system to complement the décor of any home.
- Page 3 Clearly a Great Choice in Music and Voice. IMA-4406 Intercom ‘Master’ Station Musical Interludes The IMA-4406 lets you entertain guests with your favorite CD, or listen to one of 12 preprogrammed radio stations as you move throughout the home. The built-in LCD display shows the time, radio station frequency and CD functions at the ‘Master’...
- Page 4 ® specifi ed wire is used in the installation of a NuTone ® Radio Intercom, the Warranty shall not be applicable to any defect or problem relating to the use of non-NuTone specifi ed wire. ® Installation Wire: NuTone ®...
- Page 5 Convenient and Simple to Operate. IMA-3303 Intercom ‘Master’ Station Broadcast Your Favorite Station The IMA-3303 becomes part of your home, filling it with great sounding music, or the crack of the bat as you listen to your favorite team’s broadcast. The built-in AM/FM radio has 12 memory channels which you can select from any remote speaker in the home.
- Page 6 ® specifi ed wire is used in the installation of a NuTone ® Radio Intercom, the Warranty shall not be applicable to any defect or problem relating to the use of non-NuTone specifi ed wire. ® Installation Wire: NuTone ®...
- Page 7 Use with ceiling or wall mounted speaker models IS-76, ISA-78 series, IS-9615, IS-100 and IS-900 series. (Use with NuTone intercoms only, one 25 ohm speaker per control. 2 watt maximum rating.) IS-9523 –...
- Page 8 Many of our door speakers have a built-in door chime pushbutton, so a separate button is not required. Each door speaker includes a 3-1/2" weather resistance speaker for intercom communications. These door speakers are designed to work with NuTone ® models IM-5000, IMA-4406, IMA-3303 and IMA-516.
- Page 9 Use a separate intercom speaker and intercom remote control to gain the advantage of a smaller intercom control at eye level. Place the speaker high on the wall or on the ceiling. All speakers are designed to work with any NuTone ®...
- Page 10 Intercom Accessories Never miss a call when you add a NuTone Chime Module option. ® Have you ever missed a guest because you were out of hearing range of your door chime? When you add a chime module to your intercom, all the remote stations and controls become your chime! This easy to add option is available on models IM-5000, IMA-4406 and IMA-3303.
- Page 11 IM-5000 Selective Call Intercom The Right Connection at Home or in the Small Business Environment. Keeping In Touch The IM-5000 intercom system allows you to ‘keep in touch’ with your family anywhere in your home. Use the ‘All Call’ intercom function to talk to all speakers at the same time from any speaker in your home.
-
Page 12: Remote Stations
® specifi ed wire is used in the installation of a NuTone ® Radio Intercom, the Warranty shall not be applicable to any defect or problem relating to the use of non-NuTone specifi ed wire. ® Installation Wire: NuTone ®... -
Page 13: Intercom System
18/2: (S-143-500). For installations where UL listed wire is specifi ed, add ‘UL’ • RF frequencies are 200 KHz, 230 KHz, 260 KHz and 290 KHz suffi x to model number when ordering. IMA-516 ‘Master’ station powered by a 16 volt, 30 VA transformer NuTone ® model 301T. - Page 14 • Cutout: 14-1/2" w x 7" h • Includes AM/FM antenna and two 301T transformers IR-105* • Metal housing for IMA-4406 Voice Music Intercom • Cutout: 14-1/2" w x 9" h • Includes AM/FM antenna and two 801T transformers IR-91 IR-104 IR-105 •...
- Page 15 1-1/4" 4-7/8" 1-5/8" – Installation Wire: NuTone ® twisted-pair 18/2 cable: 500 ft. (S-143-500). For installations where UL listed wire is specifi ed, add ‘UL’ suffi x to model number when ordering. **Add suffi x to specify fi nish – “BA” (Brass) or “SA” (Silver).
- Page 16 Wiring Diagrams IMA-4406 Master Station IMA-4406 Basic 3 Remote Station System Quantity Model Description IMA-4406 ‘Master’ Station IR-105 ‘Master’ Rough-In ISA-445 Remote Stations IR-50 Remote Station Rough-Ins IS-69 Door Speaker IR-6 Door Speaker Rough-In IW-6-200UL Intercom Wire IW-2-100UL Door Speaker Cable Components must be ordered separately.
- Page 17 Wiring Diagrams IMA-3303 Master Station IMA-3303 Basic 3 Remote Station System Quantity Model Description IMA-3303 ‘Master’ Station IR-104 ‘Master’ Rough-In ISA-335 Remote Stations IR-50 Remote Station Rough-Ins IS-67 Door Speaker IR-6 Door Speaker Rough-In IW-3-200UL Intercom Wire IW-2-100UL Door Speaker Cable Can be ordered as a kit or as individual models.
- Page 18 Index Radio Intercoms and Intercoms Model Page Model Page IA-15 IMA-4406 4 – 7 IA-28 IM-5000 20 – 23 IA-29 IMA-516 IA-30WH IR-3 IA-51 IR-6 IA-55 IR-9 IA-60 IR-30K IA-70 IR-50 IA-83 IR-55 IA-119WH IR-70 IAA-440 IR-80 ICA-331WH IR-91 ICA-331WHW IR-104 ICA-441WH IR-104K...
- Page 19 Indoor Air Quality (IAQ) Fresh Air Systems, built-in heaters, whole-house fans, attic ventilators, paddle fans and trash compactors. Broan-NuTone LLC, 926 W. State Street, Hartford, WI 53027 • 888-336-3948 ©2008 Broan-NuTone, LLC • Printed in USA • 4/08 99850686J NuTone…...
