5" patio speaker

Advertisement

5" Patio Speaker
MODEL: IS-419 SERIES
Recess-mounted using NuTone Model: IR-50 Rough-In
Frame.
When an enclosed rough-in is desired,
use NuTone Model: IR-55 Rough-In Frame.
Rough-In Frame(s) are sold separately.

ROUGH-IN FRAME MOUNTING

The speaker is mounted to the IR-50 or IR-55 Rough-In
Frame.

NEW CONSTRUCTION

NOTE: Refer to the instructions packaged with the
rough-in.
The rough-in frame is mounted to a wall stud during
rough-in construction. The wiring is ran from the master unit
to the speaker location. The speaker is then mounted to the
rough-in frame once the wall is in place.

EXISTING CONSTRUCTION

NOTE: Refer to the instructions packaged with the
rough-in.
The rough-in frame requires a cutout to the finished wall.
The frame may be mounted either directly to a wall stud or
between the wall studs. The wiring is installed through the
existing wall.

WIRING CONNECTIONS

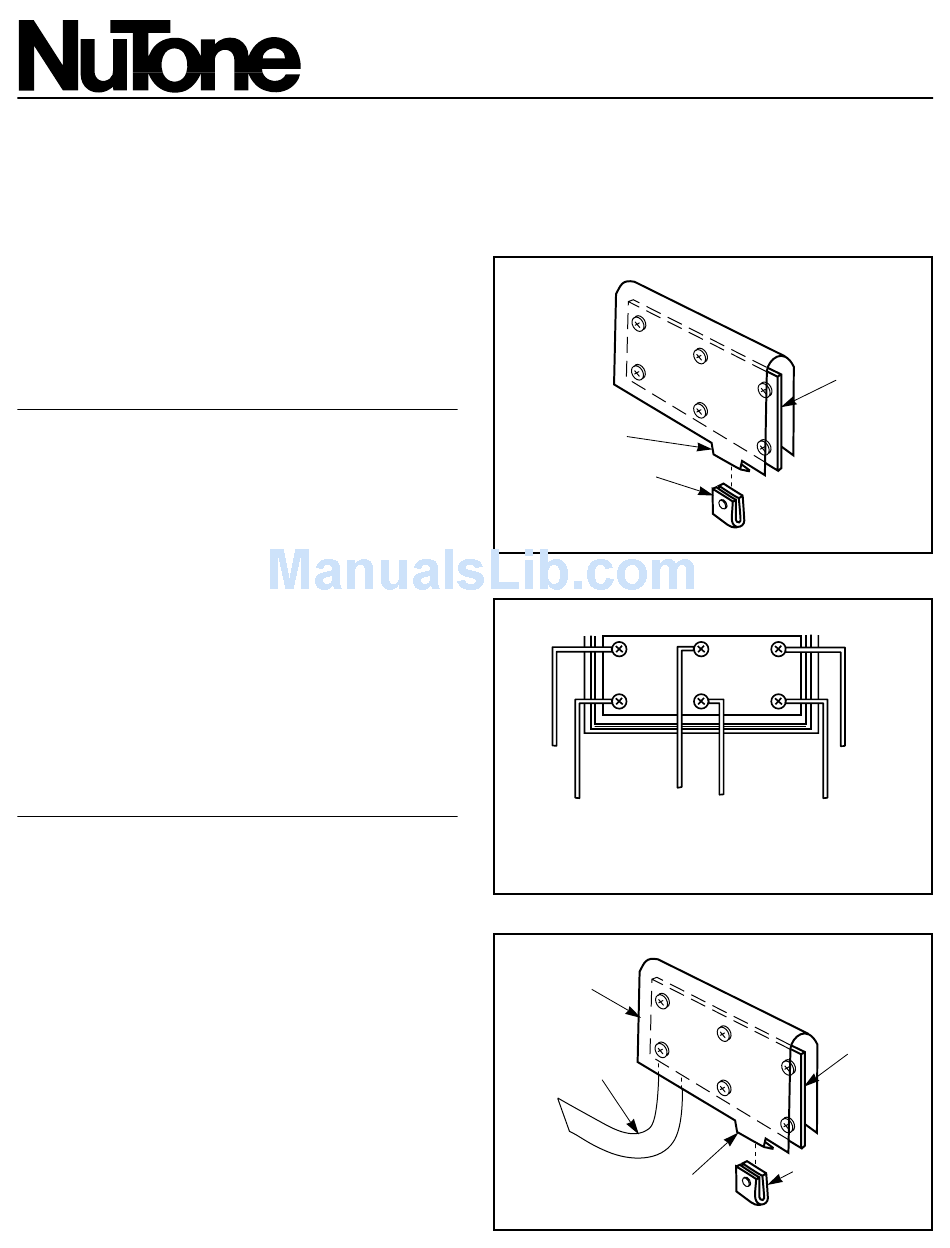

1. Refer to Figure 1. Remove plastic clip that holds the
rubber gasket to the printed circuit board.
2. Refer to Figure 2. As illustrated, connect wires from the
master unit to the six (6) screw terminals. Red wire to the
terminal marked red, red/white wire to the terminal marked
red/white, etc.
3. Refer to Figure 3. Fold rubber gasket over installed wiring.
Hold gasket tab to printed circuit board by folding tab over
and sliding the removed plastic clip over tab and printed
circuit board.
PLEASE SEE OTHER SIDE
®
READ & SAVE THESE INSTRUCTIONS!
INSTALLATION INSTRUCTIONS
GASKET TAB
PLASTIC
CLIP
RED
BLACK BLACK/WHITE
RED/WHITE
RUBBER
GASKET
IW-6 CABLE
GASKET TAB
IS-419
PRINTED
CIRCUIT
BOARD
FIGURE 1
ORANGE
ORANGE/WHITE
FIGURE 2
PRINTED
CIRCUIT
BOARD
PLASTIC CLIP
FIGURE 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IS-419 SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NuTone IS-419 SERIES

  • Page 1 ® READ & SAVE THESE INSTRUCTIONS! INSTALLATION INSTRUCTIONS 5" Patio Speaker MODEL: IS-419 SERIES • Recess-mounted using NuTone Model: IR-50 Rough-In Frame. • When an enclosed rough-in is desired, use NuTone Model: IR-55 Rough-In Frame. IS-419 • Rough-In Frame(s) are sold separately.
  • Page 2 2. IMPORTANT: This Patio Speaker must be caulked with a IR-50 waterproofing compound (Silicone Rubber, RTV or equivalent - not supplied by NuTone). Caulk across the top and both sides of the unit only; the bottom of the unit should not be caulked.
