GATEWAY 9550 COMPLETE DISASSEMBLY GUIDE

Remove Battery, CD ROM, Floppy Drive.

●

Remove hard drive assembly under Floppy Drive Unit.

●

Remove Memory Cover and Memory

●

Remove Wireless Cover & Wireless Card.

●

Remove Power button plate by gently prying up from the right hand side.

●

Remove Keyboard ( 2 Screws, release tab on left hand side). Release ribbon cable.

●

Remove Display. Gently pry up hinge covers.

●

Remove metal plate over display cable ( 2 screws, long on left / short on right).

●

Detach Display Cable.

●

Remove Display Mount Screws (4 screws).

●

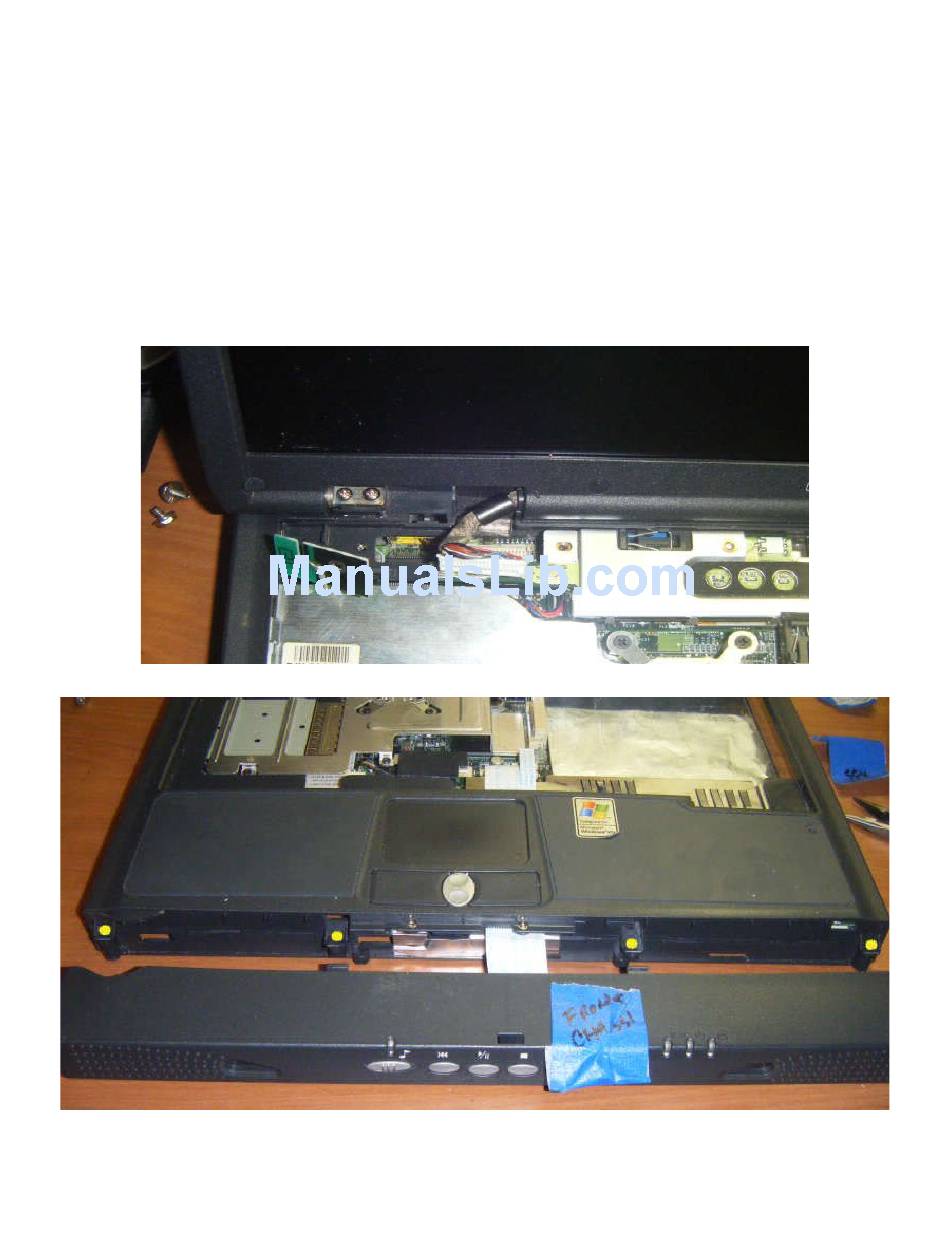

Remove Front Speaker Assembly (4 Screws on bottom front). Leave ribbon cable

●

attached.

Remove Screws (4) from front of Main Chassis exposed after the Speaker Assembly is

●

removed.

Table of Contents

Need help?

Do you have a question about the 9550 and is the answer not in the manual?

Page 1 GATEWAY 9550 COMPLETE DISASSEMBLY GUIDE Remove Battery, CD ROM, Floppy Drive. ● Remove hard drive assembly under Floppy Drive Unit. ● Remove Memory Cover and Memory ● Remove Wireless Cover & Wireless Card. ● Remove Power button plate by gently prying up from the right hand side.
Page 2 GATEWAY 9550 COMPLETE DISASSEMBLY GUIDE Remove (11) Screws from Bottom of Chassis. + (4) Short Screws parallel to rear feet. ● On top of Chassis, Remove (1) screw in front of Touchpad, (1 black) screw near center ● of powerboard, (1 silver) screw at the back of powerboard.
Page 3 GATEWAY 9550 COMPLETE DISASSEMBLY GUIDE...
Page 4 GATEWAY 9550 COMPLETE DISASSEMBLY GUIDE Remove (2) screws adjacent to Parallel port. (Hole 4, 5)(Holes are labeled on mobo). ● Remove (5) HEX Mount posts (Hole 3, 8, 10, 12, 13). (DO NOT REMOVE ROUND ● POSTS ADJACENT TO PROCESSOR).
