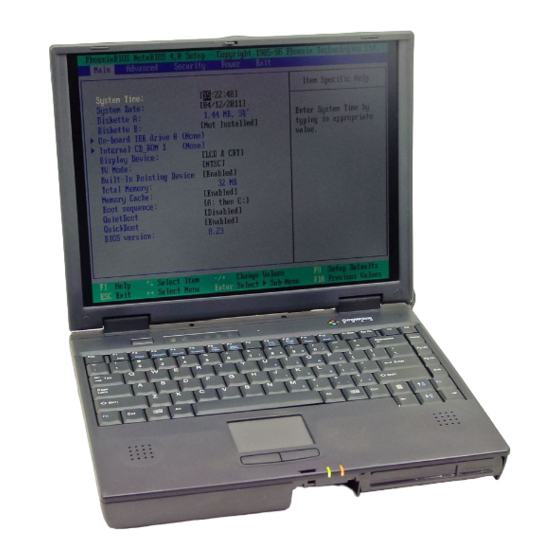

Specifications for Gateway Solo
9100 Multimedia Notebook
Specifications are subject to change without notice or obligation.

Processor

300PE/333/366 MHz Mobile Pentium® II processor with
256K on-die L2 cache
Core logic: Intel 440BX
System clock frequency: 66 MHz
BIOS: Phoenix Plug and Play NoteBIOS with DMI 2.0
support, 256K Flash ROM

System

Main memory: Three SO-DIMM sockets, expandable to

Memory

192 MB. Accepts 16, 32, or 64 MB SDRAM modules.
One, two, or three modules of these capacities can be
installed.

LCD Panel

Size: 14.1" TFT. Resolution: XGA (1024 X 768)
Color Depth: 262,144 colors (18-bit) at XGA.

Video

Video subsystem: Trident Cyber9397
Performance 2D/3D Flat Panel Accelerator, 32-bit bus
mastering PCI bus (Rev. 2.1 compliant), 64-bit memory
interface
Internal hardware DVD decoder subsystem: C-Cube
Microsystems Ziva-DS, MPEG-2 video decoding, Dolby
Digital (AC-3), MPEG, and LPCM audio decoding, CSS
authentication and descrambling, subpicture decoding,
and on-screen display. Supports DVD, VideoCD, CD-I,
and CD-DA formats.
™
™
High

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solo 9100 and is the answer not in the manual?

Questions and answers

Related Manuals for Gateway Solo 9100

Summary of Contents for Gateway Solo 9100

  • Page 1 Specifications for Gateway Solo 9100 Multimedia Notebook Specifications are subject to change without notice or obligation. Processor 300PE/333/366 MHz Mobile Pentium® II processor with 256K on-die L2 cache Core logic: Intel 440BX System clock frequency: 66 MHz BIOS: Phoenix Plug and Play NoteBIOS with DMI 2.0...
  • Page 2 Video External video: Supports simultaneous (cont.) LCD/External monitor. Variable sync for compatibility with a wide range of monitors, projector, and LCD projection panels Composite video output: Supports NTSC and PAL standards for composite video connection to standard TV monitors, three line anti-flicker and scaling logic. Composite video input: Supports NTSC and PAL standards for composite video connection from standard NTSC/PAL devices.
  • Page 3 Yamaha YM715 and 704B: 16 bit stereo audio, 20 voice, four-operator FM music synthesis; full-duplex operation with two DMA channels, hardware wavetable synthesis DVD audio: Dolby Digital certified, two channel playback Specifications for Gateway Solo™ 9100 Multimedia Notebook ™ touch pad...
  • Page 4 Sound Volume control: Rotary hardware control on left side of (cont.) unit. Rotating towards rear increases volume of internal speakers and speaker out connector. Speakers: Stereo speakers built into palm-rest Microphone: Omni-directional microphone in middle of plastic panel in front of keyboard Connectors: Microphone, line in, line out, headphone out MIDI in/out: Via game/MIDI port Physical...
