Glass Cooktop; Porcelain Cooktop - GE JGP336 Installation Instructions Manual

30" sealed gas cooktop
Hide thumbs

Advertisement

Table of Contents
G
Making the L.P. Conversion
Changing the Cooktop
G3

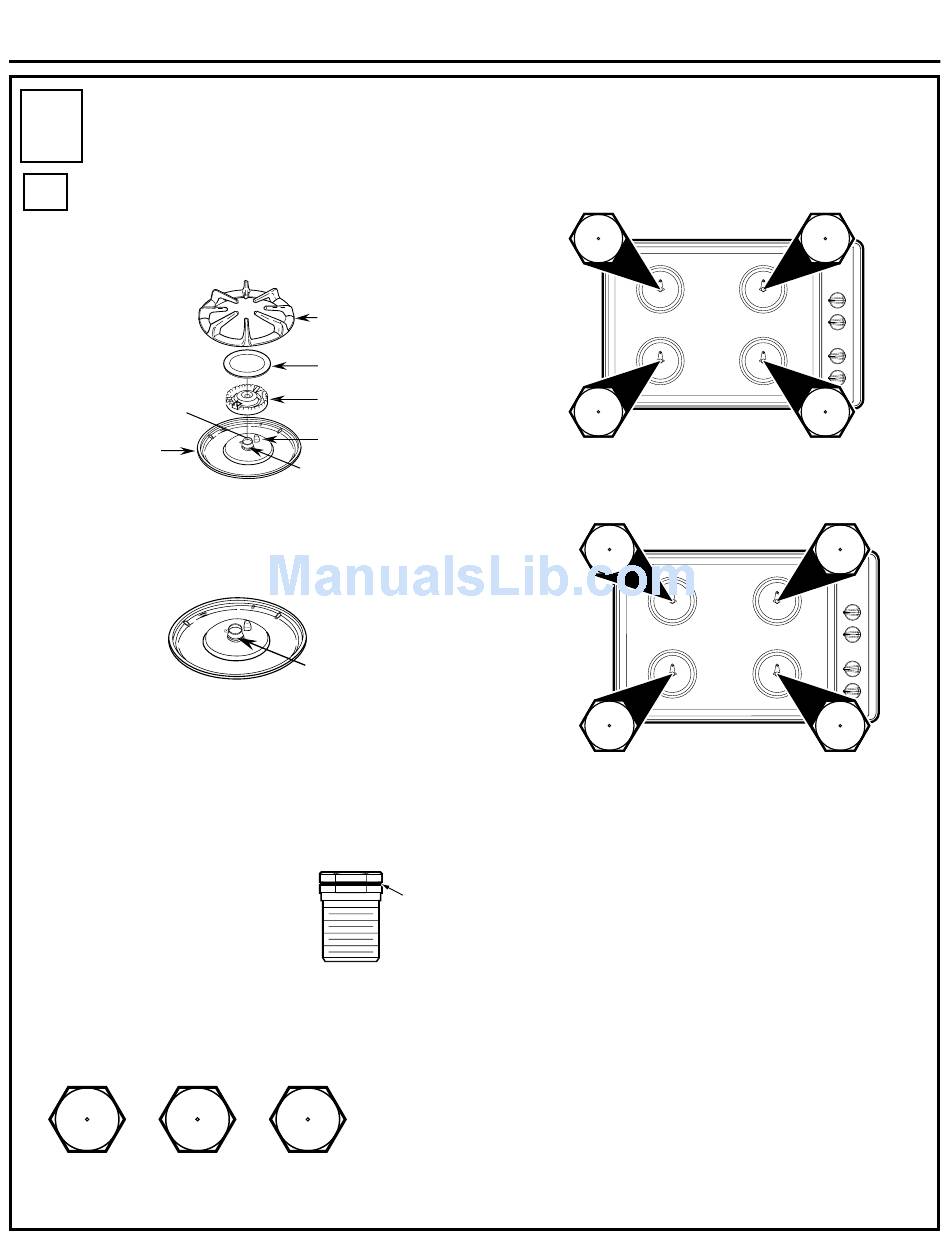

Burner Orifices:
a. Remove the top grates, burner caps and burner
heads.
MIXER TUBE
BURNER
BOWL
b. Using a 7mm or 9/32" nut driver, remove the
top burner orifices. These may be accessed
through the burner air/gas mixer tube
(Chimney).
NOTE: The orifices have a spring loaded
retaining ring around the hex head to hold
the orifice in the nut driver during
installation and removal. A slight amount
of force is required to push the nut driver
down over the ring.
c. Locate the LP/Propane
orifices shipped inside
the literature package.
They will have a digit
number and the letter "L"
on the side. (Important:
Save the orifices removed
from the appliance for future use.)
Each orifice will show a series of engraved
marks, (l,II or III), located on the top.
I
II
These marks denote the precise location
of each orifice to the cooktop burner.
LP Conversion
BURNER GRATE
BURNER CAP
BURNER HEAD
SPARK IGNITER
MIXER TUBE
(CHIMNEY)
MIXER TUBE (CHIMNEY)
RETAINER
RING
III

Glass Cooktop

II
II

Porcelain Cooktop

II
II
d. Install the LP/Propane orifices in their
precise locations as noted in the illustrations
above.
e. Return the natural orifices to the bracket and
reattach the bracket and the instruction
sheet to the pressure regulator using the
screw previously removed.
f. Replace the burner heads, caps and top
grates.
14
cont.
I
lll
I
ll
continued on following page
