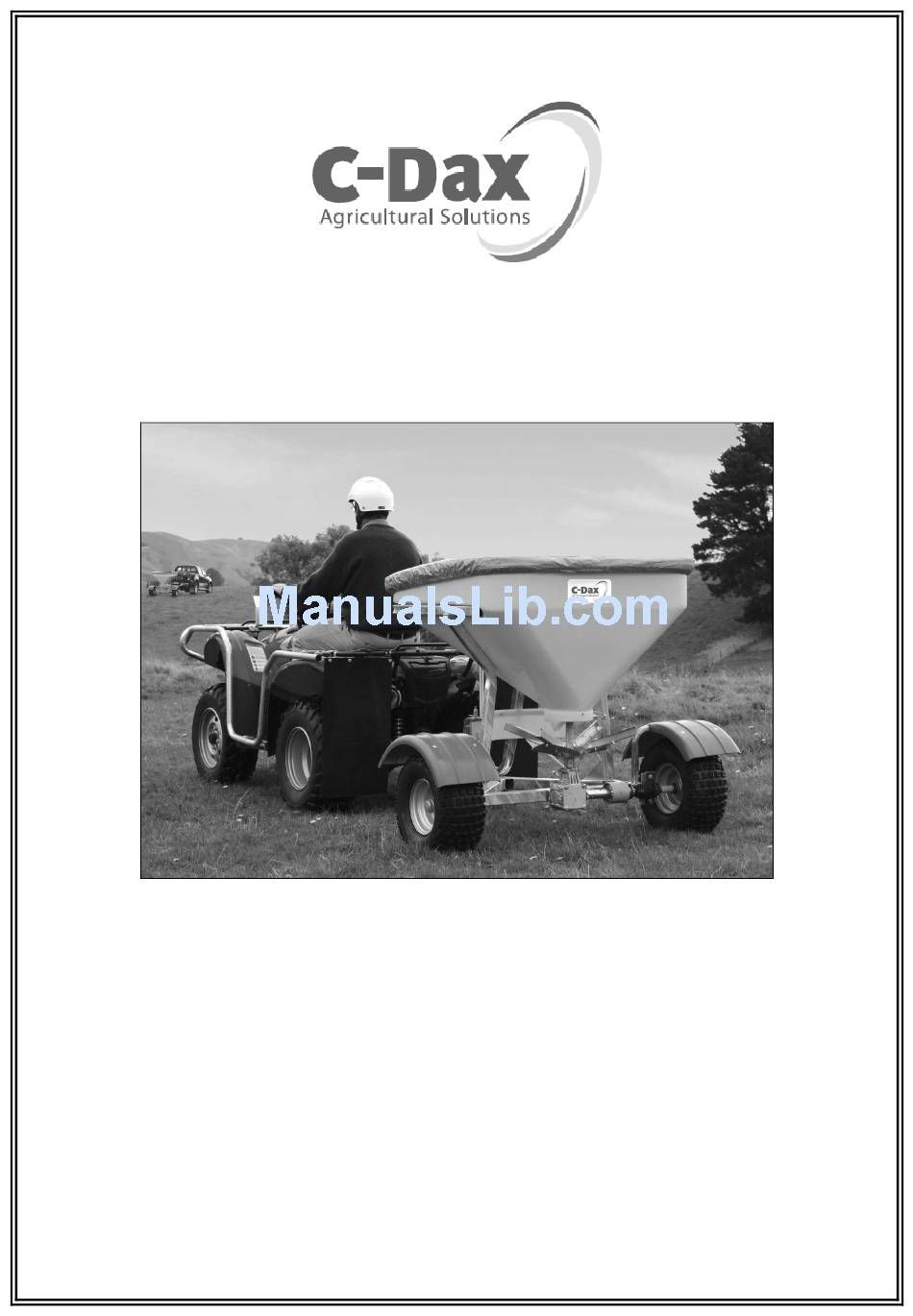

- Page 1 OWNER’S MANUAL FOR THE GROUND DRIVEN SPREADER C-DIT300 C-Dax Ltd PO Box 1010, 145 Harts Road Tiritea, Palmerston North Ph:06 354 6060 Fax:06 355 3199 E-Mail: sales@c-dax.co.nz www.c-dax.co.nz...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS CDIT300 AN IMPORTANT MESSAGE FOR OWNERS & OPERATORS OF C-Dax ATTACHMENTS/ACCESSORIES Be warned of the dangers of loading your ATV or other vehicle in excess of its carrying capacity. It is important to understand that any loads or attachments whether fastened to or placed on a vehicle or ATV will alter the stability or handling characteristics of that vehicle or ATV. - Page 3 SAFETY PRECAUTIONS Before attempting to install or operate the equipment, read and understand the manual thoroughly. Failure to comply with this instruction constitutes improper use and will invalidate the warranty. Throughout this manual there are highlighted text boxes containing warnings, cautions and notes. Warnings are mandatory instructions to prevent serious injury or permanent damage.
-
Page 4: Table Of Contents
C-Dax CDIT300 OWNER’S MANUAL (Pt.No.2400-5600 Issue 18, October 2015) TABLE OF CONTENTS Safety Precautions Table of Contents Introduction Description Specifications Order Information Warranty Liability Operation Calibration Magnesium Oxide Operating the Spreader Adjusting the Spread Pattern Fitting the Rain Cover Maintenance... -
Page 5: Introduction

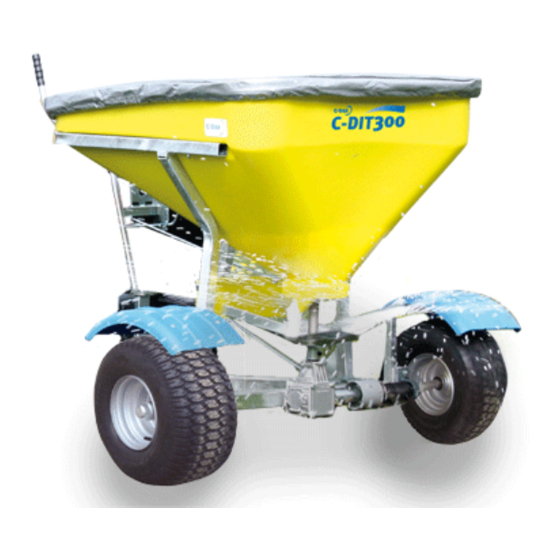

INTRODUCTION C-Dax thanks you for your purchase of an advanced spreader from C-Dax Ltd. C-Dax Ltd is committed to providing you, the farmer, with quality applicating systems. DESCRIPTION The C-Dax C-DIT300 is a ground-driven spreader designed for application of pelleted fertilisers. It can also be used for application of other products such as grass seed and magnesium oxide. -
Page 6: Warranty
U.K.) subject to the terms set out below. C-Dax will at its option repair or replace the defective equipment (or part of the equipment) or notify the retailer of the equipment to refund the purchase price for such defective equipment to you in the event of a breach of this warranty, subject to the terms set out below. -
Page 7: Operation
Where C-Dax elects to repair or replace the equipment it will use reasonable endeavours to do so as soon as practicable but will not be liable for any delay in doing so. -
Page 8: Calibration
CALIBRATION 1. Ensure the control handle is fully back (clutch disengaged, shutter closed). 2. To calibrate your spreader, place a measured amount of product (10 Kg) in the hopper. 3. Set the Shutter Stop Lever to the position (1-9) indicated in the Calibration Guides below. Hole position 9 (shutter fully open) is denoted by two holes vertically one above the other. -
Page 9: Operating The Spreader
OPERATING THE SPREADER When the spreader has been correctly calibrated, the hopper may be filled to the required level and spreading commenced. To reduce agitator damage to product and to ensure that product is not forced past the agitator shaft when towing the spreader to the area to be treated, the drive to the gearbox should be disconnected by ensuring the control lever is in the disengage position (fully back). -
Page 10: Maintenance
MAINTENANCE The following maintenance actions are mandatory for reliable use of the spreader. Before Use Check the tyre pressures and charge with air as required. The correct pressure is 12 psi. (80 Kpa) Disengage the clutch by ensuring the control lever is fully back then turn the spinner by hand to ensure that it is free to turn without interference. -
Page 11: Parts Diagram
PARTS DIAGRAM... -
Page 12: Parts List
PARTS LIST Item Part NO Description 1036-8240 Agitator-Spreader-CDIT300/400-In-Ex300/400-SS 1110-2310 Ball-End-Internal Thread-M10-Zinc Plated 1140-1200 Bearing-Ball-Pillow Block-Drive Axle-Spreaders 1140-4000 Bearing-Housing-Pillow Block-Drive Axle-Spreaders 1280-1600 Boot-Clutch-Convoluted-CDIT300/400-Rubber 1300-3010 Bracket-Clutch Engager-CDIT300/400GT-ZP 1300-6800 Bracket-Mudguard-CDIT300/400/MM165-LH-GL 1300-6801 Bracket-Mudguard-CDIT300/400/MM165-RH-GL 2100-2300 Clutch-Engager-CDIT400-ZP 2100-6000 Clutch-Pin Engager-CDIT300/400-ZP 2150-0025 Collar-Shaft-ID25-ZP 2250-1600 Cover-Clutch-CDIT300/400-OD 90x92 Long-Grey-PVC 2250-4100 Cover-Hopper-Silver Fabric-Spreader CDIT300 2250-7920... - Page 13 3500-5600 Frame-Spreader-CDIT300GT-GL 3800-1000 Gearbox-Ferroni-RV10-Ratio 1 to 2.78 3865-3800 Grip-Handle-7/8"-PVC-Black-Plastic 3990-3900 Guide-Handle-CDIT300/400GT-ZP 4050-1500 Handle-CDIT300/400GT-ZP 4050-4250 Handle-Indicator-CDIT400GT-ZP 5050-1600 Linkage-Clutch-CDIT300/400GT-ZP 5050-7960 Linkage-Shutter-CDIT300GT-ZP 5200-6300 Machined-Key-8x8-Ground Drive Spreaders 5200-6505 Machined-Shaft-Axle-CDIT300GT-Stainless Steel 5245-3900 Mount-Handle-CDIT300/400GT-ZP 5270-0003 Nipple-Grease-Straight-Short-M6-ZP 6500-7770 Profiled-Shutter-CDIT300/400 6500-9000 Profiled-Washer-Spinner Shaft-34.9x67x2mm-Stainless 304 7500-2140 Rota-Hopper-Spreader-CDIT300 -Yellow-MDPE 7500-2590 Rota-Mudguard-Blue-MDPE-1/4 Circle 7500-2830 Rota-Spout-Spreader-CDIT400GT-Yellow-MDPE...
