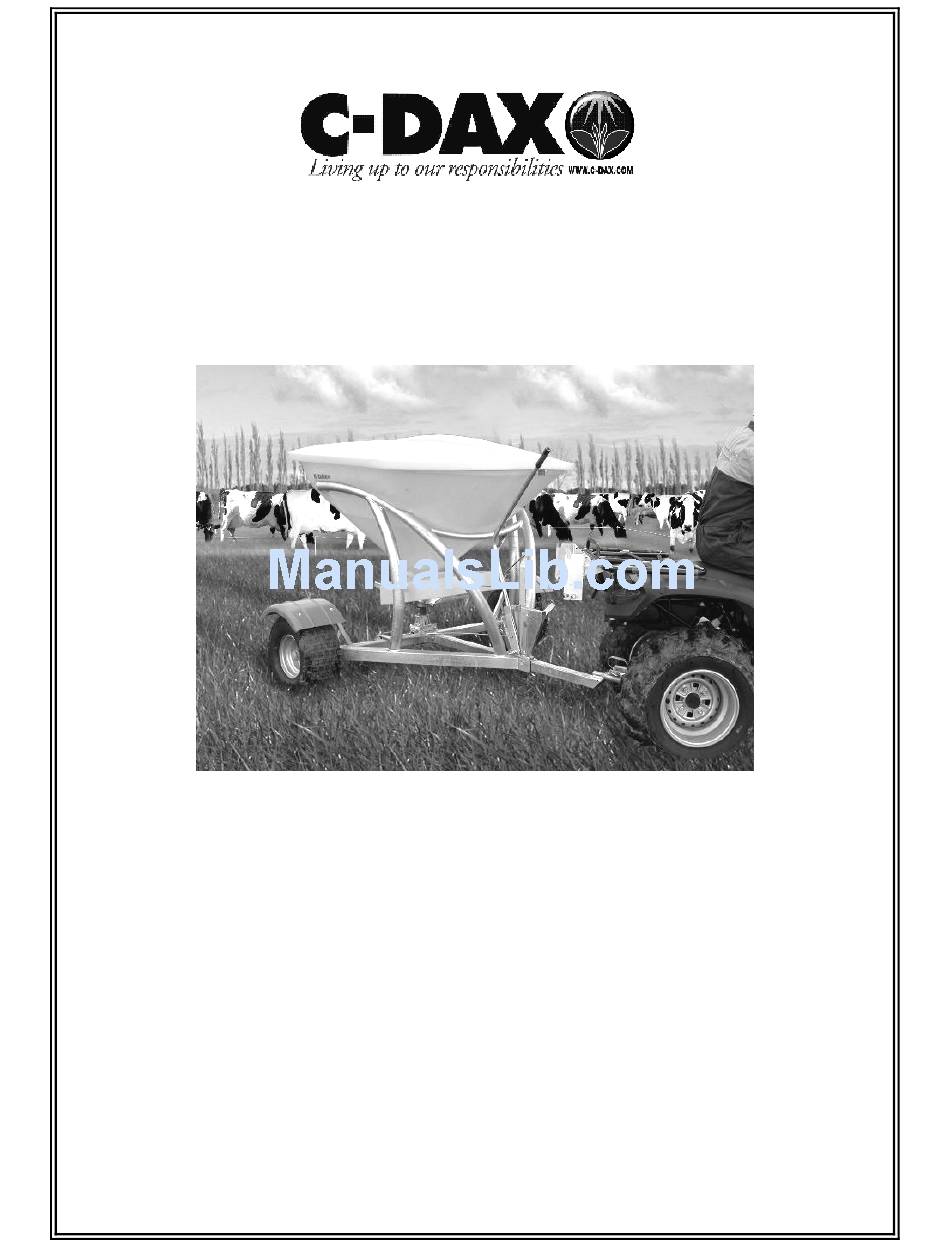

- Page 1 OWNER’S MANUAL FOR THE GROUND DRIVEN SPREADER C-DIT400GT C-Dax Systems Ltd PO Box 1010, 145 Harts Road Tiritea, Palmerston North Ph:06 354 6060 Fax:06 355 3199 E-Mail: sales@c-dax.co.nz www.c-dax.com...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS CDIT400GT AN IMPORTANT MESSAGE FOR OWNERS & OPERATORS OF C-DAX ATTACHMENTS/ACCESSORIES Be warned of the dangers of loading your ATV or other vehicle in excess of its carrying capacity. It is important to understand that any loads or attachments whether fastened to or placed on a vehicle or ATV will alter the stability or handling characteristics of that vehicle or ATV. - Page 3 SAFETY PRECAUTIONS Before attempting to install or operate the equipment, read and understand the manual thoroughly. Failure to comply with this instruction constitutes improper use and will invalidate the warranty. Throughout this manual there are highlighted text boxes containing warnings, cautions and notes. Warnings are mandatory instructions to prevent serious injury or permanent damage.
-
Page 4: Table Of Contents
C-DAX CDIT400GT OWNER’S MANUAL (Pt.No.90068 Issue 2 Dated 02 May 2008) TABLE OF CONTENTS Safety Precautions Table of Contents Introduction Description Specifications Order Information Warranty Liability Operation Calibration Magnesium Oxide Operating the Spreader Adjusting the Spread Pattern Fitting the Cover... -
Page 5: Introduction
P/N 43803 WARRANTY C-DAX Systems LTD warrants to the original purchaser that the equipment is sold free from defects in materials and workmanship for a period of 12 months from date of retail sale (6 Months from date of retail sale for all equipment sold in the U.K.). -
Page 6: Liability
All goods returned to C-DAX Systems are freight paid by the sender and if subject to a warranty claim, must be accompanied by a completed warranty claim form. Warranty claim forms are available from C-DAX dealers. -
Page 7: Operation
OPERATION The product to be spread is placed in the hopper. When the spreader is towed forward, the right hand wheel drives through the lever operated mechanical clutch and gearbox to turn the spinner in a clockwise direction. When the control handle is in the disengage position (fully back) the clutch is disengaged and the shutter is closed. -
Page 8: Calibration
CALIBRATION 1. Ensure the control handle is fully back (clutch disengaged, shutter closed). 2. To calibrate your spreader, place a measured amount of product (10 Kg) in the hopper. 3. Set the Shutter Stop Lever to the position (1-9) indicated in the Calibration Guides below. 4. -
Page 9: Operating The Spreader
OPERATING THE SPREADER When the spreader has been correctly calibrated, the hopper may be filled to the required level and spreading commenced. To reduce agitator damage to product and to ensure that product is not forced past the agitator shaft when towing the spreader to the area to be treated, the drive to the gearbox should be disconnected by ensuring the control lever is in the disengage position (fully back). -
Page 10: Maintenance
MAINTENANCE The following maintenance actions are mandatory for reliable use of the spreader. Before Use Check the tyre pressures and charge with air as required. The correct pressure is 15PSI (100Kpa). Disengage the clutch by ensuring the control lever is fully back then turn the spinner by hand to ensure that it is free to turn without interference. -
