Attaching the Stand
• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.
CAUTION
• Attach the stand in the correct direction.
• Do not remove the stand from the TV unless using an optional wall mount bracket to mount it.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

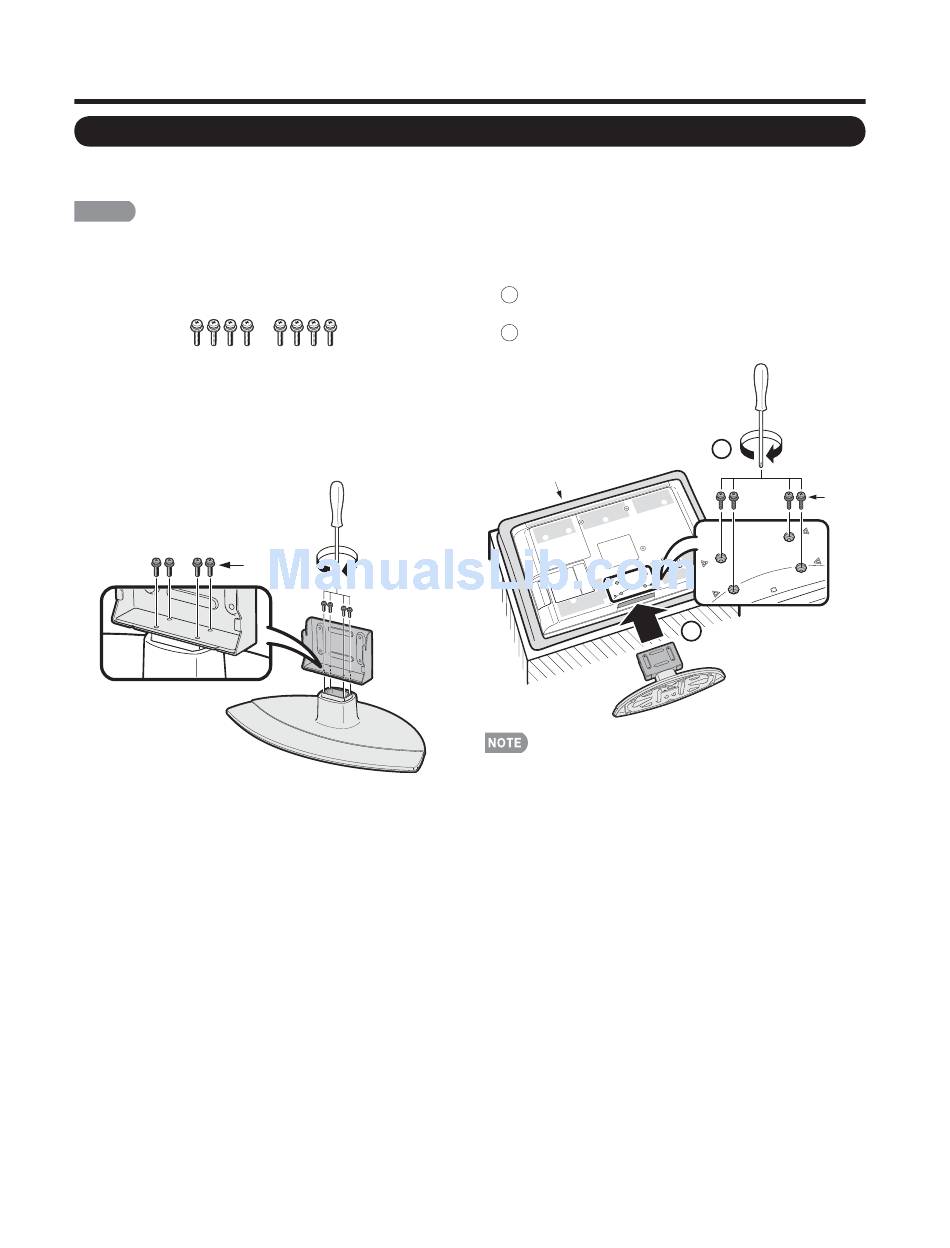

1
Confirm that there are 8 screws supplied with the
stand unit.
2
Attach the supporting post for the stand unit onto
the base using the box for the stand unit as shown
below.
• The supporting post attaches to the base at an off-centered
location on the base. Be sure to attach the supporting post in
the direction indicated below and attach the stand to the TV
with the wider side of the base facing forward.
Screws
3
Insert the stand into the openings on the bottom
1
of the TV.
Insert and tighten the 4 screws into the 4 holes
2
on the rear of the TV.
Soft cushion
• To detach the stand, perform the steps in reverse order.
2 – 3
2
Screws
1
