Sharp LC-40E67U Service Manual page 16

LC-40E67U/LC-40E77U

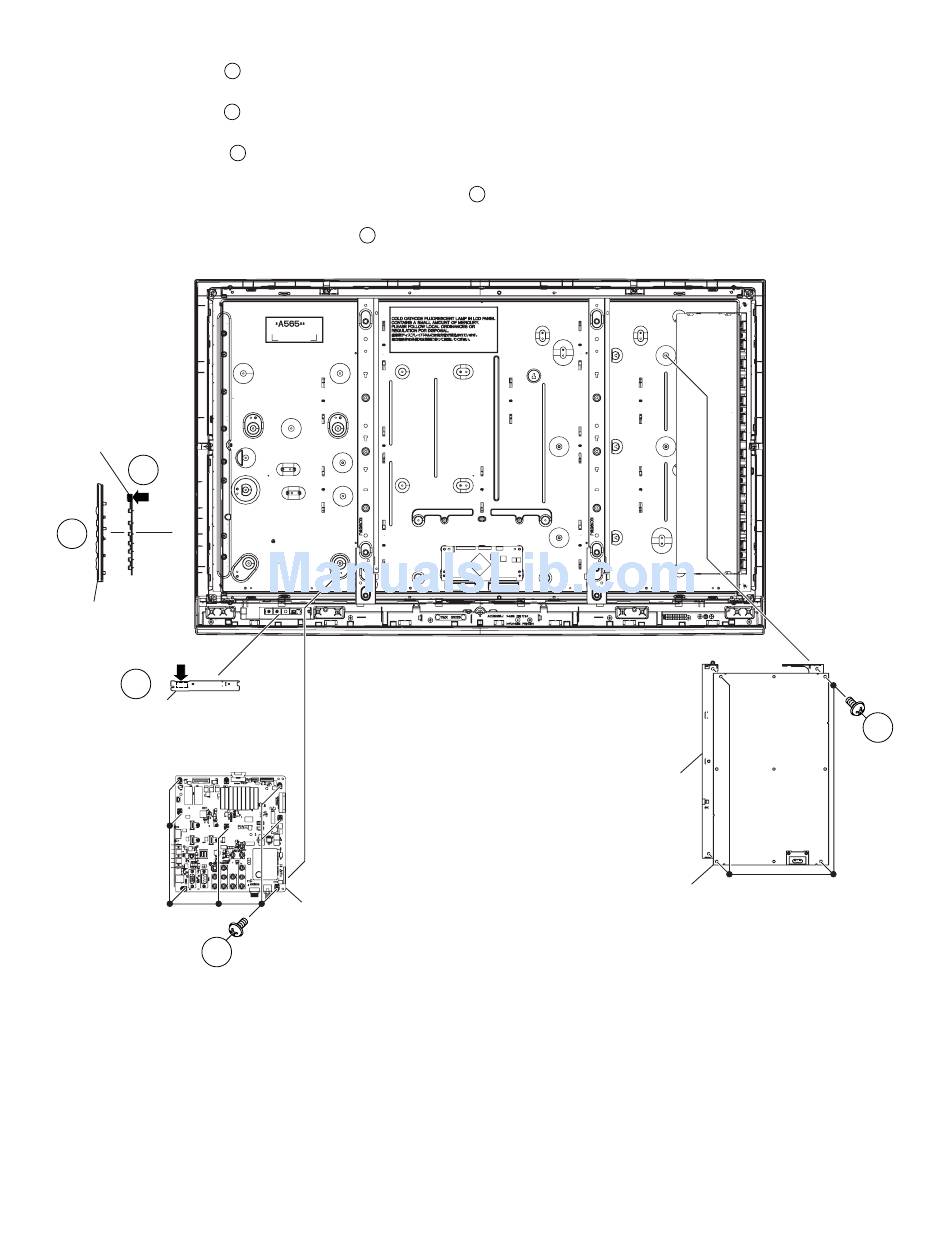

4. Removing of and POWER Unit, MAIN Unit, KEY Unit Ass'y and R/C, LED Unit.
1. Remove the 4 lock screws
2. Remove the 8 lock screws
3. Detacht the KEY Unit Ass'y
4. Detach the KEY Unit from Operation Button and disconnect KM wire
5. Detach the R/C LED Unit and disconnect RA wire
KEY Unit
4
KM
3
Operation
Button
RA
5
R/C, LED Unit
2
1 and detach the POWER Unit, POWER PWB Holder.
2
and detach the MAIN Unit.
3
.
5
.
MAIN Unit
4
.
Power PWB Holder
POWER Unit
4 – 4
