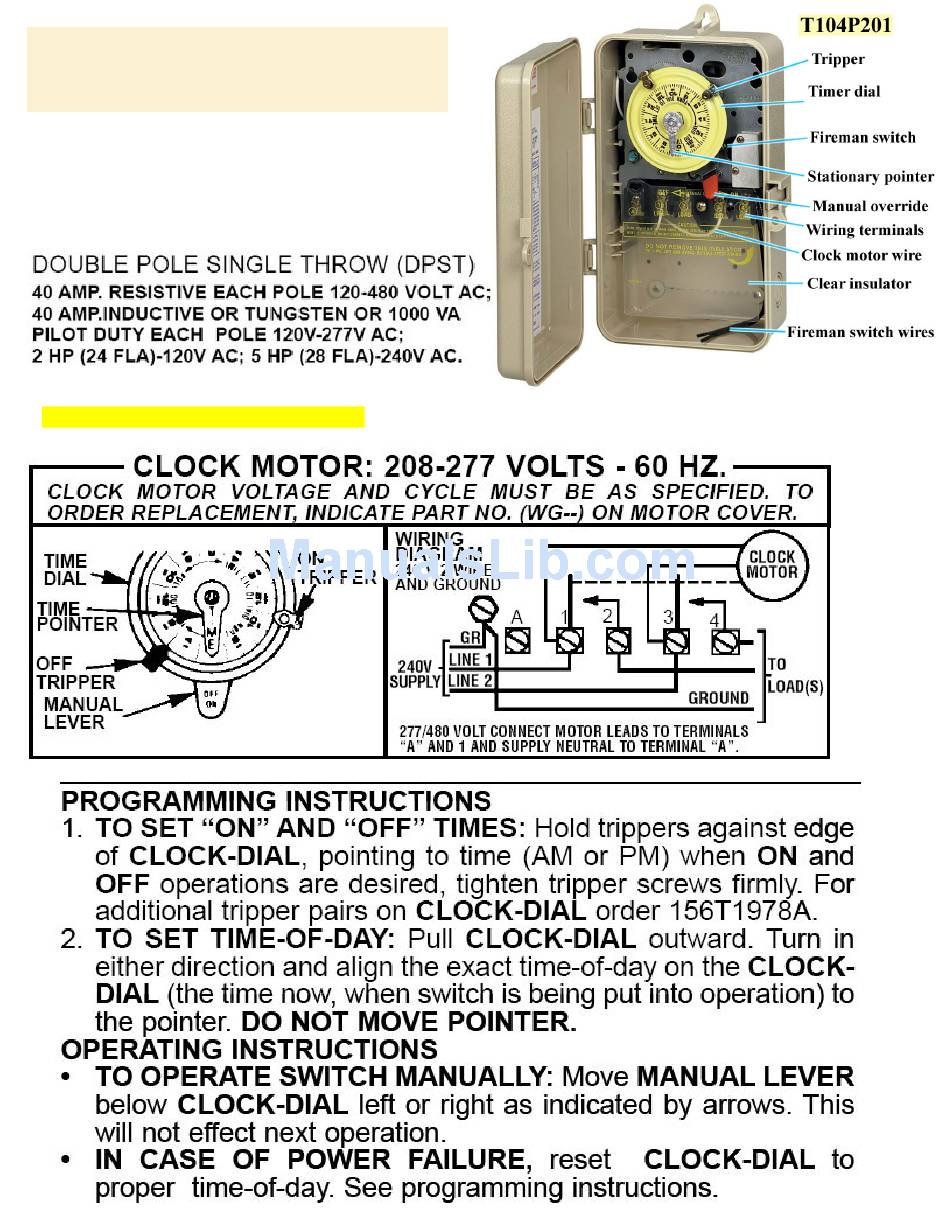

Model T104P201 with Plastic enclosure

Model T104R201 with Metal enclosure

24 Hour Dial Time switch with Fireman switch

240Volt timer with heater protection that turns off
gas-fired pool heater 15-20 minutes before turning off
filter pump. This eliminates knocking due to overheated
water, reduces scale and lime, and extends service life of
heater

Heater protection circuit: 10A 240V max.

WG1573 clock motor/ 156T1978A Tripper / 9-3/8" H x 5-1/2" W x 3-5/8" D/ ½" and ¾" KO on back and side
