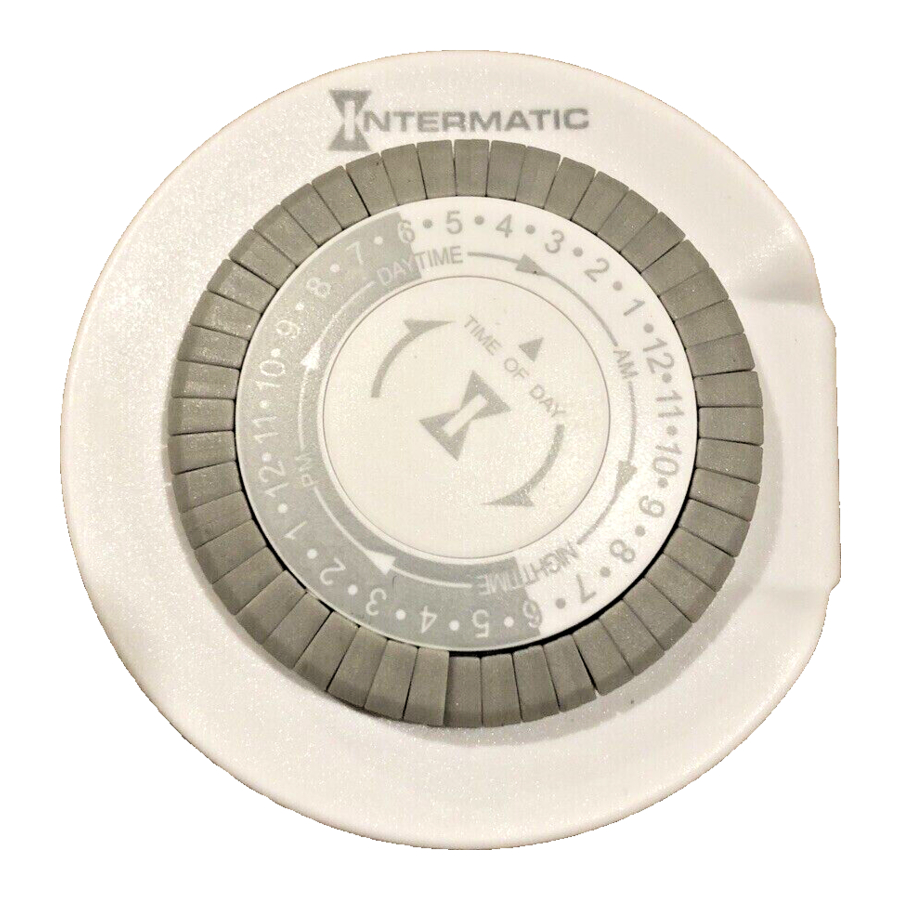

Intermatic TN300 Series - Lamp Timer Manual

Overview

Risk of fire or electric shock

• For indoor use only in dry locations.
• Do not exceed capacity.
• Do not use timer with devices that could have dangerous consequences due to inaccurate timing, such as sun lamps, heaters, etc.
• Plug directly into receptacle.

NOTICE

• No user serviceable arts.

To Set the Timer

1. Make sure all pins are pulled UP.
2. Turn dial clockwise until TIME NOW arrow points to correct time of day.

   • WHITE = AM
   • DARK = PM
3. Set an ON/OFF time:
   1. Push the pin DOWN at the ON time you want.

   2. Push the pin DOWN at the OFF time you want.

      For Manual Override
      To override timer settings, slide Manual Override Switch:

      • OUTLET ON = outlet overrides the timer
      • TIMER = controlled by timer
   3. Push all pins DOWN in between.

4. Set additional ON/OFF times as you wish.
5. Plug in lamp and turn ON.
6. Plug timer into wall.
