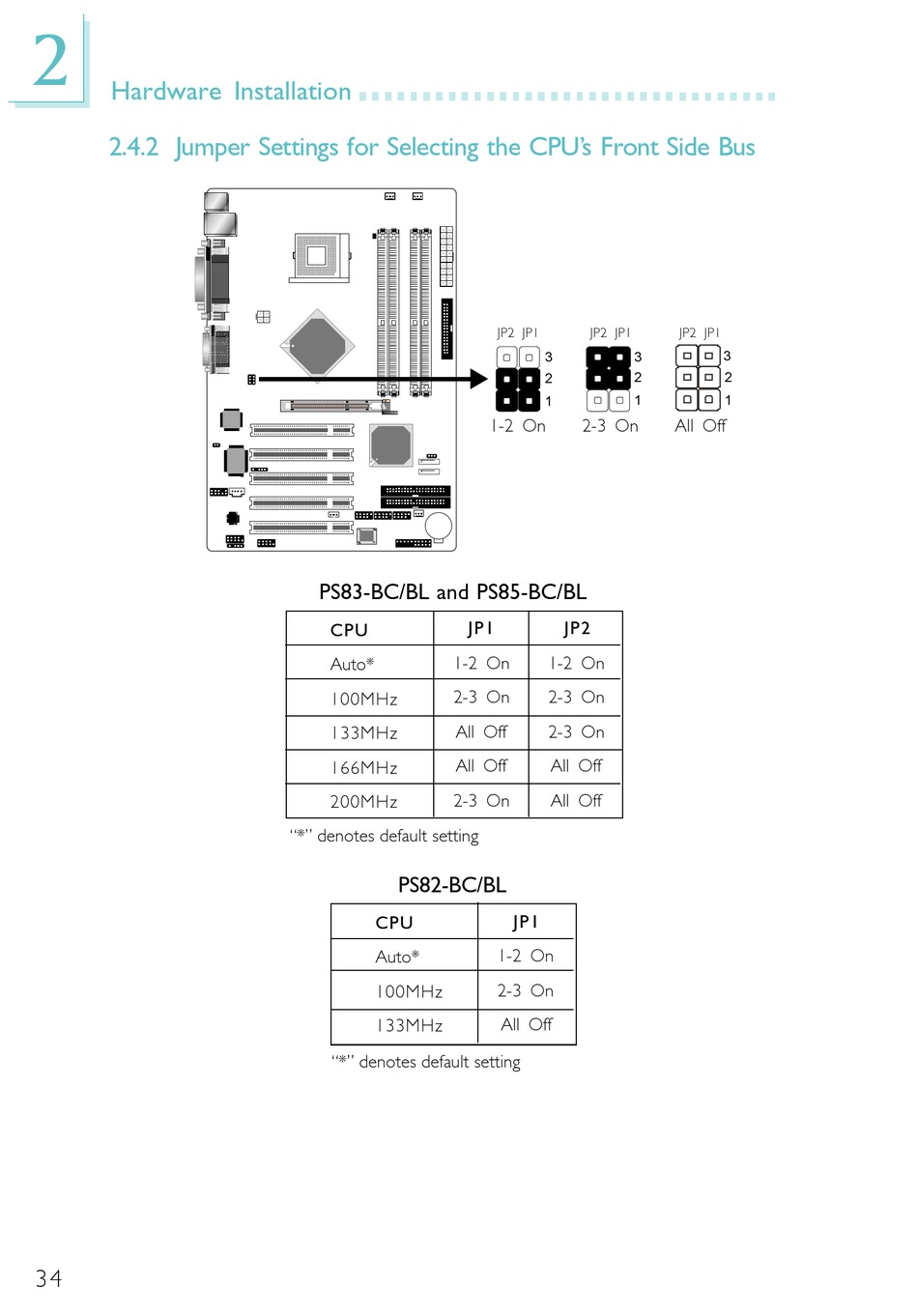

Hardware Installation
2.4.2 Jumper Settings for Selecting the CPU’ s Front Side Bus
34
PS83-BC/BL and PS85-BC/BL
CPU
1-2 On
Auto*
2-3 On
100MHz
All Off
133MHz
All Off
166MHz
2-3 On
200MHz
“*” denotes default setting
PS82-BC/BL
CPU
Auto*
100MHz
133MHz
“*” denotes default setting
JP2 JP1 JP2 JP1
3 3
u
2
2
1
1
1-2 On 2-3 On
JP1 JP2
1-2 On
2-3 On
2-3 On
All Off
All Off
JP1
1-2 On
2-3 On
All Off
JP2 JP1
3
2
1
All Off
