Breakfa st
Linch on
One Dish
Bar
the Run
Popcorn
Baked
Dinners
Sensor
Potatoe s
Custom
Reheat
More from your Microwav
Help
e
Sensor Cooking
1
2
3
Super
Compu
Beverag e
Defrost
Defrost
center
Vegetab les
Main
Frozen
Kitchen
Entrees
Foods
Timer/C lock
6
7
8
This is a supplemental Service Manual for Models R-630DKA, R-630DSA and R-630DWA. These
models are quite similar to base models R-630DK, R-630DS and R-630DW. Use this supplemen-
tal manual together with the Base Model Service Manual (Refer No. is S7017R630DPW/) for
complete operation, service information, etc..
BEFORE SERVICING ...................................................................................................... INSIDE FRONT COVER
WARNING TO SERVICE PERSONNEL ................................................................................................................ 1
MICROWAVE MEASUREMENT PROCEDURE ................................................................................................... 2
FOREWORD AND WARNING ............................................................................................................................... 3
PRODUCT DESCRIPTION .................................................................................................................................... 4
OVEN SCHEMATIC ............................................................................................................................................... 5
TEST PROCEDURE .............................................................................................................................................. 5
COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE .................................................................. 6
PICTORIAL DIAGRAM .......................................................................................................................................... 8
PARTS LIST .......................................................................................................................................................... 9
PACKING AND ACCESSORIES ......................................................................................................................... 11
SHARP CORPORATION
SERVICE MANUAL
MODELS
4
5
Power
Minute
Level
PLus
9
0
STOP
START
Clear
Touch on
In the interest of user-safety the oven should be restored to its original
condition and only parts identical to those specified should be used.
WARNING TO SERVICE PERSONNEL: Microwave ovens con-
tain circuitry capable of producing very high voltage and
current, contact with following parts may result in a severe,
possibly fatal, electrical shock. (High Voltage Capacitor, High
Voltage Power Transformer, Magnetron, High Voltage Recti-
fier Assembly, High Voltage Harness etc..)
TABLE OF CONTENTS

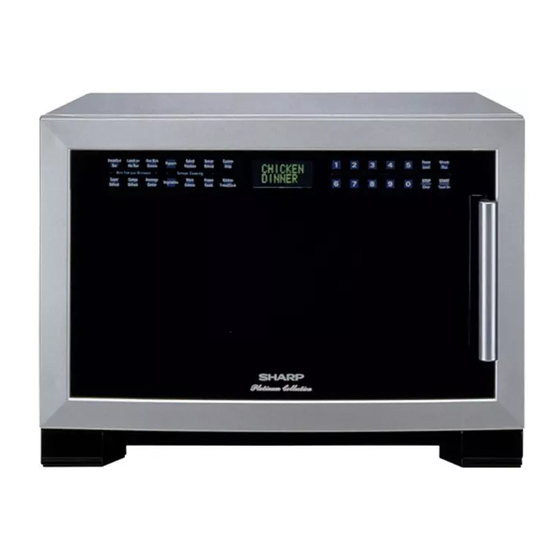

MICROWAVE OVEN
R-630DKA
R-630DSA
R-630DWA
This document has been published to be used for after
sales service only.
The contents are subject to change without notice.
15
R- 630DKA
R- 630DSA
R-630DWA
S7118R630DPWA
Page
Advertisement
Table of Contents
Related Manuals for Sharp R-630DKA
Summary of Contents for Sharp R-630DKA
-
Page 1: Table Of Contents
Voltage Power Transformer, Magnetron, High Voltage Recti- fier Assembly, High Voltage Harness etc..) This is a supplemental Service Manual for Models R-630DKA, R-630DSA and R-630DWA. These models are quite similar to base models R-630DK, R-630DS and R-630DW. Use this supplemen- tal manual together with the Base Model Service Manual (Refer No. -
Page 2: Precautions To Be Observed Before And During Servicing To Avoid Possible Exposure To Excessive Microwave Energy
Before servicing an operative unit, perform a microwave emission check as per the Microwave Measurement Procedure outlined in this service manual. If microwave emissions level is in excess of the specified limit, contact SHARP ELECTRONICS CORPORATION immediately @1-800-237-4277. If the unit operates with the door open, service person should 1) tell the user not to operate the oven and 2) contact SHARP ELECTRONICS CORPORATION and Food and Drug Administration's Center for Devices and Radiological Health immediately. -
Page 3: Warning To Service Personnel
R- 630DKA R- 630DSA R-630DWA WARNING TO SERVICE PERSONNEL Microwave ovens contain circuitry capable of pro- ducing very high voltage and current, contact with following parts may result in a severe, possibly fatal, electrical shock. (Example) High Voltage Capacitor, High Voltage Power Trans- former, Magnetron, High Voltage Rectifier Assem- bly, High Voltage Harness etc.. -
Page 4: Microwave Measurement Procedure
R- 630DKA R- 630DSA R-630DWA MICROWAVE MEASUREMENT PROCEDURE A. Requirements: 1) Microwave leakage limit (Power density limit): The power density of microwave radiation emitted by a microwave oven should not exceed 1mW/cm at any point 5cm or more from the external surface of the oven, measured prior to acquisition by a purchaser, and thereafter (through the useful life of the oven), 5 mW/cm at any point 5cm or more from the external surface of the oven. -
Page 5: Foreword And Warning
R-630DKA/ R-630DSA/ R-630DWA FOREWORD This Manual has been prepared to provide Sharp Electronics Corp. Service Personnel with Operation and Service Information for the SHARP MICROWAVE OVEN, R-630DKA, R-630DSA, R-630DWA. The models R-630DKA, R-630DSA, R-630DWA are quite similar to base models R-630DK, R-630DS and R-630DW (Refer No. -
Page 6: Product Description
R- 630DKA R- 630DSA R-630DWA SPECIFICATION ITEM DESCRIPTION Power Requirements 120 Volts / 14 Amperes 60 Hertz Single phase, 3 wire grounded Power Output 1100 watts (IEC TEST PROCEDURE) Operating frequency of 2450MHz Case Dimensions Width 19-1/2" Height 14" Depth 20-5/8" Cooking Cavity Dimensions Width 17-3/4"... -
Page 7: Oven Schematic
R- 630DKA R- 630DSA R-630DWA SCHEMATIC NOTE: CONDITION OF OVEN 1. DOOR CLOSED 2. CLOCK APPEARS ON DISPLAY THERMAL MONITOR THERMAL CUT-OUT (OVEN) FUSE 20A CUT-OUT (MG.) N.O. POWER N.O. TRANSFORMER (RY-1) (RY-2) PRIMARY INTERLOCK RELAY CONTROL UNIT COM. COM. 120V AC DOOR 60 Hz... -
Page 8: Component Replacement And Adjustment Procedure
R- 630DKA R- 630DSA R-630DWA COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE DOOR REPLACEMENT REMOVAL 3. Door is positioned with its face pressed toward cavity 1. Disconnect the power supply cord and then remove the face plate. outer case. 4. Check for microwave leakage around door with an 2. - Page 9 R- 630DKA R- 630DSA R-630DWA INDIVIDUAL DOOR PARTS REMOVAL DOOR PANEL held by the four (4) tabs and the three (3) holes on 1. Disconnect the power supply cord. the door frame as shown in Figure C-10. 2. Remove the door from the oven. Refer to "DOOR REPLACEMENT".
-
Page 10: Pictorial Diagram
R- 630DKA R- 630DSA R-630DWA... -
Page 11: Parts List
CABINET PARTS 2- 1 FDAI-A215WRYZ Base plate 2- 2 GLEGPA074WRE0 Foot 2- 3 GLEGPA081WRFZ 2- 4 GCABUA773WRPZ Outer case cabinet [R-630DKA] 2- 4 GCABUA775WRPZ Outer case cabinet [R-630DWA] 2- 4 GCABUA777WRPZ Outer case cabinet [R-630DSA] 2- 5 GLEGPA080WRFZ Front leg [R-630DKA]... -
Page 12: Door Parts
∆ 5-3-2 HPNL-A770WRRZ Door screen [R-630DWA] ∆ 5-3-2 HPNL-A768WRRZ Door screen [R-630DSA] ∆ 5- 3 FWAKPA346WRKZ Door frame assembly [R-630DKA] ∆ 5- 3 FWAKPA348WRKZ Door frame assembly [R-630DWA] ∆ 5- 3 FWAKPA344WRKZ Door frame assembly [R-630DSA] 5- 4 JHNDPA203WRTZ Handle [R-630DKA]... -
Page 13: Packing And Accessories
1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION Order Parts from the authorized SHARP parts Distributor for your area. Defective parts requiring return should be returned as indicated in the Service Policy. PACKING AND ACCESSORIES TOP PAD ASSEMBLY... - Page 14 R- 630DKA R- 630DSA R-630DWA OVEN AND CABINET PARTS 7-13 7-18 4-23 1-10 7-14 4-26 4-17 1-13 4-22 7-12 4-12 4-30 7-14 4-28 4-27 4-17 4-18 7-11 1-11 4-11 4-19 4-14 7-11 7-11 4-15 4-20 7-10 7-11 4-16 4-10 7-17 1-12 6-13 7-11...
- Page 15 R- 630DKA R- 630DSA R-630DWA DOOR PARTS 5-16 5-16 5-11 5-12 5-18 5-17 5-13 4-13 5-16 5-17 5-18 5-17 5-10 5-14 5-17 5-3-1 5-14 5-15 5-3-2 MISCELLANEOUS (CAPACITOR) Actual wire harness may be different from illustration. 6-11 6-12...
