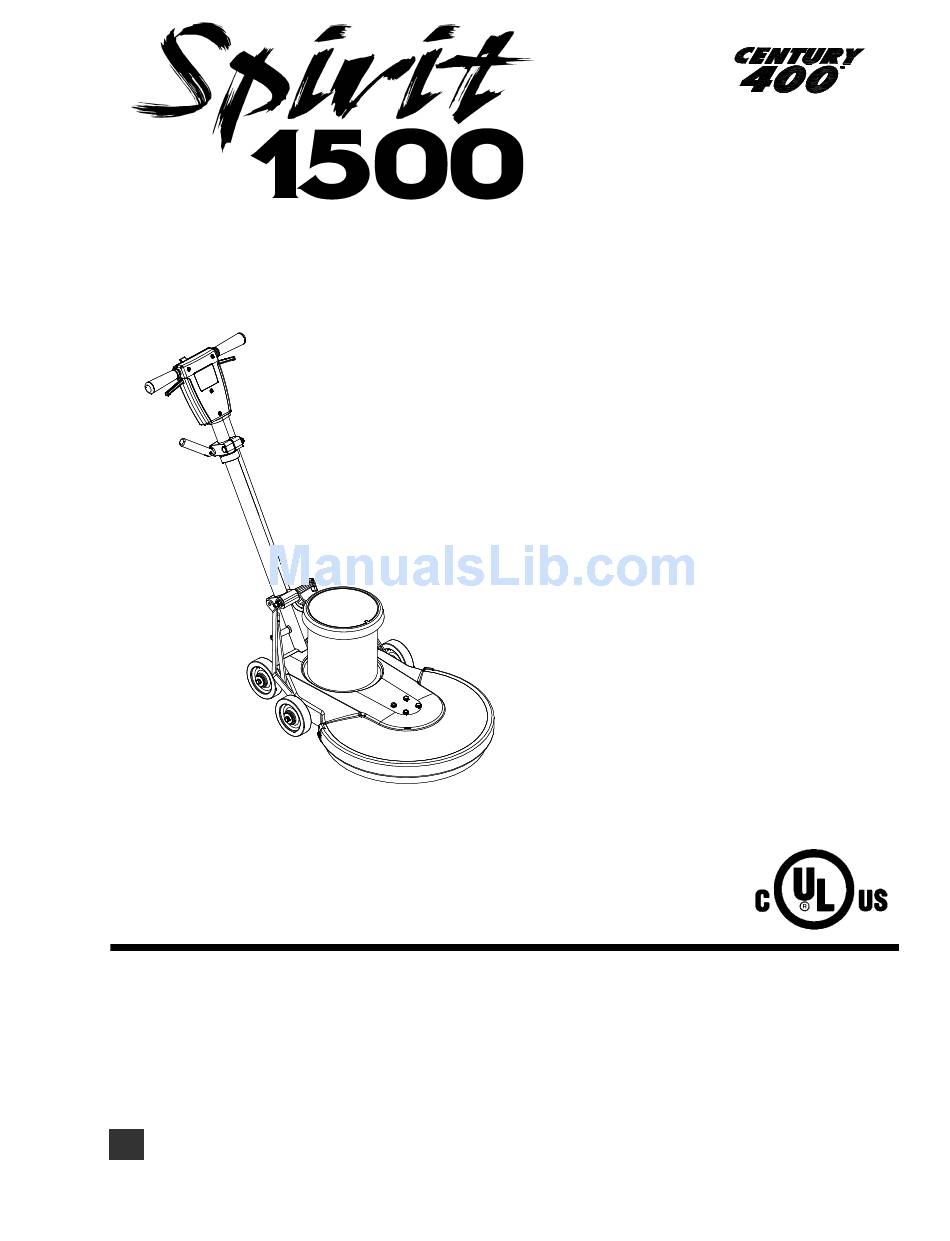

HIGH SPEED BURNISHER Operating Instructions (ENG) MODEL: SPT1500 10090360 Read these instructions before using the machine 86037290 12/29/06 PRV NO 980131...
Page 2
MACHINE DATA LOG/OVERVIEW MODEL______________________________ DATE OF PURCHASE ________________ SERIAL NUMBER____________________ YOUR DEALER Name: __________________________________________________________________________________________________ Address: _______________________________________________________________________________________________ For the name and address of your dealer contact: Windsor Industries Phone Number: _________________________________________________________________________________________ SPT1500 86037290 12/29/06...
TABLE OF CONTENTS Machine Data Log/Overview......2 GROUP PARTS LIST Table of Contents........3 Motor Group ........... 5-1 HOW TO USE THIS MANUAL Frame Group .......... 5-3 Drive/Pad Lock Group ......5-5 How to use this Manual......1-1 Handle Group ......... 5-7 Wiring Group .......... 5-9 SAFETY Suggested Spare Parts ......
HOW TO USE THIS MANUAL This manual contains the following sections: The PARTS LIST section contains assembled parts illustrations and corresponding parts list. The HOW TO USE THIS MANUAL parts lists include a number of columns of SAFETY information: OPERATIONS REF –...
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING: To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual.
HAZARD INTENSITY LEVEL The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death .
GROUNDING INSTRUCTIONS THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL: In the USA this machine operates on a 15 amp nominal 120V, 60 hz, A.C. power circuit. The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors.
TECHNICAL SPECIFICATIONS ITEM DIMENSION/CAPACITY Construction Heavy-duty die cast aluminum deck with heavy-duty rubber bumper, tubular steel adjustable handle with die cast aluminum handle housing and belt driven pad. Motor 1.75 hp Pad speed 1500 rpm Electrical system 115 volts, 60 Hz Cable 50’...
HANDLE INSTALLATION HANDLE ASSEMBLY HANDLE RECEPTACLE MOTOR PLUG DECK PIVOT ASSEMBLY HOLE SEE NOTE The machine is shipped with handle unassembled. Follow these steps for installation: 1. Remove handle and deck assembly from carton. 2. Attach handle assembly to base using hardware kit (attached to handle in a plastic bag) items 1, 2, and 3. NOTE: The spacers (items 1) are required for the correct operation of the handle.
OPERATION CONTROLS 1. Safety Lock – Prevents unintended operation 1. To adjust handle lock, tighten nut on handle of the machine. while in the locked position. Optimum locking force and ease of locking is accomplished 2. Switch Levers – Turns machine on/off. when the locking lever nut is set to a torque of 30 to 50 inch pounds in the locked position.
OPERATION OPERATION DAILY MAINTENANCE 1. Inspect power cord for wear. To prevent CAUTION electrical shock replace cords with frayed or For indoor use only. cracked insulation immediately. When using the pad, always keep the machine 2. Place machine in the storage position. moving when in contact with the floor.
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Circuit breaker tripped in Check and reset. Machine will not run building. Power switch failure. Test switch for continuity and replace if necessary. Tripped circuit breaker. Reset. Faulty power cord. Replace. Fuse in motor is blown. Replace.
WIRING DIAGRAM/SERVICE SCHEDULE SERVICE SCHEDULE MAINTENANCE DAILY MONTHLY Check pad wear to prevent buildup of chemicals Check pad driver system for damage Check handles, switches, and knobs for damage Store with pad off the floor Check all bearings for noise Check skirt/bumpers for damage and replace as necessary Check overall performance of machine SPT1500 86037290 12/29/06...
Page 15
MOTOR GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86017850 27892 COVER ASM, MOTOR SCR, M5 X .8 X 10 PHMS 86223680 70700 86222060 53249 MOTOR, 115V 1.75 HP INCLUDES ITEM 1 & 2 MOTOR COMPONENTS (NOT SHOWN) SERIAL NO.
Page 17
FRAME GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86220090 500793 LABEL, SPIRIT 1500 MAIN 86215460 140397 BRACKET, HANDLE LINK 86288990 29229GRY DECK, 20 IN BURNISHER, GRAY 86214930 03111 AXLE, MAIN POLISHER 86226020 89206 WHEEL, 5D X 1.25 X 13MM ID GRY...
Page 19
DRIVE/PAD LOCK GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86288740 70709 SCR, SET M8 X 1.25 X 8MM CUP POINT 86010720 87086 WASHER, M10 X 30 PLTD 86006920 70507 SCR, 3/8-16 X 3/4 HHCS GR5 PLTD 86004820 48041 KEY, 3/16 SQ X 7/8 CRS 86223280...
WIRING GROUP PRIOR TO SN* SPT1500 86037290 12/29/06...
Page 23
WIRING GROUP SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86136780 70801 10020019 SCR, M3.5 X 40 PHTF TYPE B WAS 70688 86137290 87057 WASHER, M4 SHAKEPROOF 86224750 73993 SPRING, COMP, .48OD X .875L 86007110 72123 10020019 SWITCH, 25A SPST 125-250V SNAP WAS QTY 1 86224550 73989...
SUGGESTED SPARE PARTS SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86225710 87202 WASHER, BEARING (HANDLE ADJ) 86224740 73990 SPRING, EXT .5 OD X 3.5 L 86224750 73993 SPRING, COMP .48 OD X .91L 86007110 72123 SWITCH, 25A SPST 125-250V SNAP 86215130 14344 BAR, HANDLE ADJ...
