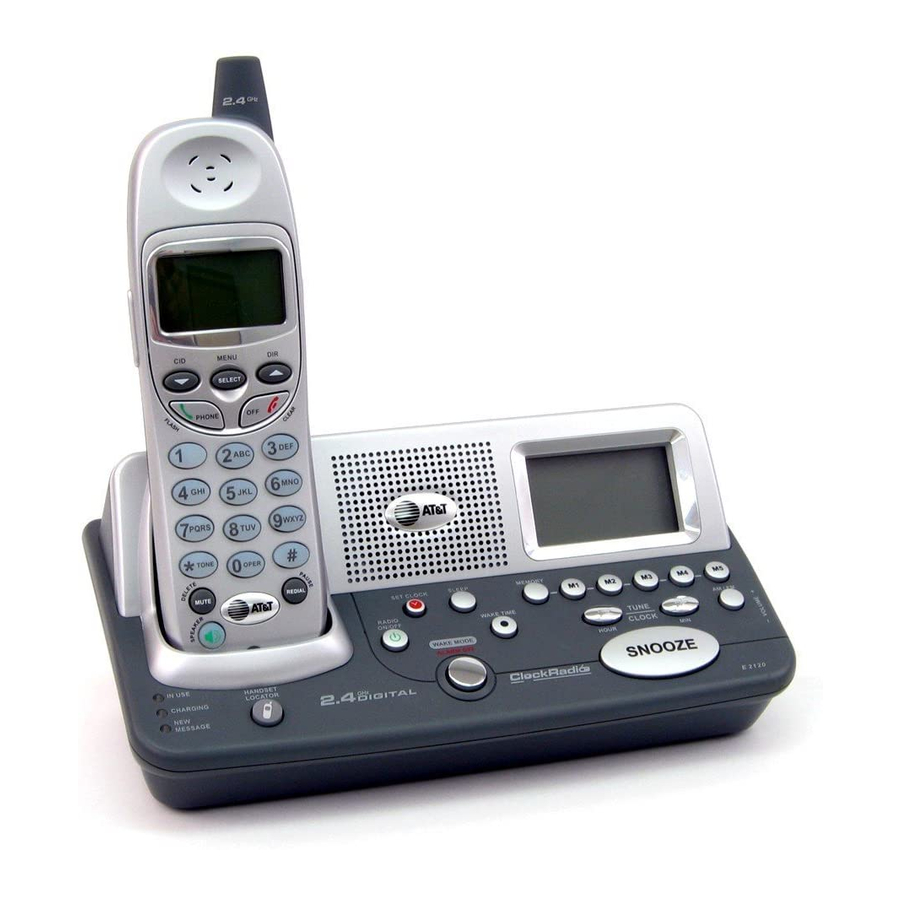

User Manual (Part 2)
2.4 GHz Cordless
Telephone/Clock Radio
E2120
with Caller ID & Call Waiting

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATT-E2120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AT&T ATT-E2120

  • Page 1 91-000040-010-000_E2120ManualMP_R0Aug0904.qxd 8/9/2004 10:06 AM Page 1 User Manual (Part 2) 2.4 GHz Cordless Telephone/Clock Radio E2120 with Caller ID & Call Waiting...
  • Page 2 91-000040-010-000_E2120ManualMP_R0Aug0904.qxd You must install and charge batteries before using the telephone. For customer service or product information, visit our web site at www.telephones.att.com 1-800-222-3111. or call Copyright © 2004 Advanced American Telephones. All Rights Reserved. AT&T and the Globe Design are trademarks of AT&T Corp., licensed to Advanced American Telephones.
  • Page 3: Table Of Contents

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd User Manual (Part 2) 2.4 GHz Cordless Telephone/Clock Radio E2120 with Caller ID & Call Waiting Table of contents Getting Started Quick reference guide ...2 Parts checklist ...4 Before you begin ...5 Telephone base installation...6 Battery installation & charging ...7 Belt clip &...
  • Page 4: Phone Directory

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Getting Started Quick reference guide Handset Press to scroll down in menus. Press when phone is not in use to display Caller ID information (see page 25). While entering names, press to move the cursor to the left. Phone/Flash Press to begin a call, then dial a number.
  • Page 5: Handset Locator

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Getting Started Quick reference guide Telephone Base DISPLAY LIGHT SWITCH IN USE On when handset is in use. Flashes when another phone is in use on the same line. CHARGING On when handset batteries are charging. NEW MESSAGE Flashes when you have new voice mail (requires voice mail service from your local telephone company).
  • Page 6: Parts Checklist

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Getting Started Parts checklist Remember to save your sales receipt and original packaging in case you ever need to ship your telephone for warranty service. Check to make sure the telephone package includes the following: Telephone base Power adapter AM/FM loop antenna 8/9/2004 10:06 AM...
  • Page 7: Before You Begin

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Getting Started Before you begin About Caller Identification Caller ID with Call Waiting features in this telephone let you see who’s calling before you answer the phone, even when you’re on another call. These features require services provided by your local telephone company.
  • Page 8: Telephone Base Installation

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Getting Started Telephone base installation Install the telephone base as shown below. Choose a base location away from electronic equipment, such as personal computers, television sets or microwave ovens. Avoid excessive heat, cold, dust or moisture. Plug power cord transformer into electrical outlet Plug line cord into telephone...
  • Page 9: Battery Installation & Charging

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Getting Started Battery installation & charging After installation, place the handset in the base and allow to charge for 15 hours before use. You can keep the battery charged by returning the handset to the base after each use. When the battery is fully depleted, a recharge takes about 15 hours. Press coin into slot on base of handset to release latch, then...
  • Page 10: Belt Clip & Optional Headset

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Getting Started Belt clip & optional headset Install belt clip as shown below if desired. For hands-free telephone conversations, you can use any industry standard 2.5 mm headset (purchased separately). For best results use an AT&T 2.5 mm headset. 8/9/2004 10:06 AM Page 8...
  • Page 11: Telephone Operation

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Elapsed time PHONE 00:00:12 SPEAKER 00:00:12 REDIAL 555-1234 MUTE PHONE 00:00:12 MICROPHONE MUTED 8/9/2004 10:06 AM Telephone Operation Basic operation Making and answering calls To answer an incoming call, press or any dial pad key). To make a call, press , then dial a number.
  • Page 12: Options While On Calls

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Volume Silence ringer Flash Tone 8/9/2004 10:06 AM Telephone Operation Options while on calls Volume control Press buttons on the side of the handset to VOLUME adjust listening volume. Each button press raises or lowers volume by one level. When you change the volume level, the new setting becomes the default.
  • Page 13: Handset Locator

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd 8/9/2004 10:06 AM Page 11 Telephone Operation Handset locator If you misplace the handset, press HANDSET LOCATOR at the base. The handset will beep for 60 seconds to help you locate it. To stop the beeping, press PHONE, or any dial pad button at the handset, or SPEAKER, press at the base.
  • Page 14: Handset Settings

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Highlighted menu item > DIRECTORY CALL LOG RINGER VOLUME OUTSIDE TONE KEY TONE 8/9/2004 10:06 AM Telephone Operation Handset settings At the feature menu you can change settings to customize how the telephone works. Press , then use the MENU the feature you want to change.
  • Page 15: Handset Name

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd HANDSET NAME AT&T_ LANGUAGE ENGLISH TURN INDICATOR OFF? DIAL TYPE TONE 8/9/2004 10:06 AM Telephone Operation Handset settings Handset name At this menu you can customize the name that appears on the handset screen when the phone is idle. Press to erase letters, then replace them with a DELETE name of your preference, up to 16 characters long (see...
  • Page 16: Clock Radio Operation

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd 12:35 188. 8/9/2004 10:06 AM Clock Radio Operation The built-in clock radio with wakeup alarm includes the following features: • Large, bright current time display • Full spectrum AM/FM station tuning • Dual-function station tuning (manual or auto-search) • One-touch tuning for up to 10 stations (5 AM, 5 FM) •...
  • Page 17: To Set The Clock

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd SET CLOCK 12:00 Press and hold until time blinks. HOUR 1:00 Press to select correct hour (press and hold to advance quickly) 1:23 Press to select correct minute (press and hold to advance quickly) SET CLOCK 1:23 Press to set clock to displayed time.
  • Page 18: To Set The Wakeup Alarm

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd WAKE TIME 12:00 Press and hold until time blinks. HOUR 6:00 Press to select wakeup hour (press and hold to advance quickly) 6:30 Press to select wakeup minute (press and hold to advance quickly) WAKE TIME 6:30 Press to set wakeup time to displayed time.
  • Page 19: To Turn Off The Wakeup Alarm

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd 6:30 SNOOZE 6:30 Press to silence for 8 minutes. 6:38 ALARM OFF 6:38 Press to turn off alarm. Icon shows alarm remains set to wake you at your designated wake time tomorrow. 8/9/2004 10:06 AM Clock Radio Operation To turn off the wakeup alarm To use the Snooze Alarm Press the button to turn off the alarm for 8...
  • Page 20: Using The Radio

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd RADIO ON/OFF 12:35 Press to turn radio on or off. AM/FM 12:35 Press to select AM or FM band. TUNE +/- 12:35 Press to change frequency. Hold to search for stations. Use wheel on side of base to adjust radio volume. MEMORY 12:35 188.
  • Page 21: Setting The Sleep Timer

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd SLEEP 188. Tune station, then press SLEEP. SLEEP 188. Press repeatedly to select time. 10:35 188. Clock displays current time. Radio will turn off when timer expires. 8/9/2004 10:06 AM Clock Radio Operation Setting the sleep timer The sleep timer allows you to set the radio to turn off automatically after a specified period of time.
  • Page 22: Phone Directory

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd 8/9/2004 10:06 AM Page 20 Phone Directory Memory capacity Pat Williams The phone directory can store up to 50 entries. Each 555-1234 entry can contain a number up to 32 digits, and a name up to 16 letters long. A convenient search feature can help you find and dial numbers quickly (see page 22).
  • Page 23: New Phone Directory Entries

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd AT&T > DIRECTORY CALL LOG > STORE REVIEW ENTER NUMBER 555-1234_ ENTER NAME Pat Williams_ Pat Williams 555-1234 8/9/2004 10:06 AM Phone Directory New phone directory entries To create a new phone directory entry Press twice to select MENU DIRECTORY highlight .
  • Page 24: Phone Directory Search

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd AT&T Andrew 555-6789 Barbara 555-9876 Jennifer 555-4321 555-4321 8/9/2004 10:06 AM Phone Directory Phone directory search Press to display the first listing in the phone directory. You can then use the up/down arrows to browse through the directory, or search to find a spe- cific entry.
  • Page 25: To Dial, Change Or Delete Entries

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd AT&T Andrew 555-6789 EDIT NUMBER 555-6789_ EDIT NAME Andy_ Andy 555-6789 8/9/2004 10:06 AM Phone Directory To dial, change or delete entries To dial a number When any phone directory entry is displayed, press ) to dial the displayed number. PHONE SPEAKER To delete an entry...
  • Page 26: Caller Id Logs

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Pat Williams 908-555-0100 11/23 10:01 8/9/2004 10:06 AM Caller ID Logs How Caller ID works If you subscribe to Caller ID service provided by your local phone company, information about each caller will be displayed after the first ring. Caller’s name Appears when Pat Williams...
  • Page 27: To Review Your Call Log

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd AT&T 6 NEW CALLS Pat Williams 555-1234 11/23 10:31 Chris Thompson 908-555-0100 11/23 10:21 Jeffrey Adams 555-9876 11/23 10:11 8/9/2004 10:06 AM Caller ID Logs To review your call log To review your call log Press to review your call log. The most recent call is displayed first.
  • Page 28: Appendix

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Appendix Screen icons, indicator lights & tones Handset screen icons & alert tones MUTE AT&T 11/23 10:01 Indicator lights IN USE On when handset is in use. Flashes when another phone is in use on the same line. CHARGING On when handset battery is charging.
  • Page 29: In Case Of Difficulty

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Appendix Appendix In case of difficulty If you have difficulty with your phone, please try the suggestions below. For Customer Service, visit our web site at www.telephones.att.com, or call 1-800-222–3111. Telephone does • Make sure batteries are installed and charged correctly (see page 7). not work at all •...
  • Page 30: Technical Specifications

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Appendix Technical specifications 8/9/2004 10:06 AM RF Frequency Band 2401.056 MHz — 2482.272 MHz (Handset to Base) RF Frequency Band 2401.056 MHz — 2482.272 MHz (Base to Handset) Channels Channel Spacing 864 KHz Output Power 20 dBm Sensitivity -96 dBm Modulation GFSK Operating Temperature...
  • Page 31: Index

    91-000040-010-000_E2120ManualMP_R0Aug0904.qxd Appendix Appendix Index AC adapter, 6 Alert tones, 26 Answering calls, 9 Battery charging, 7 Battery installation, 7 Belt clip, 8 Call logs, 24 Caller ID, 24 add entries to phone directory, 25 delete entries, 25 dial entries, 25 CID, 24 Clock radio operation, 14-19 Delete Call Log entries, 25...
  • Page 32 91-000040-010-000_E2120ManualMP_R0Aug0904.qxd 8/9/2004 10:06 AM Page 30 www.telephones.att.com Copyright © 2004 Advanced American Telephones. All Rights Reserved. AT&T and the Globe Design are trademarks of AT&T Corp., licensed to Advanced American Telephones. Printed in China. Issue1 AT&T 07/04. 91-000040-010-000...
