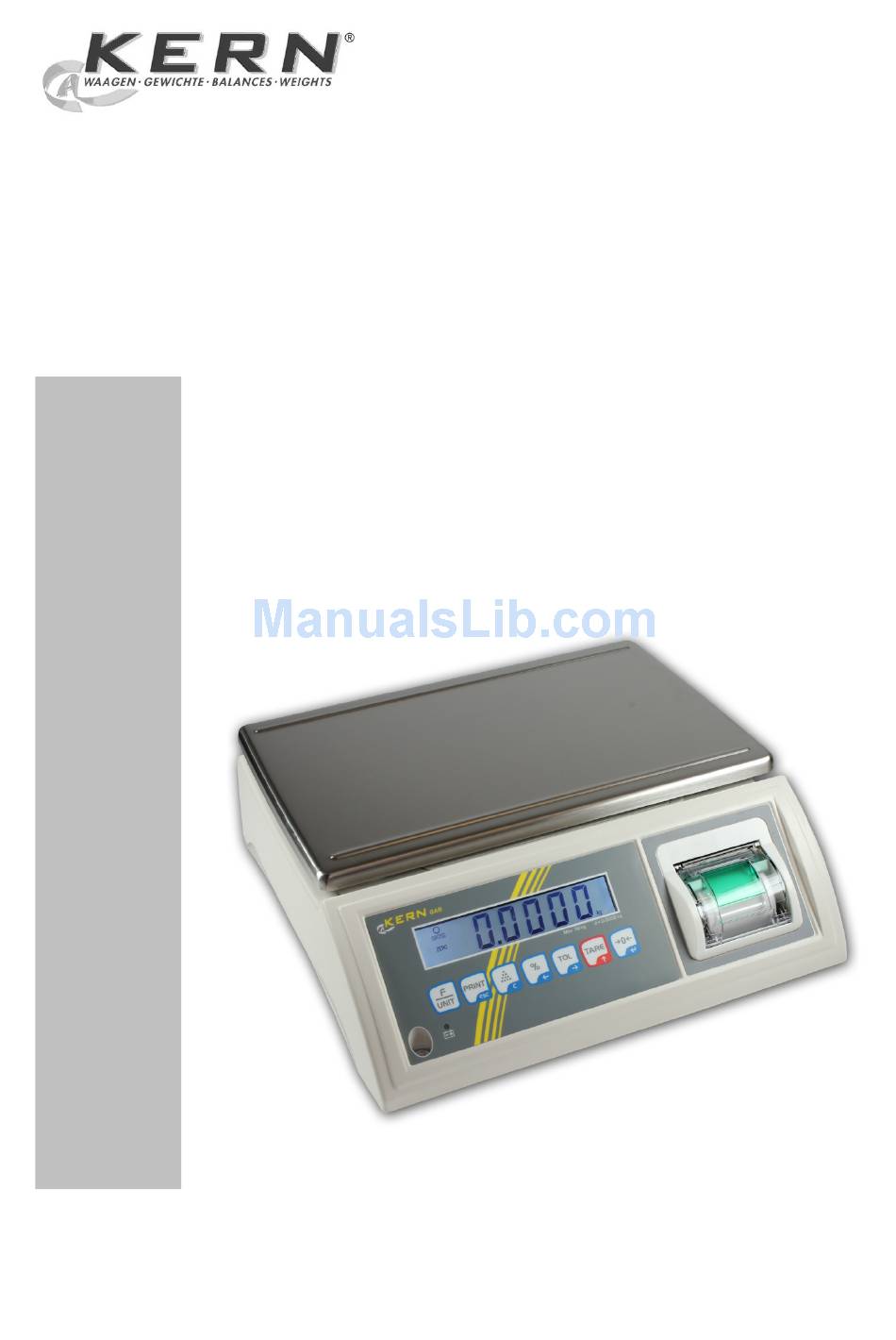

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating manual Table scales KERN GAB-P Version 1.1 03/2014 GAB-P-BA-e-1411...
-
Page 2: Table Of Contents
KERN GAB-P Version 1.1 03/2014 Operating manual Table scale Contents TECHNICAL DATA ..................... 4 APPLIANCE OVERVIEW ................... 6 Overview of display ........................8 Keyboard overview ........................9 Dimensions ..........................11 BASIC INFORMATION (GENERAL) ..............11 Proper use ..........................11 Improper Use........................... 11 Warranty .......................... - Page 3 Pin allocation of the balance output socket (front view) ............ 37 10.3 Remote control instructions ....................37 MAINTENANCE, SERVICING, REMOVAL, ERROR MESSAGES ....38 11.1 Clean ............................38 11.2 Servicing, maintenance ......................38 11.3 Disposal ........................... 38 11.4 Error messages ........................38 DECLARATION OF CONFORMITY .............. 39 GAB-P-BA-e-1411...
-
Page 4: Technical Data
Operating period without printer – background lighting on 80 h. Operating period without printer – background lighting off 150 h if the printer is used frequently, the operating time will be halved Loading time approx. 12 hrs. Data interface RS 232C GAB-P-BA-e-1411... - Page 5 Operating period without printer – background lighting on 80 h. Operating period without printer – background lighting off 150 h if the printer is used frequently, the operating time will be halved Loading time approx. 12 hrs. Data interface RS 232C GAB-P-BA-e-1411...
-
Page 6: Appliance Overview
2 Appliance overview 1. Weighing pan 2. Printer 3. Buttons 4. Bubble level 5. RS 232 interface 6. Battery compartment GAB-P-BA-e-1411... - Page 7 7. Transport guard screw 8. Levelling screw 9. Connection of mains adapter 10. ON/OFF switch 11. Seal of verifiable models 12. Seal with an underneath verification switch (verifiable models) GAB-P-BA-e-1411...
-
Page 8: Overview Of Display
The balance will be set to zero after a short standby time. TARE Taring Scales have been tared Automatic adding-up Is displayed if in the menu „Automatic AUTO totalizing“ has been selected Tolerance check Load above (HI), below (LO) or within (OK) tolerance range Check weighing GAB-P-BA-e-1411... -
Page 9: Keyboard Overview
2. Storage battery status display Power supply connected Icon is glowing for power supply via power pack • If the LED lights green, the rechargeable battery is fully charged. • When the battery is being recharged, the LED lights red GAB-P-BA-e-1411... - Page 10 Move to the right by one decimal point • Tare balance and enter pre-tare value TARE • In menu: Select submenus Increase displayed value • Reset scales to zero • In menu: Save selected setting Confirm entered value or select function GAB-P-BA-e-1411...
-
Page 11: Dimensions
The structure of the balance may not be modified. This may lead to incorrect weighing results, safety-related faults and destruction of the balance. The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing. GAB-P-BA-e-1411... -
Page 12: Warranty
The responsible user must define a suitable interval as well as type and scope of this test. Information is available on KERN’s home page (www.kern-sohn.com with regard to the monitoring of balance test substances and the test weights required for this.(www.kern-sohn.com). -
Page 13: Basic Safety Precautions
4 Basic Safety Precautions 4.1 Pay attention to the instructions in the Operation Manual Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. All language versions contain a non-binding translation. The German original document is binding. -
Page 14: Unpacking, Setup And Commissioning
Avoid static charge of goods to be weighed or weighing container. If electro-magnetic fields or static charge occur, or if the power supply is unstable major deviations on the display (incorrect weighing results) are possible. In that case, the location must be changed. GAB-P-BA-e-1411... -
Page 15: Unpacking / Installation
Make sure that all transport locking devices are removed To release the transport lock unscrew the transport screw 1 – non verifiable models or 2 –verifiable models counter-clockwise. For transportation carefully screw-in transport screw clockwise till to the stopper and then fix it using locknut. GAB-P-BA-e-1411... -
Page 16: Scope Of Delivery
6.4 Mains connection Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use KERN original mains adapter. Using other makes requires consent by KERN. 6.5 Rechargeable battery operation The rechargeable battery is charged via the delivered power supply. -
Page 17: Adjustment
Procedure when adjusting: Observe stable environmental conditions. A warming up time (see chapter 1) is required for stabilization. Ensure that there are no objects on the weighing pan. GAB-P-BA-e-1411... -
Page 18: Non-Verifiable Models
The currently set adjustment weight will be displayed. To change by using the navigation buttons (see chap. 8) select the desired setting, the active digit is flashing. Acknowledge with . „LoAd“ is displayed. GAB-P-BA-e-1411... -
Page 19: Verification
The weighing result of the balance is outside the error limit. Therefore, in • regular intervals load balance with known test weight (ca. 1/3 of the max. load) and compare with displayed value. The reverification deadline has been exceeded. • GAB-P-BA-e-1411... -
Page 20: Position Of Seals And Adjusting Switch
To disable the access lock, destroy the seal and actuate the switch. Attention: After destruction of the seal the balance must be re-verified by an authorised agency and a new verification wire/seal mark fitted before it can be reused for applications subject to verification. GAB-P-BA-e-1411... -
Page 21: Operation
To switch-off push backward the switch-on/switch-out on the right lower side of the balance. Printout example: No.1 2013/08/10 18:39 5.000kg 5.000kg 0.000kg 7.2 Zeroing Resetting to zero corrects the influence of light soiling on the weighing plate. Unload the balance Press , the balance starts resetting to zero. GAB-P-BA-e-1411... -
Page 22: Taring
The limit is reached when the whole weighing range is exhausted. To delete the tare value, remove load from weighing plate and press Printout example: No.1 1. Weighing 2013/08/10 18:39 Date and time 2.500kg Net weight 3.200kg Gross weight 0.700kg Tare value GAB-P-BA-e-1411... -
Page 23: Overload Warning
Acknowledge with . The next unit with the current (example) setting will be displayed. To enable [on] / disable [off] the displayed weighing unit, press Repeat sequence for each weighing unit. Return to weighing mode using GAB-P-BA-e-1411... -
Page 24: Percent Weighing
The display will return to 0.00 % Place a sample The display will show the percentage value of the sample in relation to the reference value. (example) To return to gram / kilo mode, press Printout example: 200,00% Weight value in percent GAB-P-BA-e-1411... -
Page 25: Parts Counting
To change between reference weight, total weight and quantity, press the key. Back to Weighing mode by Printout example: 2013/08/10 18:39 Date/time 1.000kg Reference weight 10g/pcs Piece weight PCS: 100pcs Number of items GAB-P-BA-e-1411... -
Page 26: Weighing With Tolerance Range
The arrow symbols indicate whether load is within the two set limits. The icons provide the following information: Material to be weighed above tolerance limit Material to be weighed within tolerance range Material to be weighed below tolerance limit GAB-P-BA-e-1411... - Page 27 Tare when using a weighing container. Put on material to be weighed, tolerance control is started. The tolerance control is not active when the weight is under 20d. To finish tolerance weighing, set both limit values to zero. GAB-P-BA-e-1411...
-
Page 28: Manual Totalizing
Add more material to be weighed as described before. Please note that the balance must be unloaded between the individual weighing procedures. You can repeat this process until the capacity of the scales is exhausted. GAB-P-BA-e-1411... - Page 29 Net weight 1.000kg Gross weight 0.000kg Tare value 2. Weighing No.2 2. Weighing 2013/08/10 18:39 Date/time 2.000kg Net weight 2.000kg Gross weight 0.000kg Tare value Number of weighings / total No.2 Number weighing processes 2013/08/10 18:39 Date/time 3.000kg Total GAB-P-BA-e-1411...
-
Page 30: Automatic Adding-Up
After that the balance changes to the zero display. Add more material to be weighed as described before. Please note that the balance must be unloaded between the individual weighing procedures. You can repeat this process until the capacity of the scales is exhausted. GAB-P-BA-e-1411... - Page 31 Net weight 1.000kg Gross weight 0.000kg Tare value 2. Weighing No.2 2. Weighing 2013/08/10 18:39 Date/time 2.000kg Net weight 2.000kg Gross weight 0.000kg Tare value Number of weighing processes / total No.2 Number weighing processes 2013/08/10 18:39 Date/time 3.000kg Total GAB-P-BA-e-1411...
-
Page 32: The Menu
Switch over into the available menu items of the submenu Menu item Select submenu using Confirm setting to save the selected setting • Change to the left Modify/change the • active digit Change to the right • Increase number Return to weighing Press to exit menu. mode GAB-P-BA-e-1411... -
Page 33: Menu Overview
Totalizing function off Add-up mode ACC on Totalizing function on A2 2d A2 2d Zero point correction A4 4d A2 off A2 0.5d A2 1d Ut on Switch on or off weighing units Ut on* Ut off Weighing units GAB-P-BA-e-1411... -
Page 34: Verifiable Models
(automatically) E Pn E Pn Standard printer LP 50 not documented ACC off* ACC off Totalizing function off Add-up mode ACC on Totalizing function on Ut on* Ut on Switch on or off weighing units Ut off Weighing units GAB-P-BA-e-1411... - Page 35 Audio sound when weight is beyond tolerance range SPd 15* SPd 15 Display speed SPd 30 not documented SPd 7.5 oF 0* Auto off after 0, 3, 5, 15, or 30 minutes Auto off return Return to weighing mode GAB-P-BA-e-1411...
-
Page 36: Printer
Insert new paper roll as shown on diagram. Pull a short length of the end of the paper roll towards the front and close cover. Press evenly from both sides on the cover (See arrows). Press and the receipt will be moved on. GAB-P-BA-e-1411... -
Page 37: Data Output Rs 232C
10.2 Pin allocation of the balance output socket (front view) Pin 2: Output Pin 3: Input Pin 5: Signal ground 10.3 Remote control instructions Function mand No data are sent, the balance carries out the tare function. No data are sent, the zero-display appears. GAB-P-BA-e-1411... -
Page 38: Maintenance, Servicing, Removal, Error Messages
Spilled weighing goods must be removed immediately. 11.2 Servicing, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 11.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. -
Page 39: Declaration Of Conformity
EN 60950-1 : 2006 Datum 11.09.2013 Signatur Date Signature 72336 Balingen Albert Sauter Ort der Ausstellung Place of issue KERN & Sohn GmbH Manager Managing director KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0 Fax +49-[0]7433/9933-149, E-Mail: info@kern-sohn.com, Internet: www.kern-sohn.com GAB-P-BA-e-1411...
