Zephyr monsoon mini AK9128AS Use, Care And Installation Manual page 12

!
CAUTION: At least two installers are required
due to the weight and size of the liner.
If possible, power up and test all functions prior to installation.
Use caution during installation to prevent scratches or damage to the
stainless steel.

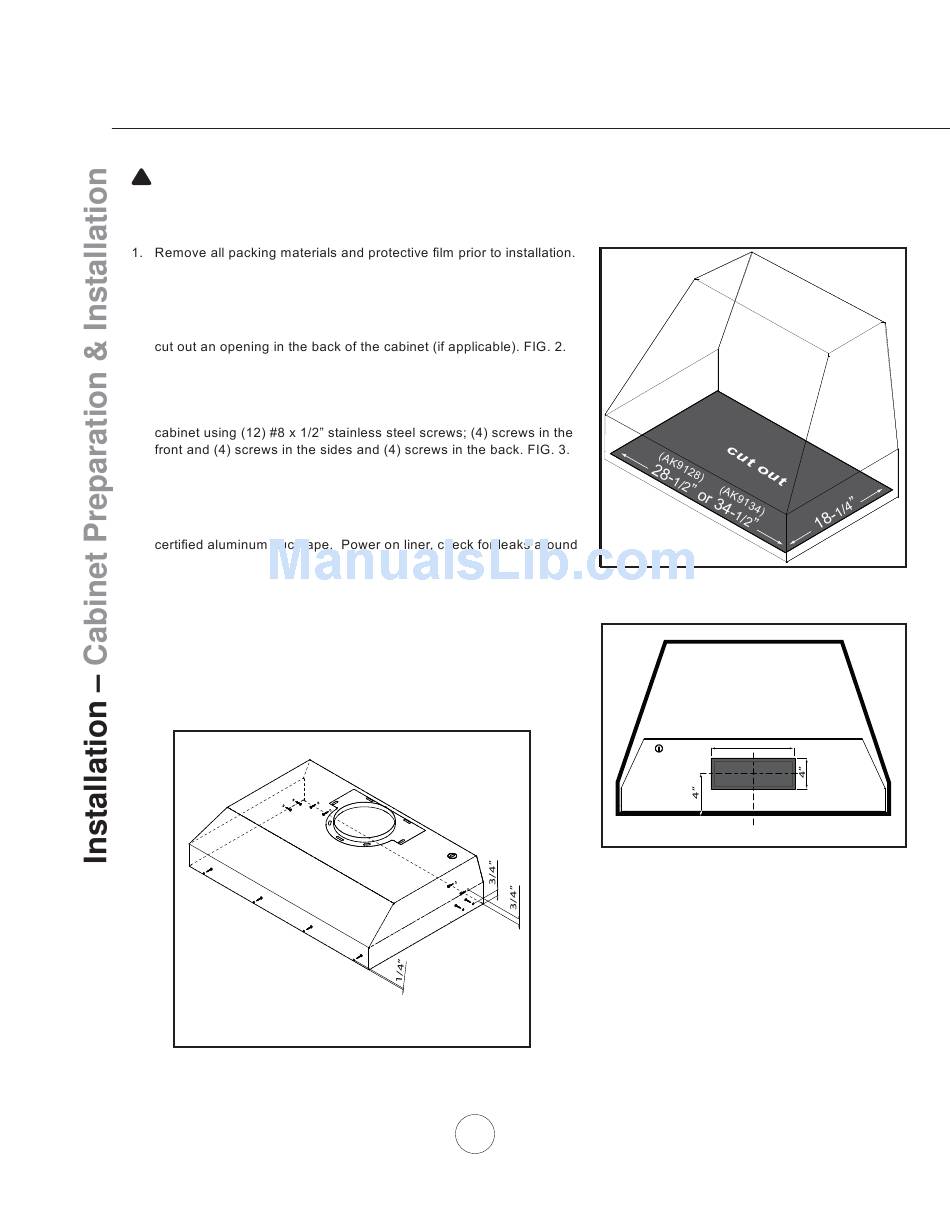

2. Cut out an opening in the bottom of the cabinet by following the
dimensions in FIG. 1. If ducting the one piece liner horizontally, also
3. Prepare liner for installation into cabinet by following the steps on
page 11. Continue to Step 4 after preparation is completed.
4. Lift liner into bottom opening of cabinet and secure to interior of
WARNING: Make sure the surface you are securing the liner to
is capable of holding the weight of AK91. Failure to do so may
cause personal injury or damage to cooking surface or counter.
5. Finalize installation of electrical and duct work. Seal duct work with
duct tape and verify proper operation.
NOTE: If access to top of liner is not available after installation,
electrical and duct work connection may need to be made prior to
installing the liner.
FIG. 3
10
www.zephyronline.com
FIG. 1
CABINET BACK
3-1/4in x 10in Rectangular
11"
C/L
FIG. 2
