TECNOEKA Srl ______________________________________________________________ use and instruction manual

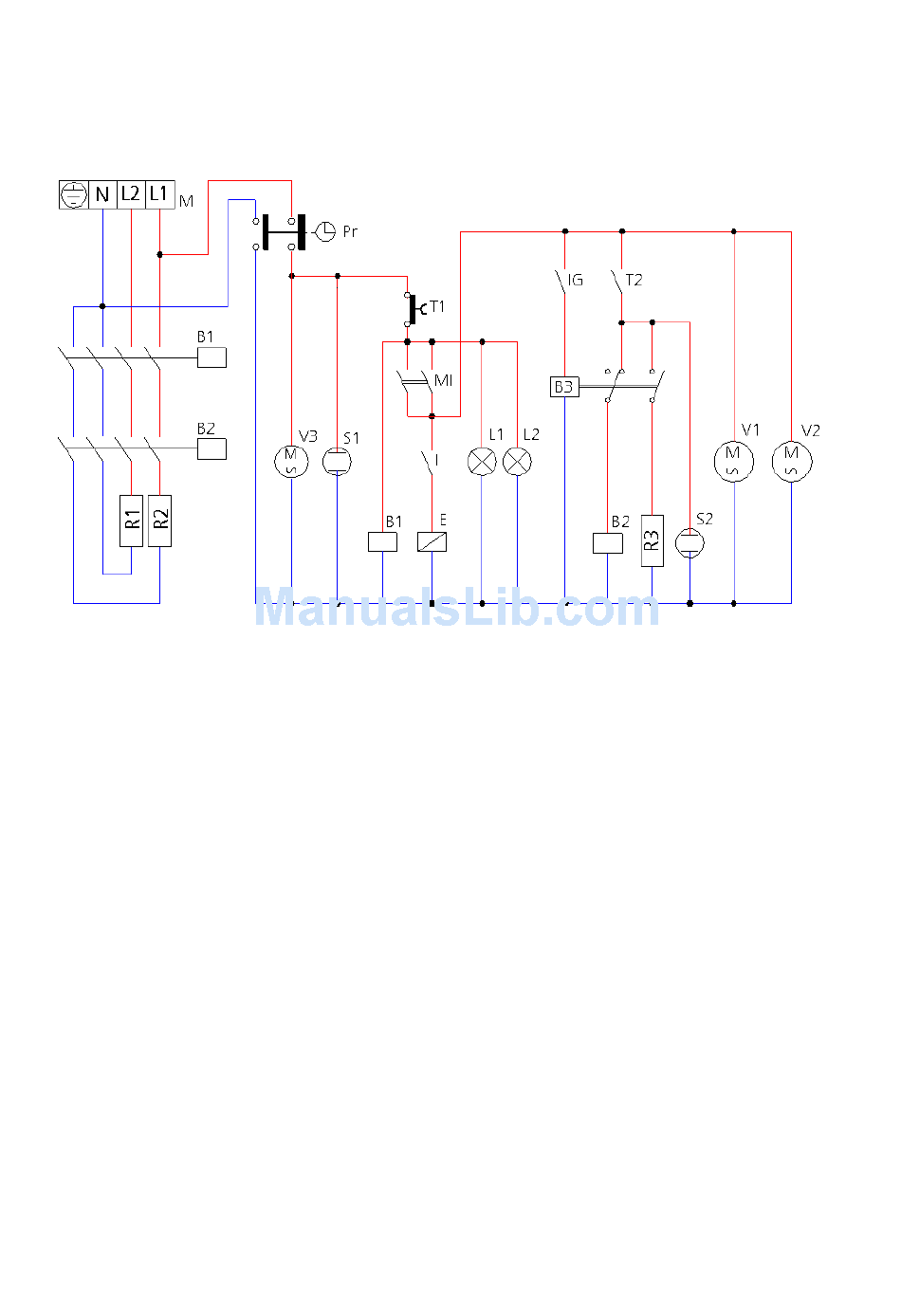

MODD. EKF 411.3 GRILL – EKF 464.3 GRILL
M Power terminal board
Pr "End of cooking" programmer
MI Door microswitch
I Umidifier switch
T1 Safety thermostat
T2 Control thermostat
IG GRILL switch
R1-R2 Circular heating elements
R3 Grill heating-element
page 14 ___________________________________________________________________________________________
Key Key
Key Key
L1-L2 Lighting lamps
V1-V2 Radial motoventilators
V3 Motoventilatore tangenziale
E Water solenoid-valve
B1-B2 Contactor coils
B3 Relais coil
S1 Programmer indicator light
S2 Thermostat indicator light
