Denon DN-MC6000 Service Manual

Professional dj multi-controller
Hide thumbs Also See for DN-MC6000:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
MODEL
DN-MC6000
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
S0416-1V04DM/DG1112

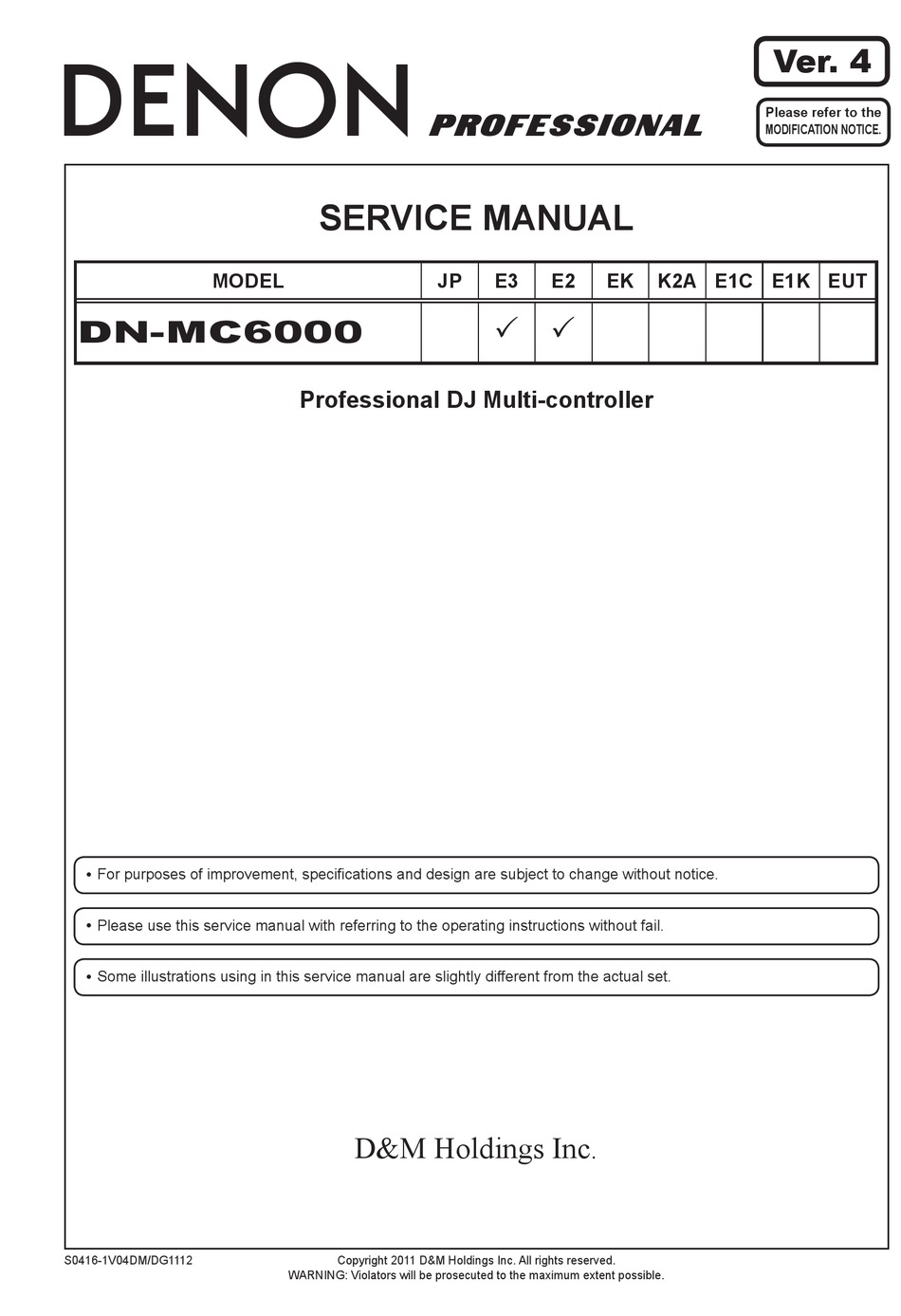

SERVICE MANUAL
JP
Professional DJ Multi-controller
D&M Holdings Inc.
Copyright 2011 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
E3
E2
EK
K2A E1C E1K EUT
P P
Ver. 4
Please refer to the
MODIFICATION NOTICE.

Advertisement

Table of Contents
loading

Related Manuals for Denon DN-MC6000

Summary of Contents for Denon DN-MC6000

  • Page 1 MODIFICATION NOTICE. SERVICE MANUAL MODEL K2A E1C E1K EUT DN-MC6000 Professional DJ Multi-controller • For purposes of improvement, specifications and design are subject to change without notice. • Please use this service manual with referring to the operating instructions without fail. • Some illustrations using in this service manual are slightly different from the actual set.

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check.
  • Page 3 NOTE FOR SCHEMATIC DIAGRAM WARNING: Parts marked with this symbol z have critical characteristics. Use ONLY replacement parts recommended by the manufacture CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective.

  • Page 4: Technical Specifications

    TECHNICAL SPECIFICATIONS n n Audio (0 dBu=0.775 Vrms, + 4 dBu (Max + 24 dBu) Level: 0 dBV =1 Vrms) • When RL=10 kΩ • PHONO inputs 2 Stereo Frequency response: 20 Hz – 20 kHz(±0.5 dB) Unbalanced RCA terminal THD: Less than 0.05% Input impedance:...
  • Page 5 DISASSEMBLY • Disassemble in order of the arrow of the figure of following flow. • In the case of the re-assembling, assemble it in order of the reverse of the following flow. • In the case of the re-assembling, observe "attention of assembling" it. • I f wire bundles are untied or moved to perform adjustment or parts replacement etc., be sure to rearrange them neatly as they were originally bundled or placed afterward. Otherwise, incorrect arrangement can be a cause of noise generation. SIDE PANEL Refer to "DISASSEMBLY 1.SIDE PANEL" and "EXPLODED VIEW" SIDE PANEL (Ref. No. of EXPLODED VIEW : 27) TOP PANEL Refer to "DISASSEMBLY 2. TOP PANEL" and "EXPLODED VIEW" FRONT PANEL (Ref. No. of EXPLODED VIEW : 31) I/O PCB ASS'Y MIC EQ PCB ASS'Y CHASSIS ASS'Y Refer to "DISASSEMBLY Refer to "DISASSEMBLY...
  • Page 6 About the photos used for descriptions in the "DISASSEMBLY" section. • T he direction from which the photographs used herein were photographed is indicated at "Direction of photograph: ***" at the left of the respective photographs. • Refer to the table below for a description of the direction in which the photos were taken. • Photographs for which no direction is indicated were taken from above the product. The viewpoint of each photograph (Photografy direction) Direction of photograph: B ［View from above］ Front side Direction of photograph: C Direction of photograph: D Direction of photograph: A...
  • Page 7 1. SIDE PANEL Proceeding : SIDE PANEL (1) Remove the screws. Direction of photograph: C Direction of photograph: D...
  • Page 8 2. TOP PANEL Proceeding : SIDE PANEL TOP PANEL → (1) Remove the screws. Direction of photograph: C Direction of photograph: D...
  • Page 9 NOTE： Turn to tighten a screws ① → ② … ⑧ . Direction of photograph: B Direction of photograph: A View from bottom...
  • Page 10 (2) Disconnect the connector wire. CONTROL PCB ASS’Y CN100A CN102 I/O PCB ASS’Y CN601 MIC EQ PCB ASS’Y...
  • Page 11 3. I/O PCB ASS'Y Proceeding : SIDE PANEL TOP PANEL I/O PCB ASS’ Y → → (1) Disconnect the connector wire. I/O PCB ASS’Y CN600 MIC EQ PCB ASS’Y (2) Remove the screws and the nuts. Direction of photograph: B Direction of photograph: D ※ Don’t lose CUSHION.
  • Page 12 4. MIC EQ PCB ASS'Y Proceeding : SIDE PANEL TOP PANEL MIC EQ PCB ASS’ Y → → (1) Disconnect the connector wire. I/O PCB ASS’Y CN600 MIC EQ PCB ASS’Y (2) Remove the screws, the nuts and the knobs. NOTE： Turn to tighten a screws ① → ② . I/O PCB ASS’Y MIC EQ PCB ASS’Y ※...
  • Page 13 (3) Open the STRRAIN RELIFE BUSHING. I/O PCB ASS’Y STRRAIN RELIFE BUSHING MIC EQ PCB ASS’Y...
  • Page 14 5. CHASSIS ASS'Y Proceeding : SIDE PANEL TOP PANEL CHASSIS ASS’ Y → → (1) Remove the knobs. KNOB (2) Remove the screws. NOTE： Turn to tighten a screws ① → ② … ⑧ .
  • Page 15 6. CONTROL PCB ASS'Y Proceeding : SIDE PANEL TOP PANEL CHASSIS ASS’ Y → → CONTROL SUB ASSY → (1) Disconnect the connector wire. CN105 CN103 CN104 (2) Remove the solder. SOLDER SOLDER...
  • Page 16 (3) Remove the nuts. (4) Remove the screws. (5) Remove the CONTROL PCB ASS'Y ※ Don’t lose CUSHION.
  • Page 17 (6) Remove the SOFT KNOB. SOFT KNOB 7. CROSS FADER Proceeding : SIDE PANEL TOP PANEL CHASSIS ASS’ Y → CROSS FADER → → (1) Remove the screws. (2) Remove the screws. 8. WHEEL ASS'Y Proceeding : SIDE PANEL TOP PANEL CHASSIS ASS’ Y → WHEEL ASS’ Y →...
  • Page 18 (2) Remove the screws. (3) Remove the SENCER PCB ASS'Y. NOTE： Note:Don't damege the Encorder plate. ENCORDER PLATE (4) Remove the E-RING. NOTE： Don't hold down the circumference of the shaft with a tool. Don't come out of the bearring when you transform a shaft. E-RING...
  • Page 19 2. Version Up Mode (1) Connect MC6000 to PC with USB cable. (2) Pressing (BACK+FWD+SHIFT) at the same time, then turn on DN-MC6000. (3) DN-MC6000 will enter versionup mode. CUE-1 will light. (4) Start 【DDJ Updater for DN-MC6000】 on PC.
  • Page 20 Seven places of LED turns on 4. Adjusting mode of the touch sense sensitivity (1) Pressing (LOAD A+LOAD B+SHIFT) at the same time, then turn on DN-MC6000. (2) Press CF MODE, and switch the jog wheel that you want to adjust.
  • Page 21 5. Stand-by checking mode. (1) Pressing (PARAM.1+PARAM.2+track selction knob+CF MODE) at the same time, then turn on DN-MC6000. (2) DN-MC6000 will enter Stand-by checking mode. Track selection knob will light. (3) Press the track selection knob to enter Stand-by mode. Stand-by LED will light.
  • Page 22 ABOUT REPLACE THE MICROPROCESSOR WITH A NEW ONE When replaced of the U-PRO (Microprocessor) or the Flash ROM, confirm contents of the following. After PWB Name Ref. No. Description Remark replaced CONTROL IC100 MC9S08AW60CPUE P/N : 704-6000-9601 CONTROL IC102 24LC128T-I/SN P/N : 704-6000-9602 After replaced A : Mask ROM (With software).

  • Page 23: Trouble Shooting

    TROUBLE SHOOTING FLOW CHART NO.1 (405-MC6000-2783 : I/O UNIT) The power cannot be turned on. N.G. Refer to FLOW CHART Is the fuse normal? NO.2<The fuse blows out.>. O.K. N.G. Is the FFC (22pin:CN100) connected correctly? Reconnect normaly. O.K. N.G. Check IC101 and perifery circuit, and replace it if Is +5V or more supplied to 22pin of CPU(IC100)? defective.(L708,SW700,C726,C727,IC101,C216,...
  • Page 24 FLOW CHARTNo.3 (405-MC6000-2783 : I/O UNIT) +6V is not outputted. N.G. Refer to FLOW CHART Is the fuse normal? NO.2<The fuse blows out.>. O.K. N.G. Check periphery circuit of Q700, and replace it if Is +10V or more supplied to 1pin of IC704? defective.(C728,C774,Q700,R711) O.K.
  • Page 25 FLOW CHARTNo.6 (405-MC6000-2783：I/O UNIT) A5V is not outputted. N.G. Refer to FLOW CHART Is +6V line voltage normal? NO.3<+6V is not outputted.>. O.K. Check IC703 and the periphery circuit, and replace it if defective. FLOW CHARTNo.7 (405-MC6000-2783 : I/O UNIT) +15V is not outputted.
  • Page 26 FLOW CHARTNo.9 (405-MC6000-2782 : CONTROL UNIT) The key operation is not functioning. Are the contact point and the installation state of the key switches (SW101 ～ SW133, N.G. Re-install the switches correctly or replace the poor SW135 ～ SW174), rotary switches switch.
  • Page 27 FLOW CHARTNo.10 (405-MC6000-2782 : CONTROL UNIT,405-MC6000-2784 : FRONT UNIT, 405-MC6000-2783 : I/O UNIT) Slide switches are not operating. Are the contact point and the installation state of N.G. Re-install the switches correctly or replace the poor the Slide switches (SW178,SW1002 ～ SW1005, switch.
  • Page 28 FLOW CHARTNo.11 (405-MC6000-2783 : I/O UNIT) Master output is not outputted correctly. ・ Set the channel input source switch to "LINE". ・ Set the CROSS FADER CONTOUR to "THRU". ・ Set the input level volume to "12：00". Check the input signal of IC600(4,5,6,7pin), ・...
  • Page 29 FLOW CHARTNo.12 (405-MC6000-2783 : I/O UNIT) Sound of LINE input is not outputted correctly. ・ Set the channel input source switch to "LINE". ・ Set the CROSS FADER CONTOUR to "THRU". Check periphery circuit of IC400 from JK400, and ・ Set the input level volume to "12：00". N.G.
  • Page 30 FLOW CHARTNo.13 (405-MC6000-2782 : CONTROL UNIT) JOG WHEEL is not operating. (BEND function is not operating.) N.G. Refer to FLOW CHART Is D5V outputted at 2pin of CN104? NO.5<D5V is not outputted.>. O.K. Check the contact point of CN104 and periphery Is encoder waveform(0-3.3V) outputted to 1pin and N.G.
  • Page 31 FLOW CHARTNo.14 (405-MC6000-2782 : CONTROL UNIT) JOG WHEEL is not operating. (Scratch function is not operating.) Refer to FLOW CHART NO.13 N.G. Is BEND function operating? <JOG WHEEL is not operating. (BEND function is not operating.)>. O.K. Check the periphery circuit of IC120, and replace it Is reference waveform outputted at 2pin,6pin and if defective.
  • Page 32 Personal notes:...

  • Page 33: Block Diagram

    BLOCK DIAGRAM X FADER*4 -15V +15V Switching Power STAND BY EEPROM BD9851 BD9702 DC POWER AT24C512 MOSFET SW (OPTION) +12V/3A XFADER*1 CH*4 Front PCB D3.3V ECHO*1 SLIDE SW MIC EQ*6 POWER BA05 DIFF. WHEEL*4 -14.06dB ENCODER*2 STAND BY AUX1 IN L/R EXT.
  • Page 34 LEVEL DIAGRAM...

  • Page 35: Wiring Diagram

    WIRING DIAGRAM DN-MC6000 WIRING DIAGRAM CN100A CN100 CN104 W104 405-HDJ9800-1020 M100 SENSOR PCB WHEEL1 WHEEL1 JOG WHEEL CN105 W105 405-HDJ9800-1020 M101 SENSOR PCB JOG WHEEL CN601 W601 W103 CN103 405-MC6000-2785 CROSS FADER PCB JK700 1 12V 2 PGND ADAPTOR 3 PGND...
  • Page 36 PRINTED WIRING BOARDS CONTROL UNIT (COMPONENT SIDE) 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
  • Page 37 CONTROL UNIT (FOIL SIDE) 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
  • Page 38 IO UNIT (COMPONENT SIDE) MIC EQ UNIT (COMPONENT SIDE) CROSS FADER UNIT (COMPONENT SIDE) SENSOR UNIT (COMPONENT SIDE) 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
  • Page 39 IO UNIT (FOIL SIDE) MIC EQ UNIT (FOIL SIDE) CROSS FADER UNIT (FOIL SIDE) 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
  • Page 40 SIGNAL LINE SCHEMATIC DIAGRAMS (1/4) POWER + POWER -...
  • Page 41 SIGNAL LINE SCHEMATIC DIAGRAMS (2/4) POWER + POWER -...
  • Page 42 D1001 R1001 C1020 1SS133 100/10 RESTART POWER STAND BY R1025 CN1000 W102 Q1000 SW1001 D1000 START A124TS SW1000 S.BY C1000 R1000 R1022 0.01 C1018 C1019 CON2 3.3K STAND BY 47/10 47/10 TO CONTROL C1021 ADGND AD5V AD5V AD12 AD13 2MID AD15 C1022 R1005...
  • Page 43 C221 C227 0.1u 0.1u C222 C228 C190 C191 C192 C193 C194 C195 C196 C197 C198 C199 0.01u 0.01u 0.01u 0.01u 0.01u 0.01u 0.01u 0.01u 0.01u 0.01u 0.01u 0.01u Q129 Q130 Q131 Q132 Q133 Q134 Q135 Q136 Q137 Q138 C223 C229 2SB1424 2SB1424 2SB1424...
  • Page 44 EXPLODED VIEW Grease (20mg) Product name:RS PASTE Maker:DAIZO corporation(Nichimoly) Shaft all area*2 Grease (16mg) Product name:RS PASTE Maker:DAIZO corporation(Nichimoly) Circle for hole*2 WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer.  印の部分は安全を維持するために重要 な部品です。従って交換時は必ず指定の...

  • Page 45: Parts List Of Exploded View

    PARTS LIST OF EXPLODED VIEW z Parts for which "nsp" is indicated on this table cannot be supplied. z P.W.B. ASS'Y for which "nsp" is indicated on this table cannot be supplied. When repairing the P.W.B. ASS'Y, check the board parts table and order replacement parts. z Parts indicated by the "...
  • Page 46 Ref. No. Part No. Part Name Remarks Q'ty 941411003880P MIXER SOFT KNOB 604-6000-554 941411003890P PLAY/CUE SOFT KNOB 604-6000-555 941411003900P MIC SOFT KNOB 604-6000-556 941411003910P CUE SOFT KNOB 604-6000-557 PULLEY WASHER( ∮ 11.6*76*0.25t) 606-F200-003 E RING 606-DJ3000-105 WASHER( ∮ 8*3.2*1t,NI) 606-Q2221-122 FOOT(PORON,BLACK, ∮...
  • Page 47 PACKING VIEW...
  • Page 48 352010013001P INST.MANUAL(CD-ROM) 429-DMC6000-090 941353100070P TRAKTOR LE2 429-MC6000-120 941352101160P VIRTUAL DJ (DISC) 429-MC6000E3-093 541110560009P INST MANUAL DNMC6000 502-DMC6000-3038 941543004330P DN-MC6000 QUICK GUIDE 502-DMC6000-3045 WARRANTY CARD ( ENGLISH ) 502-100E3-1772A PE BAG(240*340mm) 505-DJ2500H-014 941404005160P SIDE RACK 300-6000-1860 USB CABLE(L=1500mm) 408-100UG-087 POLYBAG(120*250mm) 505-HM500A-049...
  • Page 49 SEMICONDUCTORS Only major semiconductors are shown, general semiconductors etc. are omitted to list. The semiconductor which described a detailed drawing in a schematic diagram are omitted to list. 1. IC's MC9S08AW60 (CONTROL: IC100)
  • Page 50 MC9S08AW60 Block Diagram...
  • Page 51 24LC128 (CONTROL: IC101) 24LC128 Block diagram 24LC128 Pin Function...
  • Page 52 PIC16F616 (CONTROL: IC120, 121) PIC16F616 Block diagram...
  • Page 53 PIC16F616 Pin Function...
  • Page 54 TUSB3200 (I/O: IC800) TUSB3200 Block diagram...
  • Page 55 TUSB3200 Pin descriptions...
  • Page 56 DSP56724 (I/O: IC802) DSP56724 Block Diagram...
  • Page 57 PCM1804 (I/O: IC404,409,413,417,421) PCM1804 Block Diagram...
  • Page 58 PCM1804 Pin Function...
  • Page 59 PCM1796DBR (I/O: IC600) PCM1796DBR Block Diagram...
  • Page 60 PCM1796DBR Pin Function...
  • Page 61 PCM1690DCAR,SSOP-48 (I/O: IC606) PCM1690DCAR,SSOP-48 Block Diagram PCM1690DCAR,SSOP-48 Pin Function...
  • Page 63 TPA4411 (I/O: IC611) TPA4411 Block Diagram...
  • Page 64 TPA4411 Terminal Function...
  • Page 65 BD9851 (I/O: IC705) BD9851 Block Diagram...
  • Page 66 BD9851 Terminal Function...
  • Page 67 PARTS LIST OF P.W.B. UNIT ＊ Parts for which "nsp" is indicated on this table cannot be supplied. ＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions. Note: The symbols in the column "Remarks"...
  • Page 68 Ref. No. Part No. Part Name Remarks Q'ty D200,201 941263004510P LED ( L-7104QBD/TB/TD-D,BLUE ) 410-MU12B1-389 D202 941263004490P LED ( LTL-1CHY,YELLOW ) 410-CD6000-123 D203 941263004500P LED ( GREEN ) 410-CD6000-124 D229-236 SWITCHING DIODE(1SS355,UMD2,SMD,TAPING) 414-CD1000-075 D241-307 SWITCHING DIODE(1SS355,UMD2,SMD,TAPING) 414-CD1000-075 D308-310 DIODE(SMAJ6.0A,400W/6.0V,DO-214AC) 414-UDJ200-284 D50,51 941263002010S CHIP LED(JA-3020B,3*2,BLUE) 410-S700-375...
  • Page 69 Ref. No. Part No. Part Name Remarks Q'ty R190 CHIP RESISTOR(33OHM,1/10W,J,TP 0603,50V) 412-007USB-782 R191 CHIP RESISTOR(270 OHM,1/10W,J,TP ,50V) 412-007USB-698 R192-194 CHIP RESISTOR(33OHM,1/10W,J,TP 0603,50V) 412-007USB-782 R195 CHIP RESISTOR(56 OHM,1/10W,J,TP 0603,50V) 412-I1-1252 R197 CHIP RESISTOR(33OHM,1/10W,J,TP 0603,50V) 412-007USB-782 R198 CHIP RESISTOR(56 OHM,1/10W,J,TP 0603,50V) 412-I1-1252 R200-202 CHIP RESISTOR(33OHM,1/10W,J,TP 0603,50V)
  • Page 70 Ref. No. Part No. Part Name Remarks Q'ty R395-399 CHIP RESISTOR(33OHM,1/10W,J,TP 0603,50V) 412-007USB-782 VR100 941671004590P ROTARY VR(RD901F-40-16FB-B20K-00DJ8,L=16) 418-MC6000-650 VR102-105 941671004550P ROTARY VR(20K(B)*2,RD901F-40-20F-B20K-00DH2) 418-K1000-413 VR106-109 941671004600P ROTARY VR(RD901F-40-20FP-B20K-0CDJ8,L=20) 418-MC6000-639 VR110 941671004540P ROTARY VR(RD901F-40-16F-B20K-0CDJ8,L=16) 418-MC6000-643 VR111 941671004610P ROTARY VR(20KB,RD901F-40-20FP-B20K-00DJ8,L=20) 418-MC6000-638 VR112 941671004600P ROTARY VR(RD901F-40-20FP-B20K-0CDJ8,L=20) 418-MC6000-639 VR113-115 941671004560P VR(RD901F-40-20F-B20K-0CD)
  • Page 71 Ref. No. Part No. Part Name Remarks Q'ty New L101 INDUCTOR(10uH T-26mm) 415-MPG100-047 L102 CHIP COIL(22uH,1A) 415-MC6000-356 L103,104 INDUCTANCE(100uH J 0707-444-W077) 415-HT8015-040 P100,101 941674004620P SLIDE VR(RF60112L4103,10K(2BM)*2,L=23) 418-MC6000-636 SW64 941662001910S TACT SW(SFKHVBL3725,TAPING,H=7mm) 403-CDJ3300-195 SW100-133 941662001910S TACT SW(SFKHVBL3725,TAPING,H=7mm) 403-CDJ3300-195 SW134 941663004650P SW(SR1712F-0104-20F0A-N9-N,SR1712F) 403-IQ2-339 SW135-174 941662001910S TACT SW(SFKHVBL3725,TAPING,H=7mm) 403-CDJ3300-195...
  • Page 72 IO P.C.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty SEMICONDUCTORS GROUP IC400 00D9587036200 IC(NJM-4580M-TE2,SOP-8) 417-ST150-599 IC402,403 00D9587036200 IC(NJM-4580M-TE2,SOP-8) 417-ST150-599 IC404 941239004690P IC(PCM1804DBR,SSOP28) 417-MC6000-1006 IC405 00D9587036200 IC(NJM-4580M-TE2,SOP-8) 417-ST150-599 IC407,408 00D9587036200 IC(NJM-4580M-TE2,SOP-8) 417-ST150-599 IC409 941239004690P IC(PCM1804DBR,SSOP28) 417-MC6000-1006 IC410-412 00D9587036200 IC(NJM-4580M-TE2,SOP-8) 417-ST150-599 IC413 941239004690P IC(PCM1804DBR,SSOP28)
  • Page 73 Ref. No. Part No. Part Name Remarks Q'ty RESISTOR GROUP R402,403 CHIP RESISTOR(51KOHM,1/10W,J,TP 0603,50V) 412-900-977 R404,405 CHIP RESISTOR(100 OHM,1/10W,J,TP,50V) 412-CDVD2001-530 R406,407 CHIP RESISTOR(270 OHM,1/10W,J,TP ,50V) 412-007USB-698 R408,409 CHIP RESISTOR(270KOHM,1/10W,F,TP 0603,50V) 412-900-974 R410,411 CHIP RESISTOR(22K OHM,1/10W,0603,J,TP ,50V) 412-007USB-704 R412 CHIP RESISTOR(150 OHM,1/10W,0603,J,TP ,50V) 412-CD900-795 R413 CHIP RESISTOR(680 OHM,1/10W,J,TP ,50V)
  • Page 74 Ref. No. Part No. Part Name Remarks Q'ty R635,636 CHIP RESISTOR(6.8K,1/10W,J,0603,50V) 412-900-985 R637,638 CHIP RESISTOR(2.2K OHM,1/10W,0603,J,TP ,50V) 412-007USB-693 R639,640 CHIP RESISTOR(100K OHM,1/10W,0603 ,J,TP ,50V) 412-CDVD2001-537 R641,642 CHIP RESISTOR(2.7K OHM,1/10W,V,J,TP,50V) 412-007USB-677 R643,644 CHIP RESISTOR(820OHM,1/10W,J,TP 0603,50V) 412-900-1010 R645,646 CHIP RESISTOR(180OHM,1/10W,F,TP 0603,50V) 412-900-1014 R647-650 CHIP RESISTOR(6.8K,1/10W,J,0603,50V) 412-900-985...
  • Page 75 Ref. No. Part No. Part Name Remarks Q'ty R810 CHIP RESISTOR(82 OHM,1/10W,J,TP 0603,50V) 412-ID-1297 R811 CHIP RESISTOR(200 OHM,1/10W,J,TP 0603,50V) 412-MH2-1138 R813 CHIP RESISTOR(10K OHM,1/10W,J,TP ,50V) 412-CDVD2001-534 R819 CHIP RESISTOR(10K OHM,1/10W,J,TP ,50V) 412-CDVD2001-534 R821 CHIP RESISTOR(10K OHM,1/10W,J,TP ,50V) 412-CDVD2001-534 R823 CHIP RESISTOR(10K OHM,1/10W,J,TP ,50V) 412-CDVD2001-534 R825 CHIP RESISTOR(10K OHM,1/10W,J,TP ,50V)
  • Page 76 Ref. No. Part No. Part Name Remarks Q'ty ELEC. CAPACITOR ( 47uF/25V M 105℃ , TAPING 5*11 C462,463 413-HS100-181 )(Cd,Pb,Hg,Cr) C464-467 CHIP CAPACITOR(0.1uF/50V,Z) 413-DCM280-773 C468-471 CHIP CAPACITOR(22pF/50V,J,0603 TYPE,NPO) 413-CR701-5161 C472 CHIP CAPACITOR(1000pF/50V,K,0603 TYPE,X7R) 413-DCM280-768 C473,474 CHIP CAPACITOR(0.1uF/50V,Z) 413-DCM280-773 C475 CHIP CAPACITOR(1000pF/50V,K,0603 TYPE,X7R) 413-DCM280-768 C478,C479 E/C(47uF/16V,M,105℃...
  • Page 77 Ref. No. Part No. Part Name Remarks Q'ty C616,617 CHIP CAPACITOR(1500pF/50V,K,0603 TYPE,X7R) 413-DCM280-769 C618-621 CHIP CAPACITOR(0.1uF/50V,Z) 413-DCM280-773 C622-625 CHIP CAPACITOR((680pF/50V,J,0603 TYPE,NPO) 413-007USB-785 C626 CHIP CAPACITOR(68pF/50V,J,0603 TYPE,NPO) 413-DCM280-766 C627 CHIP CAPACITOR(68pF/50V,J,0603 TYPE,NPO) 413-DCM280-766 C628-631 ELEC.CAPACITOR(100uF/16V,M,105℃ ,TAPING 5*11) 413-PXE90-109 C634-637 CHIP CAPACITOR(470pF/50V,J,0603 TYPE,NPO) 413-007USB-786 C640,641 CHIP CAPACITOR(0.1uF/50V,Z)
  • Page 78 Ref. No. Part No. Part Name Remarks Q'ty C731 CHIP CAPACITOR(0.1uF/50V,Z) 413-DCM280-773 C732,733 CHIP CAPACITOR(0.1uF/50V,Z) 413-DCM280-773 C734 CHIP CAPACITOR(1000pF/50V,K,0603 TYPE,X7R) 413-DCM280-768 C735 ELEC. CAPACITOR(1000uF/25V) 413-MC6000-1202 ELEC. CAPACITOR((100UF/25V,TAPING,6.3*11,105℃ C736 413-MC6000-1191 C737 CHIP CAPACITOR(10uF/16V,1206 TYPE,Y5V,Z) 413-MC6000-1180 C738 CHIP CAPACITOR(1uF/16V,Z,0603 TYPE,Y5V) 413-007USB-797 C739 CHIP CAPACITOR(6800pF/50V,J,0603 TYPE) 413-900-944 C740...
  • Page 79 Ref. No. Part No. Part Name Remarks Q'ty J600,601 941643004890P XLR JACK 420-MC6000-353 JK400 941643004900P 2P RCA JACK 420-MC6000-350 JK401 941643004910P 6P RCA JACK 420-MC6000-352 JK403 941643004920P MIC JACK(03M8007P-H) 420-MH2-223 JK404 00D9587060904 3P PHONE JACK(6.4,JY-6313-02-030) 420-HMJ1001-5034A JK602 941643004930P 4P RCA JACK 420-MC6000-351 JK603,604 00D9587060904 3P PHONE JACK(6.4,JY-6313-02-030)
  • Page 80 Mic EQ P.C.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty SEMICONDUCTORS GROUP IC1000,1001 941239004980P IC(74HC4052D/74HC4052DT,SMD) 417-QSPAND-432 Q1000 00D9587057807 TRANSISTOR(TR DTA124TSATP) 416-KE200S-024 D1001 SWITCHING DIODE( ISS133 T-77) 414-3113-005 RESISTOR GROUP R1000 CARBON FILM RESISTOR((47K OHM,1/6W,J,T-26) 412-3113-063 R1001 CARBON FILM RESISTOR(470 OHM,1/6W,J,T-26) 412-3113-056 R1002-1009 CARBON FILM RESISTOR(1K OHM,1/6W,J,T-26)
  • Page 81 CROSS FADER P.C.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty CN103 3P SOCKET(CKM2001WV-3P,180°WHTIE) 404-HP1010K-259A VR101 941674005060P SLIDE VR(RA45D2F-211-17D1-0B20K-0025) 418-MC6000-644 SENSOR P.C.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty M301 90M-HW100770R IC(HEDS-9700#F51) 417-PS2-504 4P2.5 CONNECTOR WIRE(UL2468#28,L=90mm) 404-PS2-1444A...
  • Page 82 Personal notes:...
