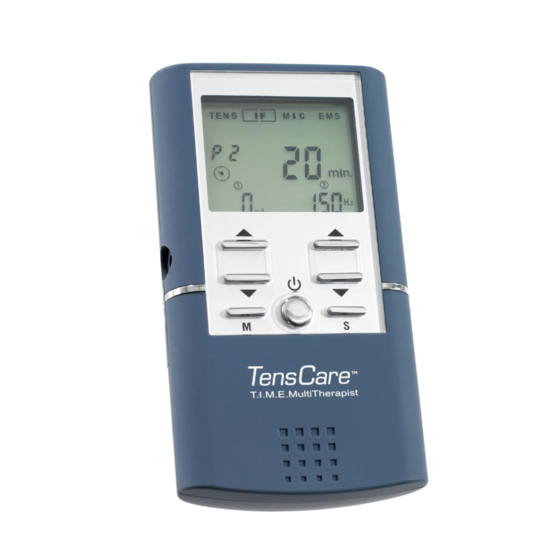

TensCare MT9000 Instruction Manual

Combo tens/ems/if/mic stimulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

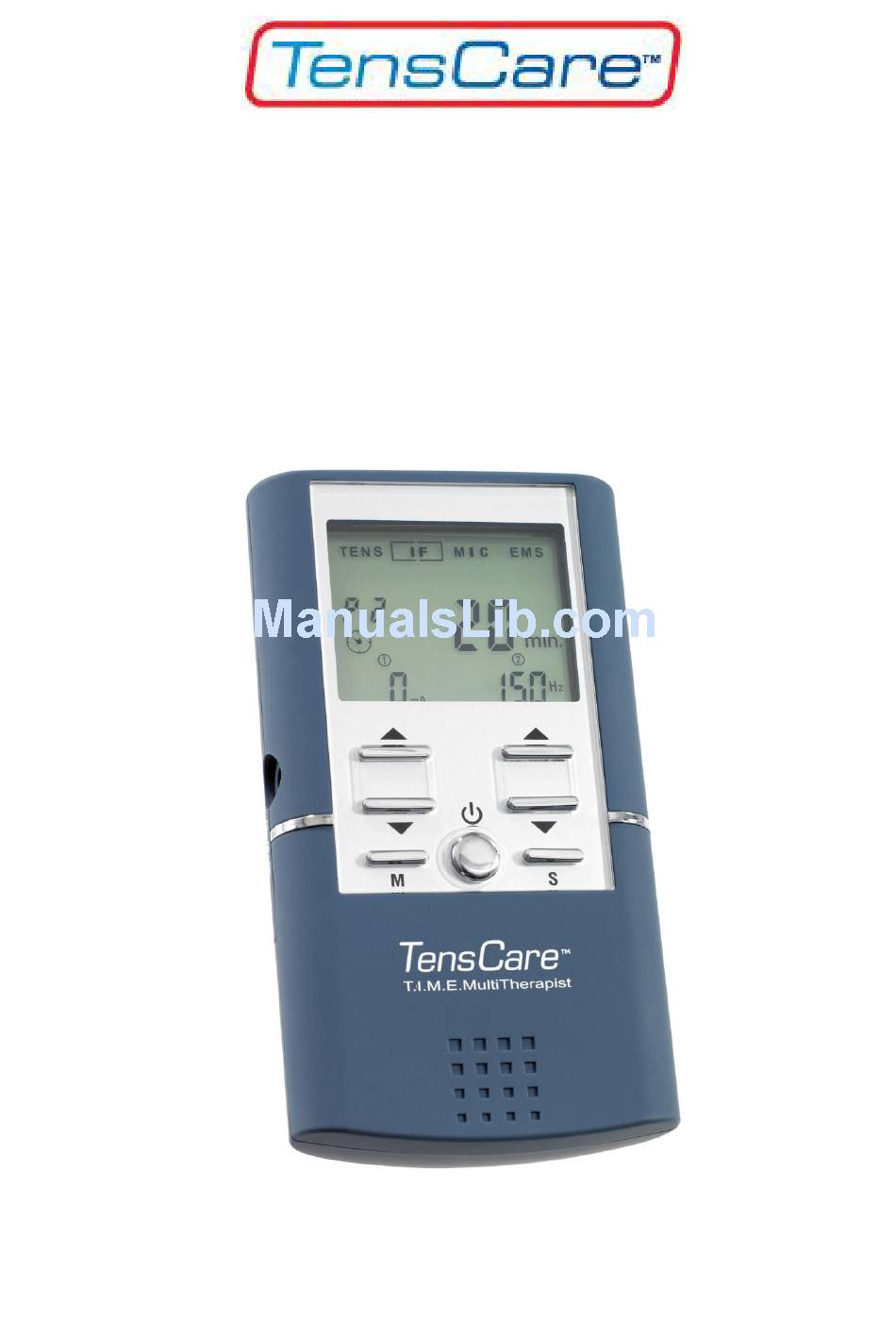

Instruction Manual

for the
T.I.M.E. Multitherapist
Model MT9000
www.tenscare.co.uk
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT9000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TensCare MT9000

Summary of Contents for TensCare MT9000

  • Page 1: Instruction Manual

    Instruction Manual for the T.I.M.E. Multitherapist Model MT9000 www.tenscare.co.uk...
  • Page 2 This manual is valid for the MT9000 Combo TENS/EMS/IF/MIC Stimulator This user manual is published by Shenzhen Dongdixin Technology Co.. Ltd Shenzhen Dongdixin Technology Co., Ltd does not guarantee its contents and reserves the right to improve and amend it at any time without prior notice. Amendments may however be published in new editions of this manual.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS I. SAFETY INFORMATION 1.1 General description 1.2 Medical background 1.3 Indications for use 1 .4 Contraindications 1.5 Warnings, Cautions, Adverse Reactions 2. PRESENTATION 2.1 Front and Rear panel 2.2 LCD display 3. SPECIFICATION 3.1 Accessories 3.2 Technical information 3.3 The waveforms of the stimulation programs 4.

  • Page 4: Safety Information

    SAFETY INFORMATON 1.1 General MT9000 Combo is a portable electrotherapy device featuring four therapeutic modes: Transcutaneous Electrical Nerve Stimulation (TENS),Electrical Muscle Stimulation(EMS),lnterferential(lF), and Microcurrent(MIC) which are used for pain relief and electrical muscle stimulation. The stimulator sends gentle electrical current to underlying nerves and muscle group via electrodes applied on the skin.
  • Page 5 EXPLANATION OF EMS Electrical Muscle Stimulation 1EMS) is an internationally accepted and proven way of treating muscular injuries. It works by sending electronic pulses to the muscle needing treatment; this causes the muscle to exercise passively. It is a product derived from the square waveform(ladder-shaped).Through the square wave pattern it is able to work directly on muscle motor neurons.

  • Page 6: Indications For Use

    1.3 Indications for use MT9000 ComboTENS/EMS/IF/MIC Stimulator may be used for the following conditions: 1) Symptomatic relief of chronic intractable pain 2) Post traumatic pain 3) post surgical pain 4) Relaxation of muscle spasm. 5) Increase of blood flow circulation...

  • Page 7: Warnings, Cautions, Adverse Reactions

    4) Electrodes must not be applied to sites that might cause current/stimulation to flow through the carotid sinus region (anterior neck) or transcerebrally (through the head). 5) Do not use this device if the patient has a demand-type cardiac pacemaker or any imnplanted defibrillator, 6) This device should not be used over poorly innervated areas.
  • Page 8 10) Stimulation should not take place while the user is connected to high- frequency surgical equipment. It may cause burn injuries in the skin under the electrodes, as well as problems with the stimulator. 11) Do not use the stimulator in the vicinity of shortwave or microwave therapy equipment, since this may affect the output power of the stimulator.
  • Page 9 6) The indications for use are listed above. Use for any other purpose may be dangerous. 7) Do not use this device for undiagnosed pain syndromes until you have consulted a physician. 8) Patients with an implanted electronic device, such as a cardiac pacemaker, implanted defibrillator, or any other metallic or electronic device should not use this device without first consulting a doctor.
  • Page 10 19) This device should not be used while driving, operating machinery, close to water, or during any activity in which involuntary muscle contractions may put the user at undue risk of injury. 20) Never use the device in rooms where aerosols (sprays) are used or pure oxygen is being administered.

  • Page 11: Presentation

    2. PRESENTATION 2.1 Front and Rear panel 1) Output socket: Electric signal is output after connection of the cable and adhesive electrodes. Channel 1. 2) Output socket: Electric signal is output after connection of the cable and adhesive electrodes. Channel 2. 3) [] Increases the output intensity of Channel 1.

  • Page 12: Lcd Display

    7) [] Increases the output intensity of Channel 2. In Setting state, adjusts the Program and the waveform parameters. 8) [▼] decreases the output intensity of Channel 1. In Setting state, adjusts the Program and the waveform parameters. Unlocks the keypad. 9) Parameter Selection [S]: press the button to enter setting state: you can select the difference parameters in conjunction with [] and [].

  • Page 13: Specification

    11) Pulse Rate indicator 12) Channel 2 output intensity. Also displays pulse rate or EMS relaxation time in setting state. 13) Channel 2 indicator 14) EMS relaxation time indicator 15) Display treatment time or EMS ramp up and ramp down time 16) Low-battery indicator 3.
  • Page 14 Technical specifications for Transcutaneous Electrical Nerve Stimulator (TENS) mode Waveform Mono-phase square pulse wave Adjustable, 0-105mA peak at 1000 ohm Load each channel. Pulse amplitude 1 mA/Step. Pulse Width Adjustable, from 50 to 300uS, 10uS/step Pulse Rate Adjustable,, from 1 to 150Hz, 1 Hz/step Burst rate: Adjustable, 0.5-5Hz, 0.1 Hz/step Burst (B) Pulse width adjustable, 50-300µS...
  • Page 15 Technical specifications for Interferential (IF) mode Waveform Bi-phase square pulse Adjustable, 0—70mA peak to peak at 1000 Ω Load each channel, Pulse amplitude 1 mA/Step Channel I — Fundamental frequency: 4000 Hz fixed Pulse Rate Channel 2-- Selectable frequency: 4001 to 4150 Hz Interference frequency: 1 to 150Hz Phase 125 uS...
  • Page 16 Technical specifications for Microcurrent (MIC) mode Waveform Mono-phase square pulse wave Adjustable, 0.00-0.70mA peak at 1000 Ohm load each channel. Pulse amplitude 0.01 mA/Step Pulse Width Adjustable, from 2 to 200 ms, 1 ms/step (PW.) P.W.< 1/2xP R. Pulse Rate Adjustable, from 1 to I50 Hz, I Hz/step (P R) PR<1/2xPW.

  • Page 17: The Waveforms Of The Stimulation Programs

    3.3 Waveforms of the stimulation programs Burst (B) Burst Frequency 7 pulses per burst Normal (N) Pulse Width Modulation cycle time Pulse Rate Modulation cycle time...
  • Page 18 Synchronous (S) ON TI ME OFF TIME Alternate (A) Delay (D) Delay time...

  • Page 19: Instruction For Use I9

    Interferential Microcurrent (Constant) 4. INSTRUCTIONS FOR USE 4.1 Battery 4.1.1 Check/Replace the battery When the battery needs to be changed:. 1) Slide the battery compartment cover and open. 2) Pull up the battery following the direction of the arrow shown above 3) Insert the 9V battery into the battery compartment 4) Make sure you are installing the battery correctly.

  • Page 20: Connect Electrodes To Lead Wires

    Caution: 1) Battery may be fatal if swallowed. Therefore, keep the battery and the product out of the range of children. If a battery was swallowed, consult a physician immediately. 2) If a battery has leaked, avoid contact with skin, eyes and mucus membranes, Rinse the affected spots with lots of clear water immediately and contact a physician right away.

  • Page 21: Electrode

    4) This device has two output sockets controlled by Channel 1 and Channel 2 at the top of the unit. For IF you must use both channels. For other modes, you may choose to use one channel with one pair of lead wires, or both channels with two pairs of lead wires.

  • Page 22: Turn On

    Caution: 1) Wash, degrease, and dry the skin before applying the self-adhesive electrodes. 2) Do not turn on the device when the self-adhesive electrodes are not positioned on the body. 3) Never remove the self-adhesive electrodes from the skin while the device is still turned on.

  • Page 23: Select The Therapeutic Mode

    4.6 Select the Therapeutic Mode There are 4 therapeutic modes available —TENS, IF, MIC, and EMS The therapeutic mode can be selected by pressing the [M] control. Caution: Consult your physician for your suitable therapeutic mode. 4.7 Steps to Set a New Program 4.7.1 TENS Setting Press the [S] button to enter the setting state.
  • Page 24 4) Set Pulse Width Pulse Width is adjustable from 50 uS to 300 uS. Press [S] button cycle to enter this menu, then press [▲] or [▼] buttons to adjust the setting. 5) Set Pulse Rate Pulse rate is adjustable from 1 Hz to 150 Hz (0.5 Hz to 5Hz for Burst). Press [S] button cycle to enter this menu, and then press [▲] or [▼] button to adjust the setting.
  • Page 25 4) Set Pulse Rate The pulse rate determines how many electrical impulses are applied through the skin each second. Press [S] button cycle to enter this menu. By pressing the [▲] and [▼] buttons to adjusting the setting. The pulse rate is adjustable from 1Hz to 150 Hz.
  • Page 26 9) Set Relaxation (OFF) time The OFF Time controls the duration of the relaxation interval. The relaxation time can be adjusted. Press [S] button cycle to enter this menu, and then press the [▲] and [▼] buttons to adjust the setting. Both channels’ stimulation is cycled on and off by the contraction and relaxation settings.
  • Page 27 4) Set Cycle Time Cycle time is adjustable from 5 to 30 seconds. Press [S] button cycle to enter this menu, and then press the [▲] and [▼] button to adjusting the setting. 4.7.4. MICROCURRENT Setting Press the [S] button cycle to enter the setting state. The settings can be adjusted according to the following steps: 1) Set the Therapeutic Program There are 3 programs in MIC therapeutic program available...

  • Page 28: Adjust Channel Intensity

    5) Set Cycle Time (Optional) Cycle time is adjustable from 5 to 30 seconds. Only modulation mode has this parameter setting. Press [S] button cycle to enter this menu and then press [▲] or [▼] button to adjust the setting. 4.8 Adjusting Channel Intensity Press the intensity control [▲] or [▼] button to control the intensity output.

  • Page 29: Low Battery Indicator

    Note: 1) If there is no operation in the panel for 3 minutes in the waiting state, the device will be turned off automatically. 2) In shutdown state, hold down the Channel 2 [▼] first and then press [ ] at the same time to restore factory parameter settings.

  • Page 30: Cleaning And Care

    6. CLEANING AND CARE 6.1 Tips for skin care To avoid skin irritation, especially if you have sensitive skin, follow these suggestions: I) Wash the area of skin where you will be placing the electrodes, using mild soap and water before applying electrodes and after taking them oft. Be sure to rinse soap off thoroughly and dry skin well.

  • Page 31: Electrodes

    6.3 electrodes Connector for inserting Lead Wire pin Adhesive pad Reusable.Selt-adherina Electrodes To use these electrodes: l) Attach the electrode to the lead wire. 2) Remove the protective backing from the electrode surface. Do not throw away the protective backing because it is reused after the treatment session has been completed. 3) Place the tacky surface to the prescribed skin area by pressing the electrode firmly against the skin.

  • Page 32: Maintenance

    6.4 Cleaning the patient Lead Wires Clean the lead wires by wiping them with a damp cloth. Coating them lightly with talcum powder will reduce tangles and prolong the life. 6.5 Maintenance I) Maintenance and all repairs should only be carried out by an authorized agency. The manufacturer will not be held responsible for the results of maintenance or repairs by unauthorized persons.

  • Page 33: Troubleshooting

    7. TROUBLESHOOTING If your device does not seem to be operating correctly, refer to the chart below to determine what may be wrong. Should none of these measures correct the problem, the device should be serviced. Problem Possible Cause Solution 1 Try fresh batteries.

  • Page 34: Storage

    8. STORAGE I) For a prolonged pause in treatment, store the device in a dry room and protect it against heat, sunshine and moisture. 2) Store the device in a cool, well-ventilated place 3) Never place any heavy objects on the device. 9.

  • Page 35: Electromagneticcompatibility(Emc)Tables

    10. ELECTROMAGNETIC COMPATIBILITY (EMC) TABLES Guidance and manufacturers declaration - electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The customer or the user should assure that it is used in such an environment Emissions testl Compliance Electromagnetic environment- guidance The device uses RF energy only for its internal RF emissions...
  • Page 36 Guidance and manufacturers declaration. Electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user should assure that it is used in such an environment Immunity lEC 60501 Electromagnetic environment- Compliance level test Test level guidance...
  • Page 37 Recommended separation distances between portable and mobile RF communications equipment and the device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters)and the device as recommended below, according to the maximum output power of the communications equipment...

  • Page 38: Normalized Symbols

    11. NORMALIZED SYMBOLS Batch code…100601 Serial number …0100001 Attention. Read the operating instructions Electrical devices are recyclable material and should not be disposed of with household waste after their useful life. Help us to protect the environment and save resources and take this device to the appropriate collection points.
  • Page 40 Made for TensCare Ltd 9 Blenheim Road Epsom Surrey KT19 9BE, UK +44 1372 723434 www.tenscare.co.uk info@tenscare.co.uk Manufacturer: Name:Shenzhen Dongdixln Technology Co.,LTD. Add:,XiliBaimang Xushang industrial estate No.3 Bldg Nanshan dlstrlct Shenzhen,CHINA 518108 Tel:0086-755-27652471 Fax:0086-755-27652674 Pub no I-MT9000-UK Revision 2 Feb 2013...
