SECTION 2
•
MAIN UNIT
+5 Regulator
(IC9: NJM2870)
Crystal filter
(FI1: FL-335)
FM IF IC
(IC1: TA31136FN)
IF amplifier
(Q4: 2SC5107)
EEPROM
(IC15: BR24L16FV)

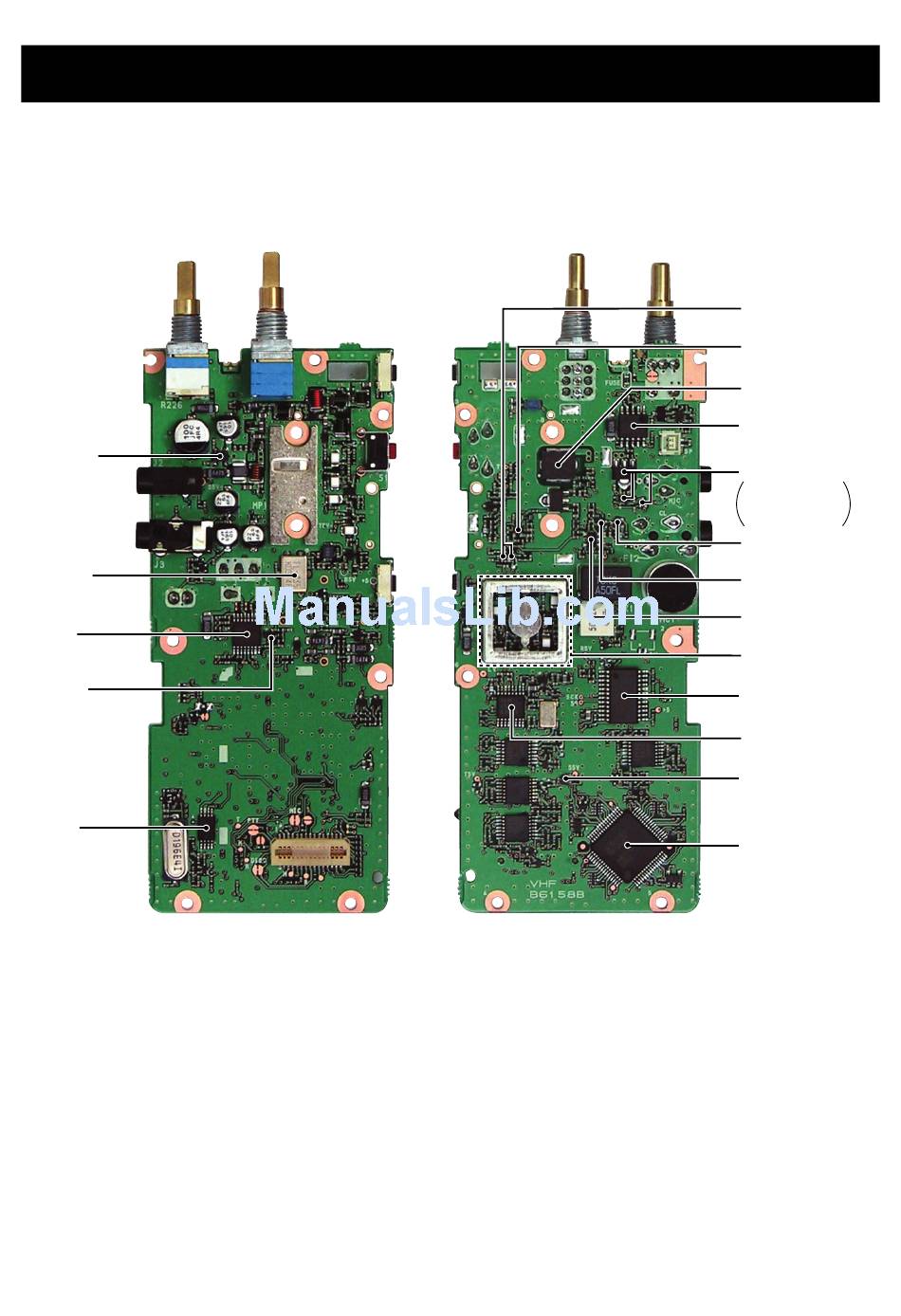

INSIDE VIEWS
TOP VIEW BOTTOM VIEW
2 - 1
TX/RX switches
(D14, D15: MA2S077)
Pre-driver
(Q9: 2SC5110)
Power amplifier
(Q7: RD07MVS1)
AF amplifier
(IC12: TA7368F)
S5 Regulator
Q23: 2SB1132
Q24: XP6501
Q25: UNR9113J
T5 Regulator
(Q21: 2SA1577)
Mute switch
(Q6: UNR9113J)
APC amplifier
(IC2: TA75S01F)
VCO circuit
D/A converter
(IC8: M62363FP)
PLL IC
(IC4: MB15A02)
R5 Regulator
(Q22: 2SA1577)
CPU
(IC13: HD6433687)
