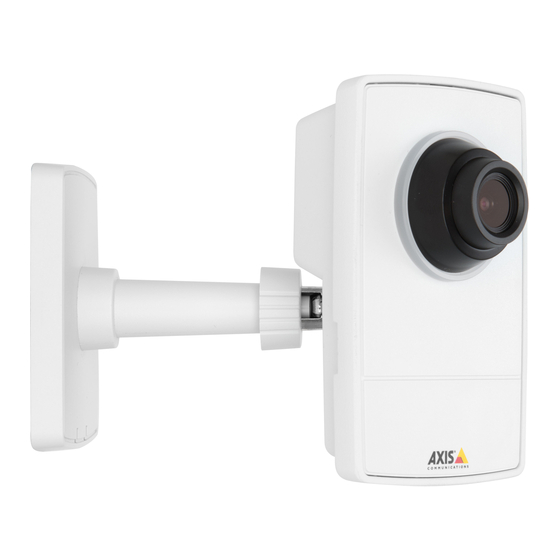

AXIS M1025 Network Camera

User Manual

Advertisement

Table of Contents
loading

Related Manuals for Axis M1025

Summary of Contents for Axis M1025

  • Page 1: User Manual

    AXIS M1025 Network Camera User Manual...
  • Page 2 This manual is intended for administrators and users of Europe AXIS M1025 Fixed Dome Network Camera, and is applicable to firmware 5.50 and later. It includes instructions for using and managing the This product complies with the applicable CE marking directives product on your network.
  • Page 3 전원: 4.9~5.1V DC, Max. 6.5W 또는Power over Ethernet IEEE by product, category, or phrase 802.3af/802.3at Type1 Class1 • report problems to Axis support staff by logging in to your private 적합성평가를 받은자의 상호 : Axis Communications AB support area 기자재의 명칭(모델명) : Network Camera (M1025) •...

  • Page 4: Table Of Contents

    AXIS Media Control (AMC) ........

  • Page 5: Hardware Overview

    AXIS M1025 Network Camera Hardware Overview Hardware Overview Status LED indicator Focus ring Lens Network connector (PoE) Power connector Lock ring Control button SD card slot Power LED 10. Network LED 11. Wireless indicator LED (activated on wireless models only) 12.

  • Page 6: Led Indicators

    Resetting the product to factory default settings. See page 46. • Connecting to an AXIS Video Hosting System service. See page 40. To connect, press and hold the button for about 3 seconds until the Status LED flashes green. •...

  • Page 7: Access The Product

    If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For information about how to discover and assign an IP address, see the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup...

  • Page 8: Set The Root Password

    See also Capture Mode on page 17. Set Power Line Frequency Power line frequency is set the first time the Axis product is accessed and can only be changed from Plain Config (see page 46) or by resetting the product to factory default.
  • Page 9 2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC) on page 11 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.
  • Page 10 AXIS M1025 Network Camera Access the Product Click the View Full Screen button and the video image will fill the entire screen. Press ESC (Escape) on the computer keyboard to cancel full screen view. The Record button is used to record the current video stream on your computer. The location where the recording is saved can be specified in the AMC Control Panel.

  • Page 11: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 20 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Page 12: Alternative Methods Of Accessing The Video Stream

    AXIS M1025 Network Camera Media Streams The AMC Control Panel can be used to configure various video settings. Please see the AXIS Media Control User’s Manual for more information. The AMC Control Panel is automatically installed on first use, after which it can be configured. Open the AMC Control Panel from: •...
  • Page 13 • The Axis product supports QuickTime 6.5.1 and later. • QuickTime may add latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Page 14: Set Up The Product

    Set Up the Product Set Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Page 15: Video

    Use the mouse to move and resize the rectangle, or enter the number of pixels in the Width and Height fields and click Apply. • The Live View page in Internet Explorer with AXIS Media Control (AMC) in Windows. Right-click in the image and select Pixel counter. Use the mouse to move and resize the rectangle. Image The default image settings can be configured under Video>...

  • Page 16: Stream Profiles

    The GOV length is the number of frames between two consecutive I-frames. Increasing the GOV length may save considerably on bandwidth requirements in some cases, but may also have an adverse affect on image quality. The Axis product supports the following H.264 profile(s): •...

  • Page 17: Camera Settings

    A capture mode with a high maximum frame rate has reduced light sensitivity and vice versa. Capture mode defines the maximum resolution and maximum frame rate available in the Axis product. A capture mode with a large maximum resolution has a reduced maximum frame rate and vice versa.

  • Page 18: View Area

    To change this setting go to Setup > Video > Camera Settings White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The Axis product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light source from the drop-down list.

  • Page 19: Overlay

    For more information about privacy masks, see Privacy Mask on page 20. To use an overlay image, the image must first be uploaded to the Axis product. The uploaded image should be a Windows 24-bit BMP image with maximum 250 colors. The image width and height, in pixels, must be exactly divisible by 4 and cannot be larger than the maximum image resolution.

  • Page 20: Privacy Mask

    For more examples of hexadecimal values, see the online help To scale the image automatically, select Scale with resolution. The image will be scaled down to fit the resolution used by the Axis product. 5. Click Save. To select the image to use as overlay: 1.
  • Page 21 AXIS M1025 Network Camera Set Up the Product The Privacy Mask List (Video > Privacy Mask) shows all the masks that are currently configured in the Axis product and indicates if they are enabled. You can add a new mask, re-size the mask with the mouse, choose a color for the mask, and give the mask a name.

  • Page 22: Configure The Live View Page

    Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...
  • Page 23 AXIS M1025 Network Camera Configure the Live View Page User Defined Links To display user-defined links in the Live View page, select the Show custom link option, give the link a name and then enter the URL to link to. When defining a web link do not remove the 'http://' from the URL address. Custom links can be used to run scripts or activate external devices connected to the product, or they can link to a web page.

  • Page 24: Ptz (Pan Tilt Zoom)

    AXIS M1025 Network Camera PTZ (Pan Tilt Zoom) PTZ (Pan Tilt Zoom) The PTZ menu is available if digital PTZ (pan, tilt and zoom) is enabled in the selected view area. For more information on view areas, see View Area on page 18.
  • Page 25 AXIS M1025 Network Camera PTZ (Pan Tilt Zoom) • Tilt control • Zoom control To disable specific controls, deselect the options under Enable/Disable controls. Note Disabling PTZ controls will not affect preset positions. For example, if the tilt control is disabled, the product can still move to...

  • Page 26: Detectors

    Motion Detection Parameters on page 27. Once motion detection windows are configured, the Axis product can be configured to perform actions when motion is detected. Possible actions include uploading images and start recording. For more information, see Set Up Action Rules on page 31.

  • Page 27: Motion Detection Windows/Parameters

    AXIS M1025 Network Camera Detectors Note • Using the motion detection feature may decrease the product’s overall performance. • The position of the Motion Detection Window is relative to the orientation of the Camera. Changing the orientation of the camera will also change the position of the Motion Detection Window.
  • Page 28 AXIS M1025 Network Camera Detectors Note • To trigger on small objects or movements, use several small motion detection windows rather than one large window, and select a low object size. • To avoid triggering on small objects, select a high object size.

  • Page 29: Applications

    Manual installation — obtain the license key from the application vendor and upload the key to the Axis product To request a license, the Axis product serial number (S/N) is required. The serial number can be found on the product label and under System Options >...
  • Page 30 AXIS M1025 Network Camera Applications If the Axis product is reset to factory default, installed applications and their settings are removed. For information about factory default, see Reset to Factory Default Settings.

  • Page 31: Events

    Events The Event pages allow you to configure the Axis product to perform actions when different events occur. For example, the product can start a recording or send an email notification when motion is detected. The set of conditions that defines how and when the action is triggered is called an action rule.
  • Page 32 Secure (HTTPS). Send Notification Specify login information for the HTTPS server and validate Send Video Clip the server’s certificate. If there is a proxy between the Axis product and the HTTPS server, also specify the proxy settings. Network Share Send Images A network share can also be used as a storage device for recorded video.

  • Page 33: Create Schedules

    Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see Certificates on page 37.

  • Page 34: Recordings

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. For information about storage devices, see Storage on page 43. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.

  • Page 35: Languages

    Languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Page 36: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
  • Page 37 4. Set the HTTPS Connection Policy for the different user groups. 5. Click Save to enable the settings. To access the Axis product via the desired protocol, in the address field in a browser, enter https:// for the HTTPS protocol and http:// for the HTTP protocol.

  • Page 38: Date & Time

    To include date and time in the overlay text, go to Video and select Include date and Include time. Network Basic TCP/IP Settings The Axis product supports IP version 4 and IP version 6. Both versions can be enabled simultaneously, and at least one version must always be enabled.
  • Page 39 System Options IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.

  • Page 40: Advanced Tcp/Ip Settings

    5. Close the command prompt when the product responds with Reply from 192.168.0.125:... or similar. 6. Open a browser and type http://<IP address> in the Location/Address field. For other methods of assigning the IP address, see the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup Note •...
  • Page 41 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Page 42 SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other side of a firewall or proxy server. This functionality is useful if the Axis product is located on a local network behind a firewall, and notifications, uploads, alarms, etc need to be sent to a destination outside the local network (for example the Internet).

  • Page 43: Storage

    To prevent corruption of recordings, the SD card should always be unmounted before it is ejected. The SD card is automatically mounted when the card is inserted into the Axis product or when the product is started. A manual mount is only required if the card has been unmounted and not ejected and re-inserted.

  • Page 44: Maintenance

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Page 45: Support

    Click Default to reset all settings, including the IP address, to the factory default values. This button should be used with caution. The Axis product can also be reset to factory default using the control button, see Reset to Factory Default Settings on page 46.

  • Page 46: Advanced

    For more information, see www.axis.com/developer File Upload Files, for example webpages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.

  • Page 47: Troubleshooting

    To upgrade the product’s firmware: 1. Save the firmware file to your computer. The latest version of the firmware is available free of charge from Axis website at www.axis.com/techsup 2. Go to Setup > System Options > Maintenance in the product’s webpages.

  • Page 48: Symptoms, Possible Causes And Remedial Actions

    Troubleshooting 5. Reinstall the product, referring to the Installation Guide. If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/techsup/ Symptoms, Possible Causes and Remedial Actions Problems setting the IP address Try the installation again.
  • Page 49 Check with your network administrator to see if there is a firewall preventing viewing. Installation of additional Configure the Axis product to use a Java applet for updating video images in your browser. Go to ActiveX component Setup > Live View Config and select Java applet under Default viewer.

  • Page 50: Problems Retrieving Additional Video Streams

    Stream 2: 1280 x 720, can use lower resolutions there might be too many Stream 3: 720 x 576, used for Axis Camera Application Platform, can use lower resolutions viewers…’ in Firefox / Safari If 1080p capture mode without HDMI support is selected the following streams are available: ‘Error reading video Stream’...

  • Page 51: Technical Specifications

    AXIS M1025 Network Camera Technical Specifications Technical Specifications Item Specifications Function/group Camera Model AXIS M1025 Image sensor 1/2.7” progressive scan RGB CMOS Lens 3.6 mm, F2.8, fixed iris, adjustable focus Horizontal angle of view: 94.3° Vertical angle of view: 50.2°...
  • Page 52 Technical Specifications Item Specifications Function/group System Application Open API for software integration, including VAPIX® and AXIS Camera Application Integration Programming Platform from Axis Communications; specifications available at www.axis.com Interface AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profile S, specifications available at www.onvif.org...

  • Page 53: Performance Considerations

    Viewing on poorly performing client computers lowers perceived performance. Frame rate affected. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect performance. • If the product includes several camera units, running applications on multiple cameras may affect the frame rate.
  • Page 54 User Manual Ver. M5.2 AXIS M1025 Network Camera Date: May 2015 © Axis Communications AB, 2015 Part No. 63354...
