Well Water Purifier
Owner's Manual and Usage Guide
MODEL ZO-400 / ZO-400-25
P/N: 4-1377_Rev.A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the aquaclipse ZO-400 and is the answer not in the manual?

Questions and answers

Related Manuals for Del ozone aquaclipse ZO-400

Summary of Contents for Del ozone aquaclipse ZO-400

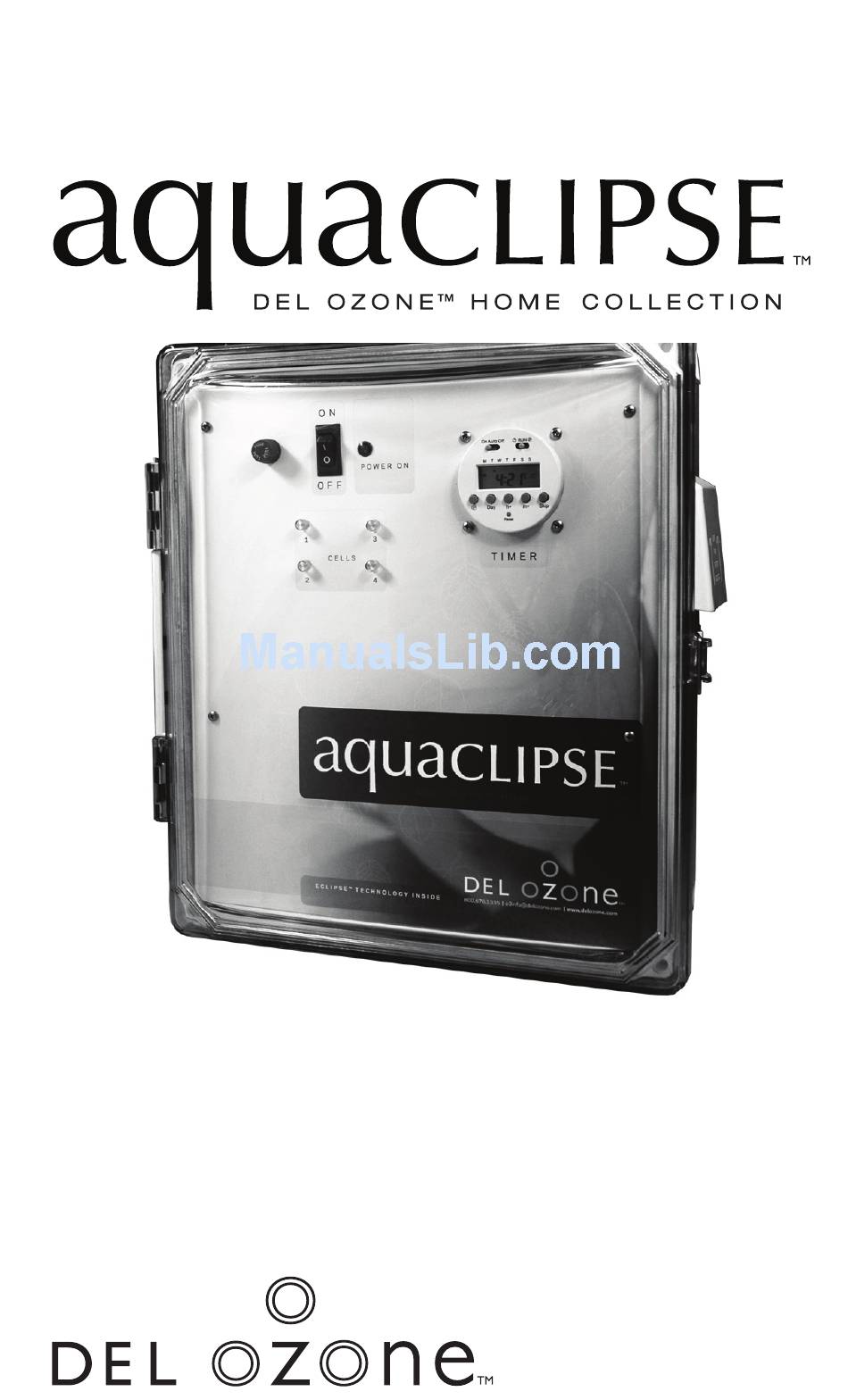

  • Page 1 Well Water Purifier Owner’s Manual and Usage Guide MODEL ZO-400 / ZO-400-25 P/N: 4-1377_Rev.A...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS Read and Follow All Instructions • Read this manual completely before attempting installation. • All permanent electrical connections should be made by a qualified electri- cian. • For cord and plug-connected units, connect to a grounding type receptacle only.

  • Page 3: Table Of Contents

    Aquaclipse™ Installation & Operation Manual Table of Contents SECTION 1. General Information 1A Description 1B Specifications SECTION 2. Installation 2A Recommended Installation 2B Electrical SECTION 3. Controls 3A Power 3B Timer SECTION 4. Water Treatment SECTION 5. Maintenance and Service 5A System Overview 5B Cleansing the Dispersion Stone 5C Troubleshooting...

  • Page 4: Section 1 General Information

    SECTION 1 General Information Description The DEL Ozone Aquaclipse Corona Discharge (CD) ozonator is designed to pump ozone gas into liquids for purification on new, existing or multiple well water tanks. Enjoy refreshing, crystal clear water that’s free of chlorine, chemical byproducts and chemical residue as the unit eliminates hydrogen sulfide odor along with 99.9-99.999% of the microorganisms...

  • Page 5: Section 2 Installation

    Aquaclipse™ Installation & Operation Manual SECTION 2 Installation Recommended Installation for wells and holding tanks Refer to Figure 2 (Next Page) The ZO-400 must be securely mounted to a clean surface sheltered from direct exposure to the elements (rain, sun and dirt).

  • Page 6: Electrical

    SECTION 3 Controls Power The Del Ozone Aquaclipse has a power switch on the front panel for turning the system on and off. The light next to the switch will illuminate when the system is powered on.

  • Page 7: Timer

    Aquaclipse™ Installation & Operation Manual Timer The DEL Ozone Aquaclipse has a digital timer on the front panel for timed operation control. When the timer is set to power the system, the 4 indicator lights on the front panel below the timer will light green when the ozone cells are functioning properly.

  • Page 8: Section 5 Maintenance And Service

    When used in con junction with a particulate filter, ozone will also remove excess minerals including iron, manganese, and lead, as well as radon and sulfur gases. It is recommended you check your filters about 1 month after installation of ozone equipment to gage rate of clogging. Ozone will extend the useful life of both water vessels and equipment since it is impossible to over-treat the water.
  • Page 9 Aquaclipse™ Installation & Operation Manual Lift the face plate off and out of the way being careful not to damage any of the wiring attached. To order replacement parts, refer to Figure 3 for part numbers and descriptions. Description Part No. Ozone Module 5-1308-01 (OZONE CELL...

  • Page 10: Cleansing The Dispersion Stone

    Cleaning the dispersion stone Periodically, the dispersion stone may clog up with mineral deposits reducing the amount of ozone flow through the stone. The stone will appear a darker color. Remove the dispersion stone. Soak it in lemon juice or vinegar for a few hours to overnight until the discoloration is gone and the dispersion stone is a uniform color.

  • Page 11: Appendix A - Timer Controls

    Aquaclipse™ Installation & Operation Manual 5C.3 SYMPTOM: everything works correctly, but water is dirty Probable cause Corrective action Excessive load If extra high load is normal, continue 24hr. operation and compliment with small amount of chlorine, bromine treatment pH not balanced Adjust pH to 7.2 to 7.8 Total alkalinity incorrect Adjust total alkalinity to...
  • Page 12 NOTE: to save time you can set up each on/off cycle; A) to be unique for each individual day, or B) for Monday to Friday (days 1 to 5), or C) for weekends only (days 6 & 7), or D) for all days except Sunday (days 1 to 6) , or … E) the entire week at one time.
  • Page 13 Aquaclipse™ Installation & Operation Manual #3 Setting each cycle to “switch off” Slide RUN switch to “P” press “p” button, note switch cycle number changes to 2 and bulb blinks, indicating Switch-off (circuit opens). (Hint: even numbers indicate a “switch- off”...

  • Page 14: Warranty

    DEL Ozone warrants that it or its authorized dealers will repair or replace, at its option, any part of such products proven to be defective in materials or workmanship within ONE (1) year from the date of retail purchase of such products.
  • Page 15 EPA Estab. No. 071472-CA-001 San Luis Obispo, California, 93401 Phone 805.541.1601 800.676.1335 805.541.8459 www.delozone.com...
