Page 1: Product Information

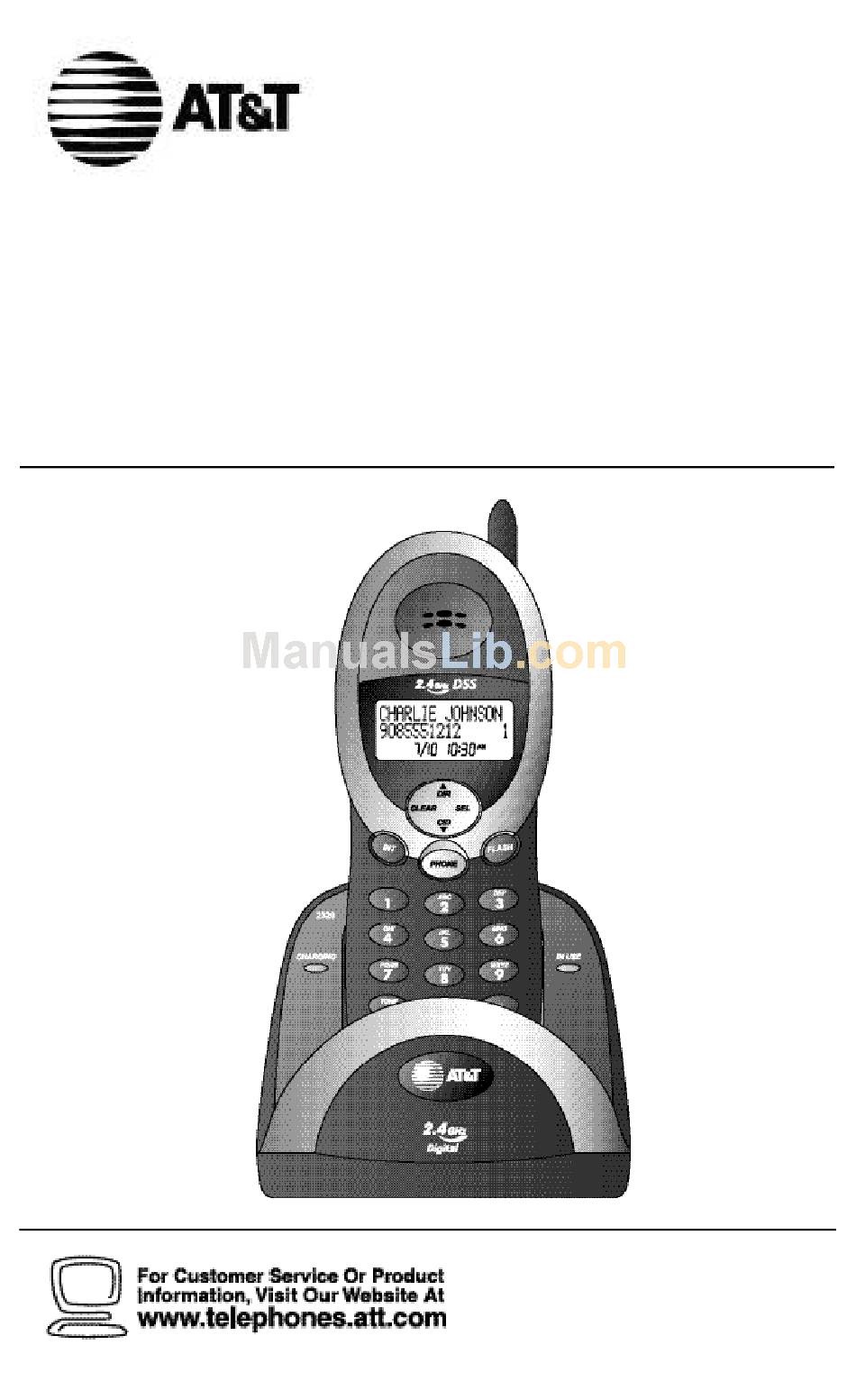

USER’S MANUAL Pa rt 2 2.4 GHz Cordless Telephone 2320 with Caller ID/Call Wa i t i n g Please also read Part 1 — Important Product Information © 2002 Advanced American Telephones. All rights reserved. AT&T and the Globe Design are trademarks of AT&T Corp. licensed to Advanced American Telephones. - Page 2 Visit us at www.telephones.att.com © 2002 Advanced American Telephones. All rights reserved. AT&T and the Globe Design are trademarks of AT&TCorp. licensed to Advanced American Telephones. Printed in China. Issue 2AT&T 08/02...
-
Page 3: Table Of Contents
CONTENTS BEFORE YOU BEGIN ..1 Parts List ....1 About Caller Identification (Caller ID)... . . 2 About the Call Log . -
Page 4: Before You Begin
BEFORE YOU BEGIN P a rts List Your box should include: NiCd battery pack This User’s Manual Handset Telephone line cord Quick Start Guide Power adapter Base unit... -
Page 5: About Caller Identification (Caller Id)
BEFORE YOU BEGIN About Caller Identification (Caller ID) This product has a Caller ID with Call Waiting feature that works with service from your local phone service provider. Caller ID with Call Waiting lets you see who’s calling before you answer the phone, even when you’re on another call. -
Page 6: Installation
INSTALLATION Base Installation ¥ NOTE: Install the base unit away from electronic equipment, such as personal computers, television sets or microwave ovens. Avoid excessive heat, cold, dust or moisture. Connect the power cord to the base and an electrical outlet not controlled by a wall switch. Standard electrical outlet... -
Page 7: Install The Handset Battery
Install the handset battery. Use only AT&T Battery 3301,SKU# 91076. a) Remove battery compartment cover by pressing on indentation and sliding downward. Charge the handset battery. • Place the handset in the base. • Charge the battery for at least 12 hours. After the first charge,the battery will charge in eight hours. -
Page 8: Headset
Headset You can use this telephone hands-free when you install any industry standard 2.5 mm headset (purchased separately). For best results use an AT&T 2.5 mm headset. Plug the headset into the jack located on the right side of the handset (under the small rubber flap). Do not force the connection, but make sure the plug fits securely. -
Page 9: Feature Setup
FEATURE SETUP F e a t u re Setup Menu ¥ NOTE: When you follow the directions to “Clear Message Waiting”or “Set Dial Method” you change settings for ALL registered handsets.All other features must be set separately at each handset . (See “About Adding Handsets”on page 2 for details about additional handsets.) Press... -
Page 10: Ring Volume
Ring Vo l u m e Adjust the volume of the handset ri n ge r. Setting vo l u m e t u rns the ri n ger off and displays the ri n ger off icon ) on scre e n . The default setting is . Press . -
Page 11: Ring Pattern
Ring Pattern The external ring pattern sets which ringer you hear when you have an outside call. The internal ring pattern sets which ringer you hear when you have an intercom call from another registered handset (if installed). External ring pattern default setting is ; intercom ring pattern default setting is . -
Page 12: Key Click
Key Click When this feature is on,each key press makes a sound. Default setting is Press . The screen displays Press Press . The screen displays Press — OR — Press Press to save the displayed setting. until the screen displays to select to select... -
Page 13: Handset Name
Handset Name You can customize the handset to display a name or word of your choice (up to 16 characters) in place of • • The default setting is To change the name again at any time,simply repeat Steps 1-5. on the idle screen and (during intercom calls). -
Page 14: Language Setting
Language Setting You can set each registered handset so the display appears in English, Spanish, or French. The default setting is Press . The screen displays Press Press . The screen displays the cur rent language Press language choices. Press to save the displayed language. -
Page 15: Clear Message Waiting
Clear Message Wa i t i n g If you subscribe to telephone company voice mail service,and the message waiting indicator remains on even after you have reviewed all messages, follow the directions below to turn off the indicator. ¥ NOTE: These steps will clear the message waiting indicator for ALL registered handsets (See “About Adding Handsets”on page 2 for details about... -
Page 16: Set Dial Method
Set Dial Method ¥ NOTE: When you change the dial method setting ALL registered handsets are affected. (See “About Adding Handsets”on page 2 for details about additional handsets.) This phone comes set for touch tone ( If you have dial pulse (rotary) service, you must set the dial method to Press . -
Page 17: Telephone Operation
TELEPHONE OPERATION Idle Screen When the handset is within range of the base and not on a call or in Feature Setup mode,the screen displays If you assign a name to the handset (see “Handset Name”on page 10),that name will be displayed instead of Make a Call Answer a Call... -
Page 18: Call Timer
Call Timer When the handset is on a call,the screen displays a timer whether the call is external or intercom. For example: Speakerphone When the handset speakerphone is activated, you can use the phone hands-free. Stand the handset on a flat surface (not in the base) and continue your conversation. -
Page 19: Redial
Redial The last five phone numbers dialed at the handset are stored in redial memory. Press call is displayed,then press number — OR — Press number you want to call is displayed. Press dial the displayed number. Flash/Call Waiting If you subscribe to Call Waiting service with your local telephone service provider, you can answer a new incoming call without losing your current call. -
Page 20: Page/Handset Locator
NOTE: If you have installed additional AT & T 2300 handsets (purchased sep a ra t e ly) with yo u r 2320 base, p ressing re gi s t e red handsets. Page the handset(s) from the base by pre s s i n g . -
Page 21: Display Screen Messages
DISPLAY SCREEN MESSAGES SCREEN DISPLAYS: WHEN: You have an incoming phone call (without Caller ID). You have an incoming intercom call. The screen also shows the calling location (for example, This handset is not registered to the base. A new uncharged battery has been installed. -
Page 22: Display Screen Icons
DISPLAY SCREEN ICONS THIS ICON: INDICATES: The handset ringer is turned off. (See “Ring Volume”on page 7 for details.) The battery needs to be recharged. The Caller ID information displayed is an unreviewed call. There are unreviewed calls in the call log. -
Page 23: Base Lights
BASE LIGHTS LIGHT: STATUS: CHARGING IN USE IN USE flash IN USE fast flash INDICATES: Handset is in the base charging Handset is on a call Phone line is disconnected Handset registration is in progress... -
Page 24: Tones And What They Mean
TONES AND WHAT THEY MEAN TONE: Three quick beeps One double beep Two double beeps One beep INDICATES: Handset is out of range of the base Handset has failed to register with base Handset battery char ge is low Handset registration is complete... -
Page 25: Intercom Operation
2 for more information.) Intercom Calls If you have more than one handset (AT&T 2300, purchased separately) registered with your 2320 base, you can make intercom calls between handsets. Call All You can send an intercom call signal to all registered handsets at once. -
Page 26: Answer An Incoming Call While On An Intercom Call
To end the intercom call without answering the incoming call,press and hold Transfer a Call If you have installed additional AT&T 2300 handsets (purchased separately) with your 2320 telephone, you can transfer a call from one handset to another and announce the caller. Press . -
Page 27: Forward A Call
F o rw a rd a Call If you have installed additional AT&T 2300 handsets ( p u rchased separa t e ly) with your 2320 telephone, yo u can fo r wa rd a call f rom one handset to another without announcing the caller. -
Page 28: Conference Calling
C o n f e rence Calling If one handset is already on a call, you can connect a second handset to the call by pressing — OR — You can first intercom another handset by pressing .,then handset is highlighted. After the other handset answers the intercom call, press and hold Disconnect either or both handsets by pressing... -
Page 29: Phonebook
PHONEBOOK This telephone can store up to 50 telephone numbers and names. Phone book entries a re stored in alphab e t i c a l order. Storing a number and name in one handset automatically stores it in ALL registered handsets. (See “About Adding Handsets”on page 2 for details about additional handsets.) S t o re a Number and Name in Phone Book... - Page 30 D i a l K e y ’ To erase a digit or character press either Pressing will move the cursor one space to the right. Press . The screen displays Enter a name connected with this number, using the chart below. You must store a name with each number.
- Page 31 10 Begin at Step 4 to enter another telephone Press . The screen returns to — OR — If the phone book is already full,the screen displays number and name — OR — Press to exit.
-
Page 32: Dial A Number In Phone Book
Dial a Number in Phone Book 1 Press . The screen displays the first phone book entr y. Skip to Step 5. — OR — Press . The screen displays Press . The screen displays Press . The screen displays Press . -
Page 33: Edit A Number/Name In Phone Book
Edit a Number/Name in Phone Book 1 Press . The screen displays the first phone book entry. Skip to Step 5. — OR — Press . The screen displays Press . The screen displays Press . The screen displays Press . - Page 34 Press (DELETE) to erase a digit — OR — Press and hold entire telephone number. Press to store the edited number, and enter name mode. Press (DELETE) to erase a character — OR — Press and hold name. 10 Press to confirm the change.
-
Page 35: Delete A Number/Name From Phone Book
Delete a Number/Name from Phone Book 1 Press . The screen displays the first phone book entr y. Skip to Step 5. — OR — Press . The screen displays Press . The screen displays Press . The screen displays Press . - Page 36 When you find the number you wish to delete,press (DELETE) to delete the entire displayed entry. The screen display is similar to Press . The entry is deleted and the screen displays the next phonebook entry.
-
Page 37: Caller Id Operation
CALLER ID OPERATION If you subscribe to Caller ID service with your local phone service provider, this phone stores all incoming calls with valid Caller ID information in the call log. Name, number, time and date information can all be stored,if they are sent with the call. Calls are automatically stored in the order they are received,with call “1”stored as the most recent call. -
Page 38: Review Call Log
Review Call Log Press . The screen displays the most recent call in the call log and displays the call is new. Skip to Step 3. —OR— . The screen displays Press Press . The screen displays the most recent call in the call log and displays the call is ne w. -
Page 39: Remove Call Records
Remove Call Record s Removing a Specific Call Record Press . The screen displays the most recent call in the call log and displays the call is new. Skip to Step 3. —OR— . The screen displays Press Press . The screen displays the most recent call in the call log and displays the call is new. - Page 40 Remove All Call Record s Press . The screen displays the most recent call in the call log and displays the call is new. Skip to Step 3. —OR— . The screen displays Press Press . The screen displays the most recent call in the call log and displays the call is new.
-
Page 41: Store A Call Record In Phone Book
S t o re a Call Record in Phone Book You can store a number re c e i ved by Caller ID in the telephone phone book. For call re c o rds without a va l i d name you will be prompted to enter a new name. -
Page 42: Display Dial
Display Dial While you are reviewing the call log, you can dial a number displayed on the screen. Press . The screen displays the most recent call in the call log and displays the call is new. Skip to Step 3. —OR—... -
Page 43: Batteries
BATTERIES Battery Life Battery life depends on how far the handset is from the base,and other environmental conditions. ¥ NOTE: For optimum performance, charge your handset on the base every night. Charge the Handset Battery Pack • This battery should remain charged for up to three days. A fully charged battery provides an average talk time of about seven hours. -
Page 44: Replace The Handset Battery Pack
Replace the Handset Battery Pack Install the handset battery. Use only AT&T Battery 3301,SKU# 91076. a) Remove battery compartment cover by pressing on indentation and sliding downward. Charge the handset battery. • Place the handset in the base. • Charge the battery for at least 12 hours. After the first charge,the battery will charge in eight hours. -
Page 45: In Case Of Difficulty
IN CASE OF DIFFICULTY If you have difficulty operating this phone,try the suggestions below. For Customer Service,visit our website at www.telephones.att.com or call 1 800 222–3111. Please retain your receipt as your proof of purc h a s e. TELEPHONE OPERATION PROBLEM If the phone does not work at all, check these... - Page 46 TELEPHONE OPERATION PROBLEM If you hear noise or interference when using the phone: PROBLEM If the phone does not ring when you receive a call: SOLUTION • You may be out of range. Move closer to the base. • Household appliances plugged into the same circuit as the base can sometimes cause interference.
- Page 47 TELEPHONE OPERATION PROBLEM If your telephone misdials: PROBLEM If you are unable to operate special telephone services or other equipment requiring touch tone signals: CALLER ID PROBLEM If the caller’s name or phone number is not displayed: SOLUTION • If you have dial pulse (rotary) service, you’ll need to set the dial method to .
- Page 48 CALLER ID PROBLEM If the caller’s name or phone number is not displayed during Call Waiting: SOLUTION • You should call your service provider to confirm that you subscribe to combined Caller ID with Call Waiting service. • Caller ID information received during Call Waiting is displayed only on the handset that is in use.
-
Page 49: Default Settings
DEFAULT SETTINGS DEFAULT SETTINGS FUNCTION: Dial Method Handset Volume Ring Volume External Ring Pattern Intercom Ring Pattern 1 Key Click DEFAULT SETTING: Tone... -
Page 50: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS Frequency Range Channels Channel Spacing Output Power Sensitivity Modulation Operating Temperature 0°C – 50°C Base Unit Voltage (AC Voltage, 60Hz) Base Unit Voltage (AC Adapter Output) Handset Voltage 2400 MHz – 2483 MHz 864 kHz 23 dBm -92 dBm GFSK 96 –... -
Page 51: Index
INDEX answer a call 14 Base Unit 1 battery 40–41 battery icon 40 call log 34, 35, 38 call record 36, 38–39 caller’s name or phone number not displayed 44 Call Waiting 16 call-waiting signal 16 Caller ID 34, 38 18, 42 charged battery 40 conference call 25... - Page 52 INDEX NEW 19 no dial tone 42 NiCd battery pac k 1 page 17 phone book 28, 29, 30, 32, 38 Phone book entries 26 phone does not ring 43 phone does not work at all 42 Power adapter 1 power cord 3 Quick Start Guide 1 Remove All Call Records 37...
