Vodavi XTS IP IP7024D Quick Reference Manual

Default Feature Codes
Call Back
Call Park (groups 1-14)
Call Park - Personal
Call Park - Station
Call Park Pickup - Station
Call Pickup (reqs btn)
Caller ID Display (Answered)
Caller ID Display (Unanswered)
Camp On
Clear Call Fwd, DND, Personal Msg
CO Line (Idle) Direct Access
or if Alternate Dial Plan
CO Line Group Access Code (grp 0-23)
CO Line Group Access Code (all grps)
CO Line Queue
Conference (reqs btn)
Directory Dial
Extension/DSS Number
Flash
Headset Mode
In and Out (status) Button (reqs btn)
Mute
Page - All Call (Internal & External)
Page - Internal Zones 1-20
Page - Internal All Call
Page - External All Call (XTS-IP only)
Page - External Zones 1 or 2
(XTSc-IP = Zone 1 only)
Save Number Redial
Speed Dial Access
VM Group Pilot Number
LLL = Line Number
XXX = Station Extension Number
(XTS-IP=100-419, XTSc-IP=100-157)
YYYY = Speed Dial Bin Number
(XTS-IP=9000-9999, XTSc-IP=9000-9099)
Idle State
622
Key 1
424-437
PICKUP
438 ANS-CALL
PERS-MSG
439+[XXX]
ALLPG-IN
#6+[XXX]
BIN-FWD
#0
BUSY-FWD
659
H-MODE
635
BKL - OFF
620
Misc-Tone State (Busy Tone)
662
Key 1
88+[LLL]
MSG
8888+[LLL]
Incoming CO Call State (Talk State)
800-823
Key 1
824
CONF
621
624
Outgoing (Busy Tone)
680
Key 1
CONF
XXX
660
Recording State
634
Key 1
644
STOP
629
Conference (Active State)
700
Key 1
701-720
EXIT
721
Conference (Idle State
760
Key 1
761 or 762
RE-ENTER
[SPEED]+[ ] ICM Call State
*
[SPEED]+[YYYY]
Key 1
CONF
440-447
Soft Keys
Key 2 Key 3
VM1 LNR
UA-CALL SNR
BGM P-PKP1
ALLPG-EX UNA
ALL-FWD N/A-FWD
B/NA-FWD CLR-FWD
T-MODE P-MODE
BKL-ON BKL-INUSE
Key 2 Key 3
CALL-BK CAMP-ON
Key 2 Key 3
REC FLASH
Key 2 Key 3
REC FLASH
Key 2 Key 3
Key 2 Key 3
END ADD-MEM
Key 2 Key 3
Key 2 Key 3
Vodavi Communications, Inc.
"Take A Closer Look" November 2005
www.vodavi.com P/N: 3051-24
P/NO: MMBB0191301 PRINTED IN KOREA

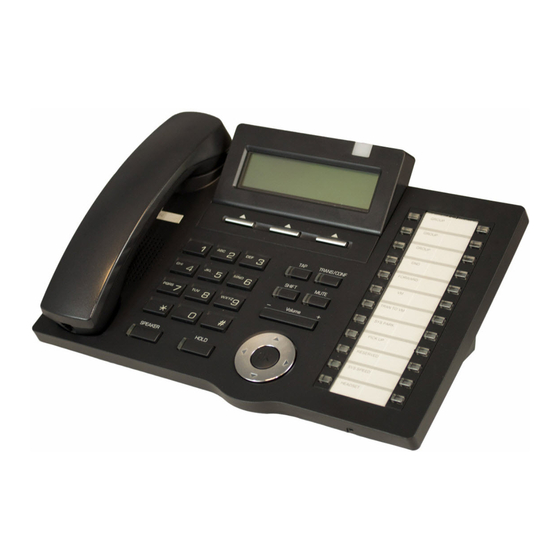

IP7024D Network Phone
Q u i c k R e f e r e n c e G u i d e
LCD Display
Soft Keys
Headphone
Jack
Speaker
Speaker
Button
Hold/Save
Button
Navigation
Pad
MIC
F I X E D F e a t u r e B u t t o n s
» Call Back button - Used for Auto-Callback.
» Dnd (Do not disturb) button - Used to prevent a call
from ringing at your station while busy or on a call.
» Hold/Save button - Used to place a call on hold.
The SAVE function is not used at this time.
» Speaker button - Used in place of the handset.
» Speed button - Used to access Speed Dialing &
Flexible Button programming.
» Trans/Pgm button - Used to transfer a call.
The PGM function is not used at this time.
» Volume button - Allows you to adjust the
speakerphone and handset volume.
N a v i g a t i o n K e y s
» Left/Right Scroll key - To move up & down through
the soft key displays.
» Menu key - To "scroll up" in Dial-by-Name directory.
» OK key - To dial selection in Dial-by-Name directory.
» Phonebook key - To access Dial-by-Name list & to
"scroll down" in the directory.
Msg Wait/
Ring LED
24
Flexible
Buttons
