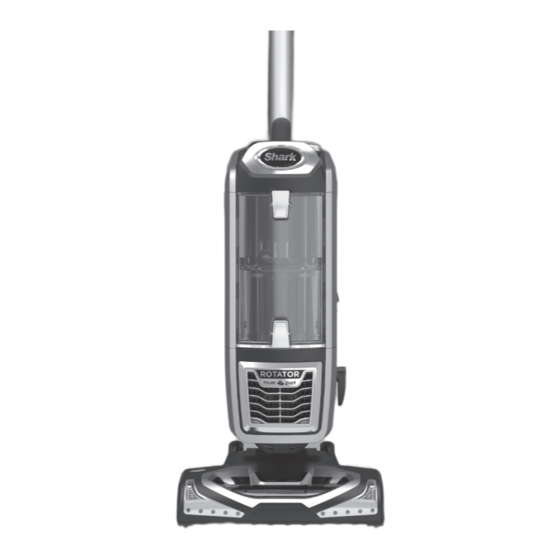

- Page 1 OWNER’S GUIDE NV750ANZ ™...
-
Page 2: Register Your Purchase
For a list of what is included with this model, refer to inside flap of box. ® ™ ™ Upright Vacuum. If you should have a question about your Shark Rotator , please call ® ™ This Owner’s Guide is designed to help you get a complete understanding of your AUST: 1800 890 840 or NZ: 0800 002 999. -
Page 3: Important Safeguards
READ ALL INSTRUCTIONS BEFORE USE IMPORTANT SAFEGUARDS When using an electrical appliance, basic safety precautions should always be GENERAL USE observed, including the following: 17 Use only as described in this manual. WARNING 18 DO NOT put any objects into openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. - Page 4 ASSEMBLY Place the nozzle on the floor and insert the wand. Insert the handle into the wand. Slide the pod onto the wand. Attach the hose to the back of the pod. Insert the crevice tool and upholstery tool into the accessory clips as shown. A U S T: 1 8 0 0 8 9 0 8 4 0...
- Page 5 UPRIGHT WARNING: To reduce the risk of electric shock, unplug the unit before assembling, adding or removing attachments or converting modes. CLEANING WARNING: Always ensure the power is OFF (“O” position) before plugging and unplugging. Press POWER and push the surface selector to THICK CARPET/AREA RUG for high piles, thick carpets, area rugs, and specialty carpets. This setting produces reduced suction with the motorized brush roll.
- Page 6 ABOVE FLOOR To clean with the hose, press the WAND or HANDLE release button (depending on the amount of reach required) then lift handle up. CLEANING Insert wand or handle directly into desired tool. Handle Release Wand A U S T: 1 8 0 0 8 9 0 8 4 0...
- Page 7 LIFT-AWAY NOTE: When using the vacuum in Lift-Away mode, always make sure to hold onto the handle of the pod. ™ ™ CLEANING Press LIFT-AWAY ™ to lift the pod off the wand. To clean with hose, press the WAND or HANDLE release button then lift handle up. Use for portable cleaning without Attach desired cleaning tool.
- Page 8 28 cm Crevice Tool Upholstery Tool 161FLI650 159FLI650 For accessing hard to reach places. Designed for removal of ground-in dirt. ACCESSORIES NOTE: Select cleaning accessories are included. Others are available for purchase. For a list of what is included with this model, refer to inside flap of box.
-
Page 9: Helpful Tips
HELPFUL TIPS POWER BUTTON The POWER button turns the vacuum on. SURFACE SELECTOR Selecting the Hard Floor setting will stop the brushroll from spinning and allow you to clean bare floor and above floor surfaces with ease. Thick Carpet/Area Rug and Carpet/Low Pile settings refer to the strength of the suction power. -
Page 10: Maintenance
MAINTENANCE WARNING: Always ensure the power is OFF (“O” position) and unplugged before cleaning your vacuum. EMPTY THE DUST CUP Pull up on the dust cup release latch and lift the dustcup off the pod. Holding the dust cup over a garbage bag or can, press the bottom empty release latch. Press the top dust cup release latch to access the dust screen and remove built-up debris as required. -
Page 11: Bottom Of Floor Nozzle
MAINTENANCE CHECK FOR BLOCKAGES REMOVE AND INSPECT: HOSE AND TUBES Remove floor nozzle and extension wand and shine a flashlight up from the bottom to check for possible blockage. Remove dustcup and hose to check intake opening and hose elbow. BOTTOM OF FLOOR NOZZLE Use a coin to unlock the three locks on the bottom of the floor nozzle. - Page 12 TROUBLE- Vacuum is not picking up dirt. No suction or light suction SHOOTING • C heck filters to see if they need cleaning. Follow instructions for rinsing and drying the filters before re-inserting back into the vacuum. GUIDE • Dust cup may be full; empty dust cup. •...
- Page 13 NOTES N Z : 0 8 0 0 0 0 2 9 9 9...
- Page 14 NOTES A U S T: 1 8 0 0 8 9 0 8 4 0...
- Page 15 NZ Customer Care 0800 002 999 AUST Customer Care: 1800 890 840 Euro-Pro and Shark are registered trademarks of Euro-Pro Operating LLC. Rotator and Lift-Away are trademarks of Euro-Pro Operating LLC. N Z : 0 8 0 0 0 0 2 9 9 9...
- Page 16 GMA-102233-EA-009 NV750ANZ�31�IB�150521�1 Illustrations may differ from actual product. We are constantly striving to improve our products, therefore the specifications contained herein are Printed in China © 2015 Euro-Pro Operating LLC subject to change without notice.
