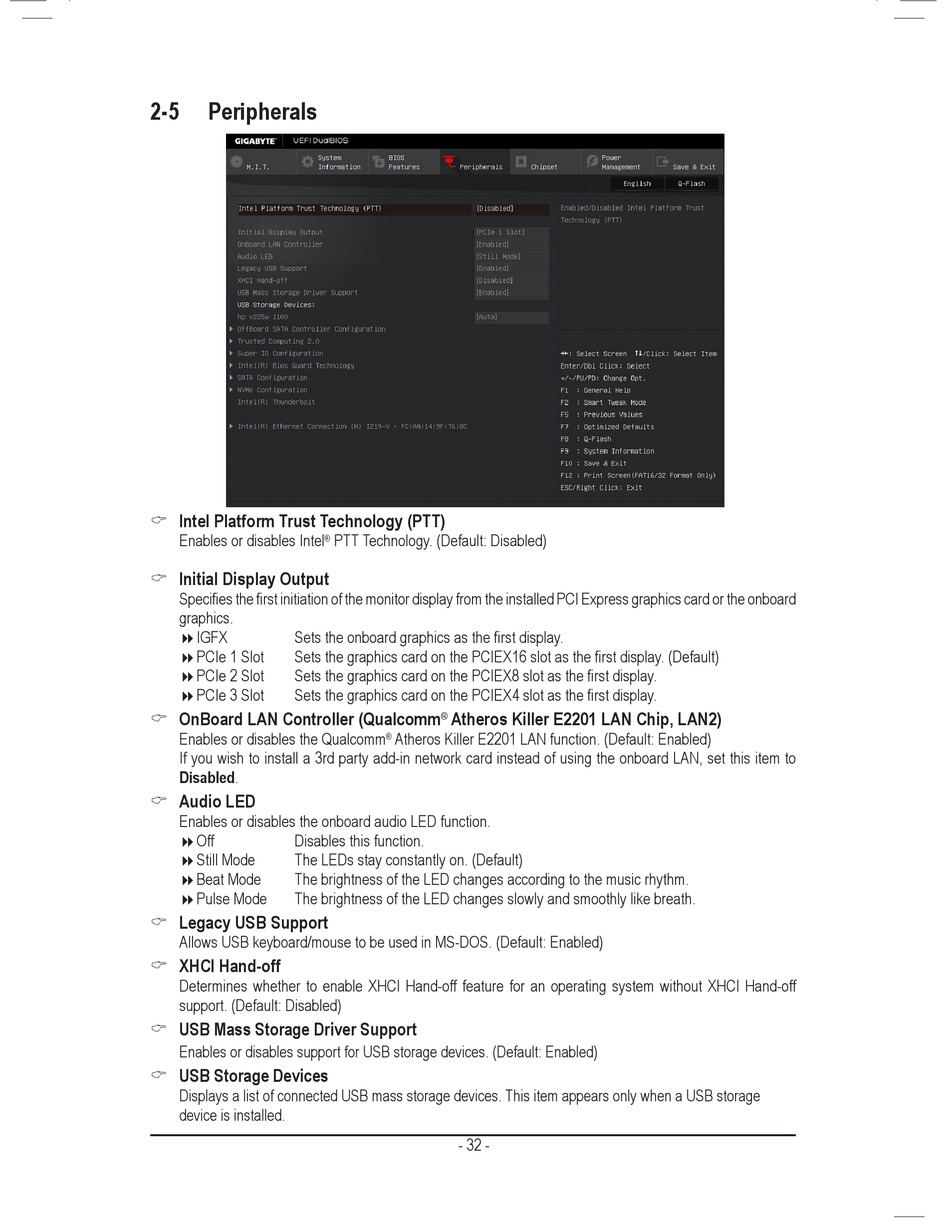

2-5

Peripherals

& Intel Platform Trust Technology (PTT)
Enables or disables Intel
& Initial Display Output
Specifies the first initiation of the monitor display from the installed PCI Express graphics card or the onboard
graphics.
IGFX
PCIe 1 Slot
PCIe 2 Slot
PCIe 3 Slot
& OnBoard LAN Controller (Qualcomm
Enables or disables the Qualcomm
If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to
Disabled.
& Audio LED
Enables or disables the onboard audio LED function.
Off
Still Mode
Beat Mode
Pulse Mode
& Legacy USB Support
Allows USB keyboard/mouse to be used in MS-DOS. (Default: Enabled)
& XHCI Hand-off
Determines whether to enable XHCI Hand-off feature for an operating system without XHCI Hand-off
support. (Default: Disabled)
& USB Mass Storage Driver Support
Enables or disables support for USB storage devices. (Default: Enabled)
& USB Storage Devices
Displays a list of connected USB mass storage devices. This item appears only when a USB storage
device is installed.
PTT Technology. (Default: Disabled)
®
Sets the onboard graphics as the first display.
Sets the graphics card on the PCIEX16 slot as the first display. (Default)
Sets the graphics card on the PCIEX8 slot as the first display.
Sets the graphics card on the PCIEX4 slot as the first display.
Atheros Killer E2201 LAN function. (Default: Enabled)
®
Disables this function.
The LEDs stay constantly on. (Default)
The brightness of the LED changes according to the music rhythm.
The brightness of the LED changes slowly and smoothly like breath.
Atheros Killer E2201 LAN Chip, LAN2)
®
- 32 -
