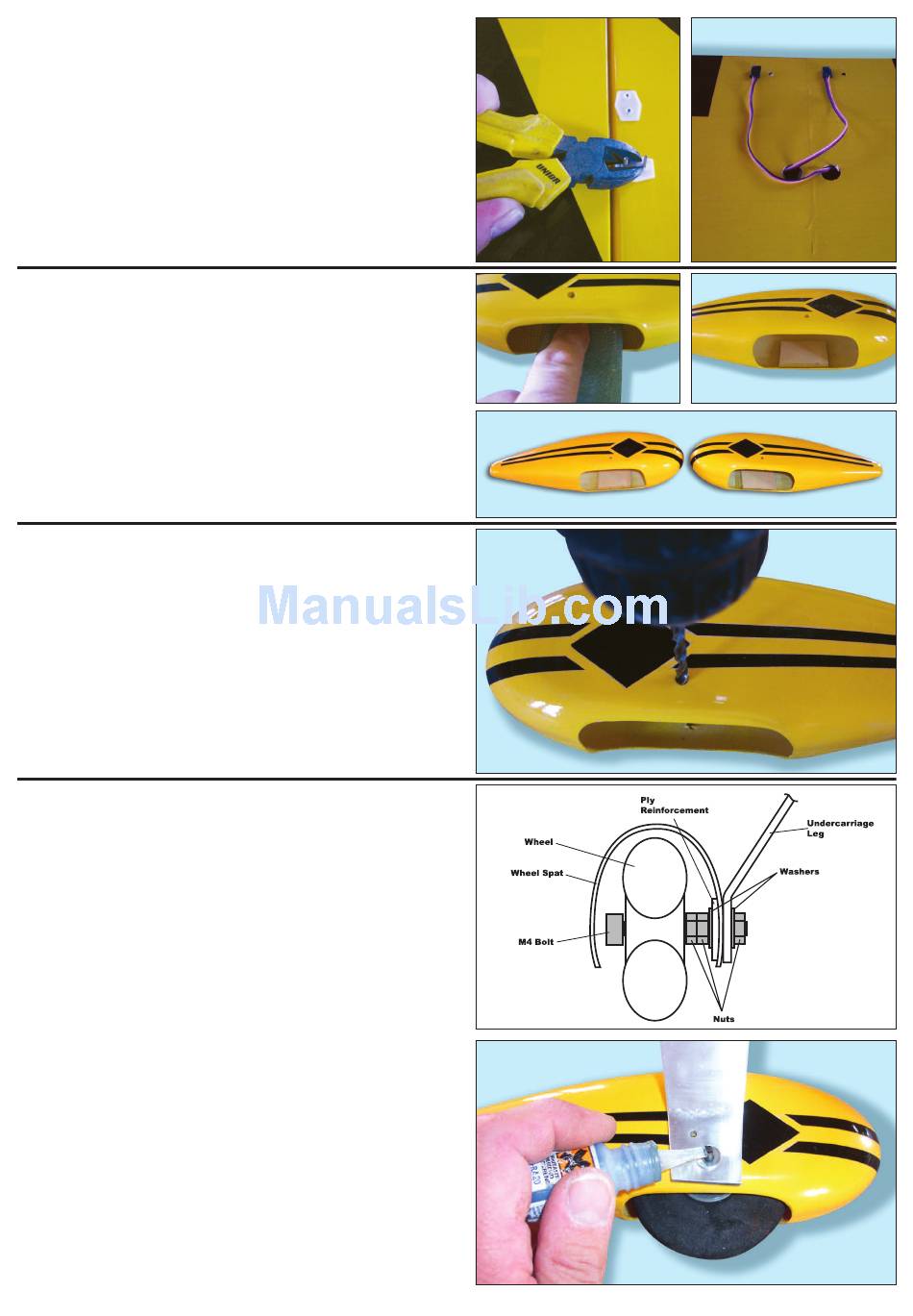

STEP 6.
Turn the wing over and clip off any excess screw length
flush with the horn backing plates as shown. Ensure
that the extended aileron servo leads cannot fall back
into the wings.
UNDERCARRIAGE
STEP 7.
Roughen the inside of each wheel spat and glue the
plywood reinforcement squares in place as shown.
Make sure you make a left and right hand spat.
STEP 8.
Using the pre-drilled hole as a guide, drill right through
the spat and the reinforcement square using a
4mm drill.
STEP 9.
Assemble each wheel and spat to the pre-formed
aluminium undercarriage using the diagram as a a
guide. You will need to enlarge the outer hole to pass
the mounting bolt through. Apply thread lock to the
ends of the bolts before tightening the final nut.
