Page 1: Installation Instructions

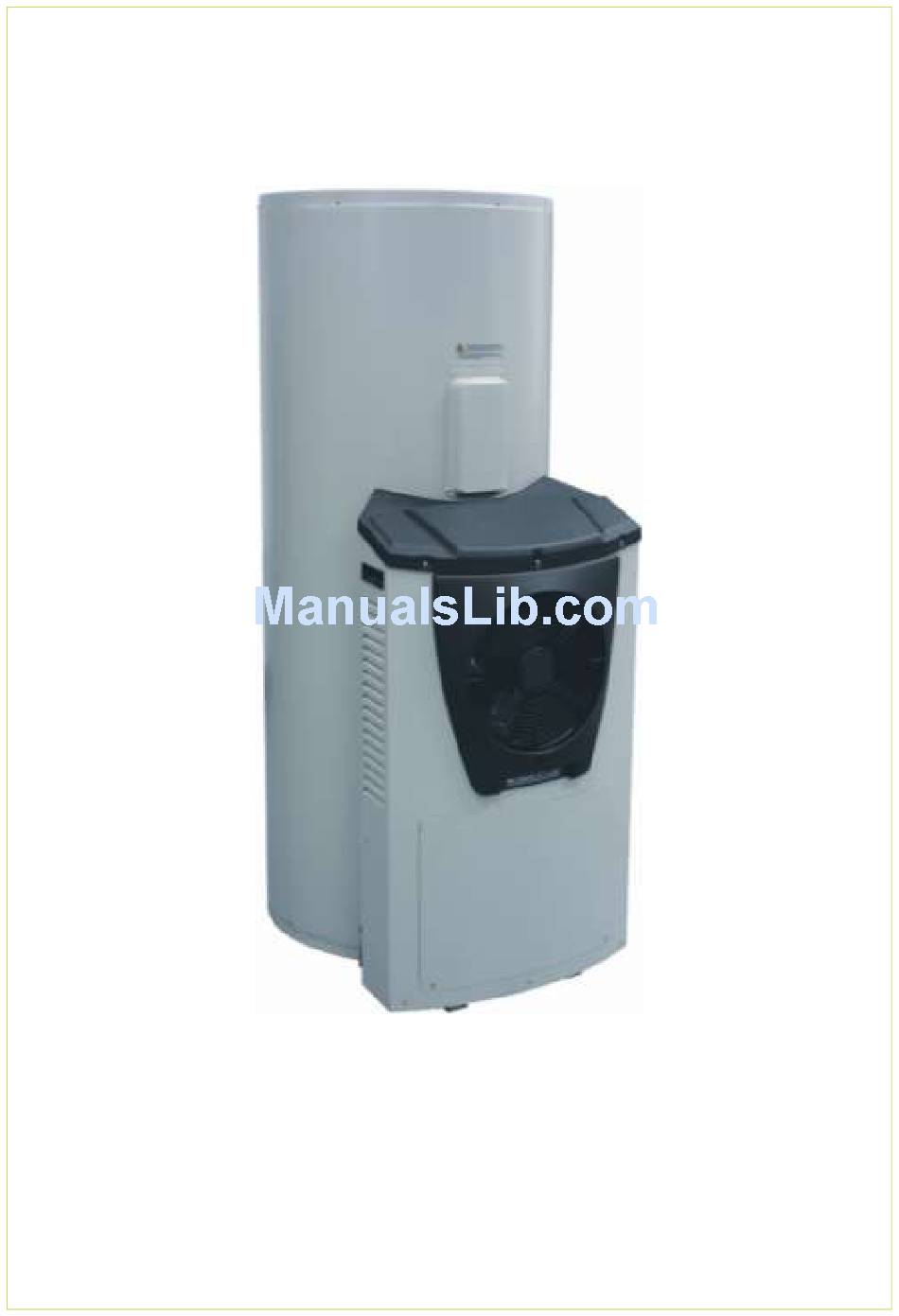

Installation Instructions Air Sourced Integrated Heat Pump Module MPi Series This water heater must be installed and serviced by a qualified person. Please leave this guide with the householder. - Page 2 PATENTS This water heater may be protected by one or more patents or registered designs in the name of Rheem Australia Pty Ltd. TRADE MARKS ® Registered trademark of Rheem Australia Pty Ltd. ™ Trademark of Rheem Australia Pty Ltd.
-
Page 3: Table Of Contents
CONTENTS HOUSEHOLDER – This installation instruction booklet is intended for the installer but you may find it of interest. Installation ....................4 Heat Pump And Tank Assembly ............13 Connections – Electrical ..............30 Commissioning ..................32 Water Supplies ..................38 Warranty Note .................. -
Page 4: Installation
INSTALLATION INSTALLATION STANDARDS The water heater must be installed: by a qualified person, and in accordance with the installation instructions, and in compliance with Standards AS/NZS 3500.4, AS/NZS 3000 and all local codes and regulatory authority requirements. In New Zealand, the installation must also conform with Clause G12 of the New Zealand Building Code. - Page 5 INSTALLATION Care must be taken during transportation and handling. Do not lay the heat pump module down and do not tilt the heat pump module or the heat pump and storage tank assembly more than 30° from the vertical. This will displace the compressor lubricating oil.
- Page 6 INSTALLATION FREEZE PROTECTION The water heater has a freeze protection system. The freeze protection system will protect the water heater from damage, by preventing ice forming in the waterways of the water heater, in the event of freezing conditions occurring. If the ambient air temperature falls below 1°C and the heat pump is not operating, the system will operate the circulator periodically.
- Page 7 The refrigerant must not be vented to atmosphere. Phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection.
- Page 8 The freeze protection system will be rendered inoperable if electrical power is not available at the water heater. Damage caused by freezing due to the unavailability of power at the water heater is not covered by the Rheem warranty. “Warranty Note” Refer to on page 40.
-
Page 9: Heat Pump Dimensions
INSTALLATION DIMENSIONS AND TECHNICAL DATA WALL AIR INLET OUTLET VENTILATION VALVE INLET CLEARANCE CONDENSATE DRAIN OUTLET AIR INLET VENTILATION CLEARANCE OUTLET 1018 ELECTRICAL CONNECTION COLD INLET Rheemglas 551 Series HEAT PUMP DIMENSIONS 325 & 410 INTEGRATED SK6753 - 1 A4 REV CD 04/13... - Page 10 INSTALLATION WALL AIR INLET OUTLET VALVE INLET VENTILATION CLEARANCE CONDENSATE DRAIN OUTLET AIR INLET VENTILATION CLEARANCE OUTLET 1018 ELECTRICAL CONNECTION COLD INLET RheemPlus 554 Series HEAT PUMP DIMENSIONS 325 & 410 INTEGRATED SK6898-3 A4 REVCD 04/13...
- Page 11 INSTALLATION Models Rheemglas 551325 551410 RheemPlus 554325 554410 Storage tank capacity litres Boost capacity 1.8 kW litres 2.4 kW*, 3.6 kW* litres Dimensions 1631 1842 1317 1479 554 series only 554 series only 1006 1073 Models 551325 551410 Rheemglas Weight tank empty Weight heat pump Weight system...
- Page 12 INSTALLATION TYPICAL INSTALLATION – OUTDOOR LOCATION Rheemglas 551 Series Shown TYPICAL INSTALLATION HEAT PUMP WATER HEATER - 325L...
-
Page 13: Heat Pump And Tank Assembly
HEAT PUMP AND TANK ASSEMBLY STORAGE TANK AND HEAT PUMP MODULE The heat pump water heater is made of two main components, the storage tank and the heat pump module. For transport and handling (weight) purposes both items are shipped separately and designed to be assembled at the installation site. - Page 14 HEAT PUMP AND TANK ASSEMBLY storage tank heat pump module heat pump water heater There is a kit (PN 299276) supplied with the heat pump module and a kit supplied with the 410 model heat pump storage tank (PN 290122). The components supplied in the kit and required for the installation are: 299276 Kit Installation Heat Pump Module Integrated...
- Page 15 HEAT PUMP AND TANK ASSEMBLY ASSEMBLY PROCEDURE Warning: The heat pump must be assembled, plumbed and filled with water prior to power being connected and switched on. The following procedure should be followed to properly place the heat pump module in position and connect to the storage tank: Heat Pump Storage Tank: Remove all packaging including the carton base from the heat pump storage tank and position in its intended location, supported by a stable base.
- Page 16 HEAT PUMP AND TANK ASSEMBLY Lower Front Cover: Remove the two screws securing the lower front cover to the storage tank. Remove the lower front cover from the storage tank. Step 2 Step 3 remove screws withdraw the power cable from lower front cover Power Cable: Withdraw the power cable, housed behind the lower front cover, from the opening.
- Page 17 HEAT PUMP AND TANK ASSEMBLY Mains Power Connection – 551 Series: Connect the mains power supply wiring to the terminal block and earth connection inside of the lower front cover. Secure the conduit to the side of the storage tank with the saddle ...
- Page 18 HEAT PUMP AND TANK ASSEMBLY Lower Front Cover: Refit the lower front cover. Step 5 Step 6 refit lower front cover remove tape from tank sensor cable Tank Sensor Cable: Remove tape from tank sensor cable and unfurl.
- Page 19 HEAT PUMP AND TANK ASSEMBLY Foam Tape: (410 litre storage tank only) – Retrieve the length of foam tape from the kit supplied with the 410 storage tank. The foam tape is to be applied to the bottom at the front of the 410 litre storage tank.
- Page 20 HEAT PUMP AND TANK ASSEMBLY Fan Cover Shroud: Retrieve the fan cover shroud, 20 mm screw and black plastic plug from the kit bag. Remove the screw located immediately above the monitor label on the front of the heat pump module and discard. Position the fan cover shroud over the fan cowl and slide the ...
- Page 21 HEAT PUMP AND TANK ASSEMBLY 10. Cover Strip: (410 litre storage tank only) – Retrieve the length of rubber cover strip from the kit supplied with the 410 storage tank. Line up one end of the cover strip with one end of the heat pump ...
- Page 22 HEAT PUMP AND TANK ASSEMBLY 11. Heat Pump Module Cover: Remove the two screws securing the front cover to the heat pump module. Remove the front cover from the heat pump module. Step 11 and 13 remove front cover from heat pump module and feed through cables 12.
- Page 23 HEAT PUMP AND TANK ASSEMBLY 15. Cold Hose Connection: Attach the flexible braided hose, marked with a blue stripe through the braid and attached to the bottom of the heat exchanger, to the ball valve fitting in the bottom connection on the storage tank and marked “TO HEAT PUMP”.
- Page 24 HEAT PUMP AND TANK ASSEMBLY 16. Hot Hose Connection: Attach the flexible braided hose, marked with a red stripe through the braid and attached to the top of the circulator, to the non return valve fitting in the upper connection marked “OUTLET” in red on the storage tank.
- Page 25 HEAT PUMP AND TANK ASSEMBLY 18. Cable Tab – 551 Series: Remove the tab on the side of the electrical entry to the heat pump module to accommodate the electrical conduit. Pliers or tin snips may be required to remove the tab. Step 18 remove the tab on the side of the electrical entry to the heat pump module 19.
- Page 26 HEAT PUMP AND TANK ASSEMBLY 20. Position Heat Pump Module: Position the heat pump module against the tank. Engage the tab at the bottom of the heat pump module, on the wall side of the module, into the slot in the tank. Align the holes in the side of the heat pump module over the three ...
- Page 27 HEAT PUMP AND TANK ASSEMBLY 24. Tank Sensor Cable Connection: Insert the tank sensor cable plug to the connector on the underside of the control box. The plug is polarised and can only be inserted one way. Ensure the plug fully engages the locking feature on the connector. ...
- Page 28 HEAT PUMP AND TANK ASSEMBLY 26. Positioning of Water Heater: Complete final positioning of the water heater. Ensure the heat pump module is firmly seated on the level slab or solid base. 27. Water Connections: Connect the cold water supply and the hot water pipe work to the water heater.
- Page 29 HEAT PUMP AND TANK ASSEMBLY 30. Electrical Cover – 554 Series: Remove the two screws securing the electrical cover, adjacent to the temperature limiting valve cover, to the storage tank. Remove the electrical cover from the storage tank. Step 30 remove screws from electrical cover 31.
-
Page 30: Connections - Electrical
CONNECTIONS – ELECTRICAL The power supply to the water heater must not be switched on until the water heater is filled with water and a satisfactory megger reading is obtained. MEGGER READING When a megger test is conducted on this water heater, then the following should be noted. - Page 31 CONNECTIONS – ELECTRICAL WIRING DIAGRAM PROG Electrical Circuit for Heat Pump – Robertshaw “ST” Thermostat...
-
Page 32: Commissioning
COMMISSIONING TO FILL AND TURN ON THE WATER HEATER The power supply to the water heater must not be switched on until the water heater is filled with water and a satisfactory megger reading is obtained. Open all of the hot water taps in the house (don‟t forget the shower). Open the cold water isolation valve fully to the water heater. - Page 33 COMMISSIONING The system will not switch back to heat pump operation from the booster heating unit if the detected ambient air temperature has moved back within the heat pump‟s operating temperature range. The heating cycle will be completed by the booster heating unit. Note: The heat pump may not turn on after either having just completed a heating cycle and more hot water is drawn from the water heater or power is shut down to the compressor, either during or at the end of a heating cycle.
- Page 34 COMMISSIONING The modes are: Flashes Operational Modes Standby mode – water is hot solid green (remains on) Call for heating received – system checks performed 1 x green Note: unit may wait and continue flashing until compressor has cooled from its last operation 2 x green Heat pump preheating Heat pump operation –...
- Page 35 COMMISSIONING Notes: There is no 2 x red flash indicator or fault mode code. Power must be available at the water heater and to the heat pump for the LEDs to glow or flash. Time controlled power supply (power must be available at the water heater) If the water heater is connected to a time controlled power supply, then during periods of no power supply at the water heater the LEDs will be off.
- Page 36 COMMISSIONING Possible fault condition If there is power to the water heater and the green LED is off or the red LED is flashing, this indicates there may be a fault condition with the water heater. The red LED may emit up to nine flashes in each series of flashes. There may be a fault condition with the water heater if either: there is power available at the water heater and the green LED is off, ...
- Page 37 COMMISSIONING SYSTEM RESET To reset the system and override the forty five (45) minute start delay: Press and hold the red controller reset button for two (2) to three (3) seconds until both the green and red LEDs display a solid glow. Release the button.
-
Page 38: Water Supplies
WATER SUPPLIES This water heater must be installed in accordance with this advice to be covered by the manufacturer’s warranty. This water heater is manufactured to suit the water conditions of most public reticulated water supplies. However, there are some known water chemistries which can have detrimental effects on the water heater and its operation and / or life expectancy. - Page 39 WATER SUPPLIES CHLORIDE AND PH Where the chloride level exceeds 250 mg/L the manufacturer‟s warranty does not apply to the water heater. In a high chloride water supply, the water can corrode stainless steel parts and cause them to fail. Where the pH is less than 6.0 the manufacturer‟s warranty does not apply to the water heater.
-
Page 40: Warranty Note
WARRANTY NOTE The heat pump water heater is covered by the manufacturer‟s warranty. For full manufacturer‟s warranty details, refer to the Owner‟s Guide and Installation Instructions supplied with the storage tank. The part extracts from the “Terms Of The Warranty And The Exclusions To It” of the water heater warranty should be noted before commencing the installation.
