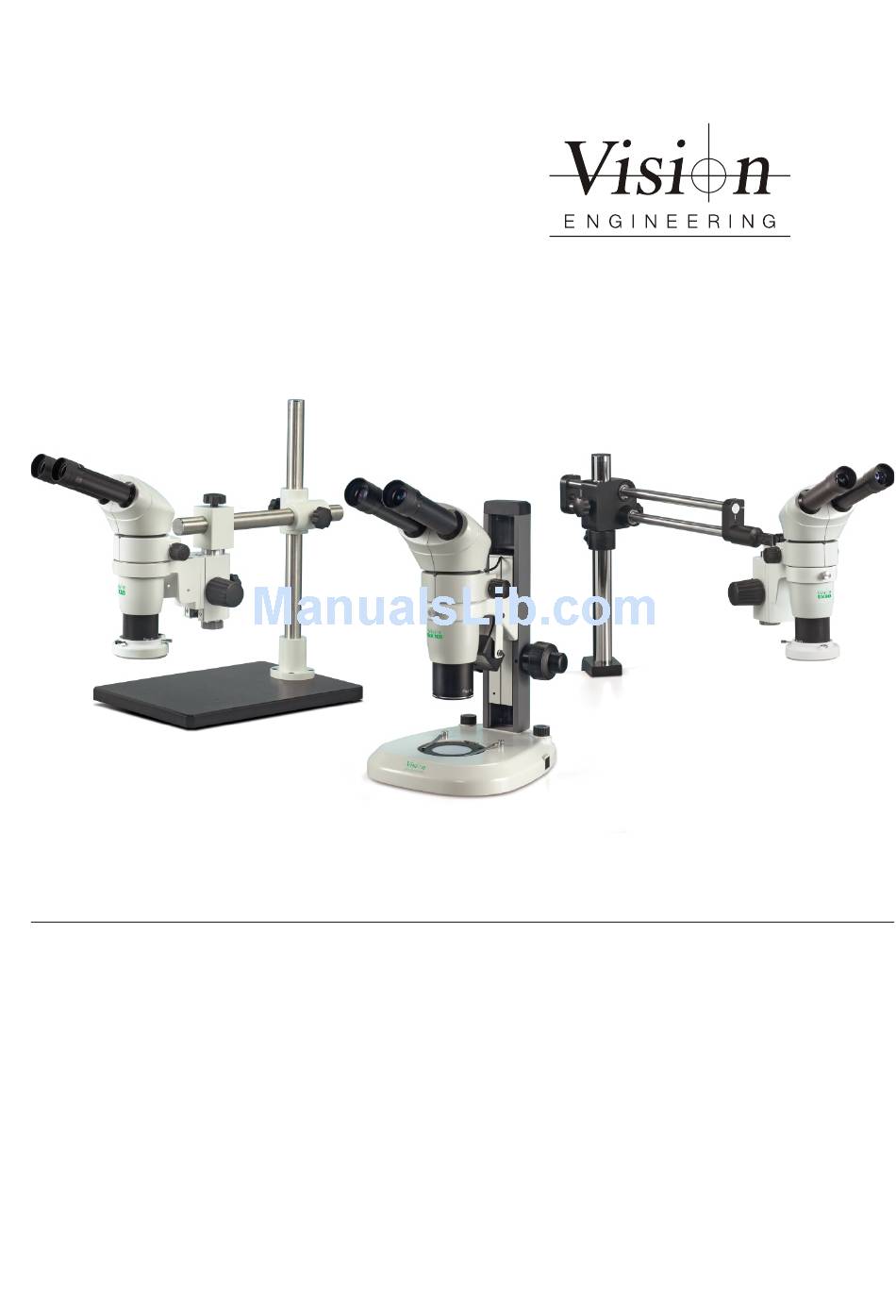

- Page 1 SX80/SX100 User Guide SX80/SX100 Stereo Zoom Microscope...
-
Page 3: Led Ringlight
SX80/SX100 Stereo Zoom Microscope INTRODUCTION Vision Engineering manufacture a wide range of patented optical systems, offering fatigue-free viewing with superb hand-eye co-ordination, for improved quality and productivity. To achieve the most from this precision instrument, please read the enclosed assembly instructions, usage and maintenance guidelines. -
Page 5: Table Of Contents
CONTENTS PACKING CONTENTS CONTENTS Head Stand Boom stand Dual-arm boom stand Optional accessories Optical data ASSEMBLY Head attachment Eyepiece attachment Power cable connection Stage glass attachment Boom stand Dual-arm boom stand LED ringlight (optional) Photographic attachment OPERATION & SETUP Main system controls Bench stand controls Boom stand controls Dual-arm boom stand controls... -
Page 7: Packing Contents
Head PACKING CONTENTS Binocular head Eyepieces Zoom body Objective Stand Column & Stand Mains lead (not shown) Glass stage insert (not shown) Black/white stage insert (not shown) Spare fuses (not shown) Hexagonal key (not shown) www.visioneng.com/support SX80/SX100 Stereo Zoom Microscope... -
Page 8: Boom Stand
Boom clamp Horizontal bar Focusing clamp bolt Base Hexagonal key (not shown) Dual-arm boom stand Focusing arm Focusing clamp bolt Vertical bar Boom clamp Dual horizontal bar Securing collar Clamp OR Platform base (not shown) SX80/SX100 Stereo Zoom Microscope www.visioneng.com/support... -
Page 9: Optional Accessories
F.N. x1.0 x12 - x120 78mm x15/16 F.N. x2.0 x24 - x240 32.5mm x20/13 F.N. x0.5 x8 - x80 130mm x20/13 F.N. x1.0 x16 - x120 78mm x20/13 F.N. x2.0 x32 - x320 32.5mm www.visioneng.com/support SX80/SX100 Stereo Zoom Microscope... -
Page 10: Assembly
Remove the protective caps from the eyepiece tubes Insert the eyepieces into the eyepiece tubes. The rubber cups on the eyepieces are to reduce interference caused by ambient lighting but can be removed when wearing glasses. SX80/SX100 Stereo Zoom Microscope www.visioneng.com/support... -
Page 11: Power Cable Connection
SX80/SX100 stand Connect the mains plug into a suitable mains power socket. Stage glass attachment Place the stage glass into the stand base Use the two clamps to secure slides when in use. www.visioneng.com/support SX80/SX100 Stereo Zoom Microscope... -
Page 12: Boom Stand
Connect focus assembly to the focus arm link and tighten the screw at the back and the nut at the bottom until secure. Insert head assembly into the focus assembly and secure. SX80/SX100 Stereo Zoom Microscope www.visioneng.com/support... -
Page 13: Led Ringlight (Optional)
Place the photographic attachment on to the zoom body and tighten the head assembly securing screw. Place the eyepiece body on to the photographic attachment and tighten the photographic attachment securing screw www.visioneng.com/support SX80/SX100 Stereo Zoom Microscope... -
Page 14: Operation & Setup Main System Controls
OPERATION & SETUP Main system controls OPERATION & SETUP Interpupillary adjustment Diopter adjustment Zoom controls (one each side) Bench stand controls Focus controls Fine focus control Reflected illumination control Transmitted illumination control Specimen clamps On/Off switch SX80/SX100 Stereo Zoom Microscope www.visioneng.com/support... -
Page 15: Boom Stand Controls
OPERATION & SETUP Boom stand controls Zoom Height/reach adjustment Focus Dual-arm boom stand controls Zoom Height adjustment Height lock Focus www.visioneng.com/support SX80/SX100 Stereo Zoom Microscope... -
Page 16: Service Record
SERVICE RECORD SERVICE RECORD SX80/SX100 Serial Number ________________ Service Type Comments Date of Service Date of Next Service Company Signature... -
Page 18: Warranty
If during the warranty period the product is found to be defective, it will be repaired or replaced at facilities of Vision Engineering or elsewhere, all at the option of Vision Engineering. However, Vision Engineering reserves the right to refund the purchase price if it is unable to provide replacement, and repair is not commercially practicable or cannot be timely made. - Page 19 For more information... Vision Engineering has a network of offices and technical distributors around the world. For more information, please contact your Vision Engineering branch, local authorised distributor, or visit our website. Vision Engineering Ltd. Vision Engineering Inc. Vision Engineering Ltd.
