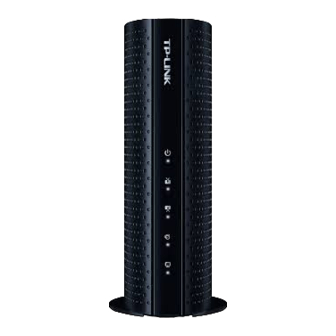

TP-Link TC-7650 Quick Installation Manual

Quick Installation Guide
DOCSIS 3.0 High Speed Cable Modem
Connect the Hardware
Activate the Modem
Enjoy the Internet
TC-7650
Power adapter
7106506322 REV1.0.1
1
Get your Internet service account information and the
modem's Information Card ready.
Information Card
IP: 192.168.100.1 IP: 192.168.100.1
2
Make sure your computer is set to dynamically obtain
an IP address.
Now you can use your computer to surf the Internet.
If you want to share the Internet access, connect a router
to the modem instead. You need to reboot the modem
to get the router connected to the Internet.
Internet
Reset
Coaxial cable
LAN
1
Cable
2
Power
Serial Number
MAC Address
Ethernet cable
3
4
Wait until the Internet LED turns solid on. The
modem has synchronized with your ISP's server.
Note:
If the Internet LED is blinking or o after about 1 minute,
call your ISP's customer service.
3
Launch a web browser, and visit any website.
You will be automatically redirected to your ISP's
self-activation page.
If the self-activation page does not show up, call
your ISP's customer service.
For Comcast and Time Warner Cable (TWC):
Comcast X nity 1-800-934-6489 www.comcast.com
Time Warner Cable 1-855-704-4503 www.timewarnercable.com
The contact information listed might change. You can also nd the contact
number in your monthly Internet service billing statement.
4
Follow the on-screen instructions to activate the
wait for about 10 minutes till the
modem, and
LEDs become solid on
Note:
If the Internet is not accessible, contact your ISP and make sure
that the modem is activated.
For additional con guration, log into the web interface at
http://192.168.100.1.
.
