Summary of Contents for Vax VPW2BC

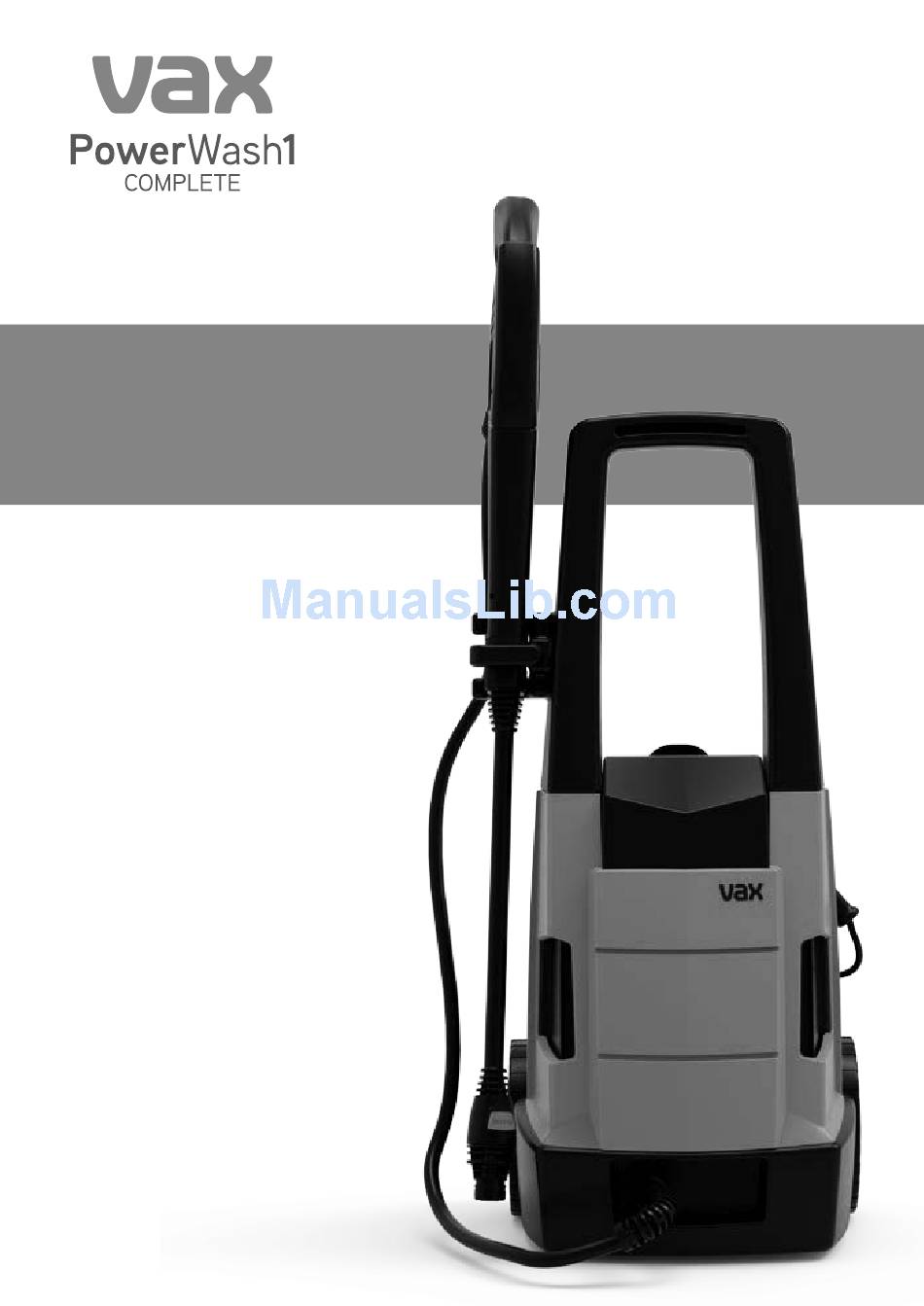

- Page 1 DESIGNED FOR HEAVY DUTY, OUTDOOR CLEANING LET’S GET STARTED. VPW2BC...
-
Page 2: Let's Talk Safety
NOT for commercial or industrial use. • This Pressure washer is for outdoor use only. • It is your responsibility to check the suitability of the surface Basic to be cleaned. Vax UK Ltd cannot be held responsible for safety damage caused. precautions •... - Page 3 Cleaning and user maintenance shall not be made by children without supervision. • Vax only recommend the use of Vax genuine accessories and solution to be used with this pressure washer. The use of non-branded Vax accessories and solution will invalidate your warranty.
- Page 4 Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling. Alternatively, you can write to us at: Vax Ltd., Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich, WR9 0LW, UK This user guide can be found online at: vax.co.uk/support @VaxUK...
-
Page 5: Table Of Contents
Contents Power Wash 1 Complete Included with your machine Let’s talk safety Getting to know your machine Pressure Hose Getting started Trigger Handle Using your machine Lance Let’s talk technical Jet Nozzle (orange nib) Accessories Turbo Nozzle What to do if it goes wrong (black nib) Getting in touch Solution Nozzle... -
Page 6: Getting To Know Your Machine
Solution Water outlet intake tube Technical Specification Accessories & Consumables Name PowerWash 1 Complete Universal Detergent Wash & Protect Vehicle Detergent 1-9-133398-00 VPW2BC Model 1-9-133400-00 Patio & Decking Detergent 2000W Wattage 1-9-133401-00 220-240V Voltage Max Pressure 140 bar Working Pressure 100 bar... -
Page 7: Getting Started
Getting started PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE Always make sure the pressure washer and water supply is off before connecting or disconnecting the hose and accessories. The pressure washer is equipped with a thermal cut-out. If for any reason the pressure washer does overheat the thermostat will automatically turn the washer off. -
Page 8: Using Your Machine
Using your machine CAUTION: Always use an RCD (Residual Current Device) adaptor when using this pressure washer. CAUTION: Don’t leave the pressure washer running when not in use for more than 5 minutes to prevent overheating. Before switching the machine on, the trigger handle must be squeezed to release water and to remove any airlocks in the machine or pressure hose. - Page 9 Using your machine IMPORTANT: Always make sure the machine is switched off and the safety button on the trigger handle is LOCKED before connecting/disconnecting the lance, nozzle or accessories. IMPORTANT: Lance and Nozzle must be attached to the hose for pressurised water to be produced. Using your accessories (Jet nozzle orange nib) The jet nozzle has a wider spray and is ideal for use on surface areas such as cars, garden furniture, decking and boats.
- Page 10 Using your machine IMPORTANT: When using solution make sure you follow the dilution instructions and use Vax solution only. Using solution with your pressure washer Solution can only be used when the solution nozzle or car/outdoor brush nozzle is attached.
- Page 11 Using your machine Attach the car brush to the trigger Switch on the pressure washer and To remove the brush from the trigger handle. Firmly push the car brush squeeze the trigger to release water handle firmly push and twist the and trigger handle together, turn spray or water and detergent mix.
-
Page 12: Let's Talk Technical
Let’s talk technical IMPORTANT: Always rinse fresh water through your pressure washer and accessories for 1 minute after using solution to prevent blockages. Maintenance To access water filter unscrew water To remove water filter, pinch the Water filter can be rinsed under inlet connector and remove. -
Page 13: Accessories
Accessories Don’t forget your accessories! Order at: www.vax.co.uk/spares-and-solutions Universal Detergent 1-9-133398-00 Universal detergent to aid the break down and removal of stubborn dirt, moss, and grime. Patio & Decking Detergent 1-9-133401-00 Patio & decking detergent to aid the break down and removal of stubborn dirt from patio and decked areas. -
Page 14: What To Do If It Goes Wrong
What to do if it goes wrong Problem Solution • Check the ‘This pack contains’ panel on the box to make sure the part is included with your machine. There is an accessory missing • Make sure the on/off switch is set to the ‘I’ position. •... -
Page 15: Getting In Touch
Getting in touch Registration required. Terms and conditions apply, see vax.co.uk for details. † * Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling. - Page 16 Local Authority or retailer for recycling advice. © 2015 Vax Limited. All rights reserved. The VAX trade mark and Vax lozenge is the property of Techtronic Floor Care Technology Ltd and is registered in the EU and may be pending or registered in other countries.
