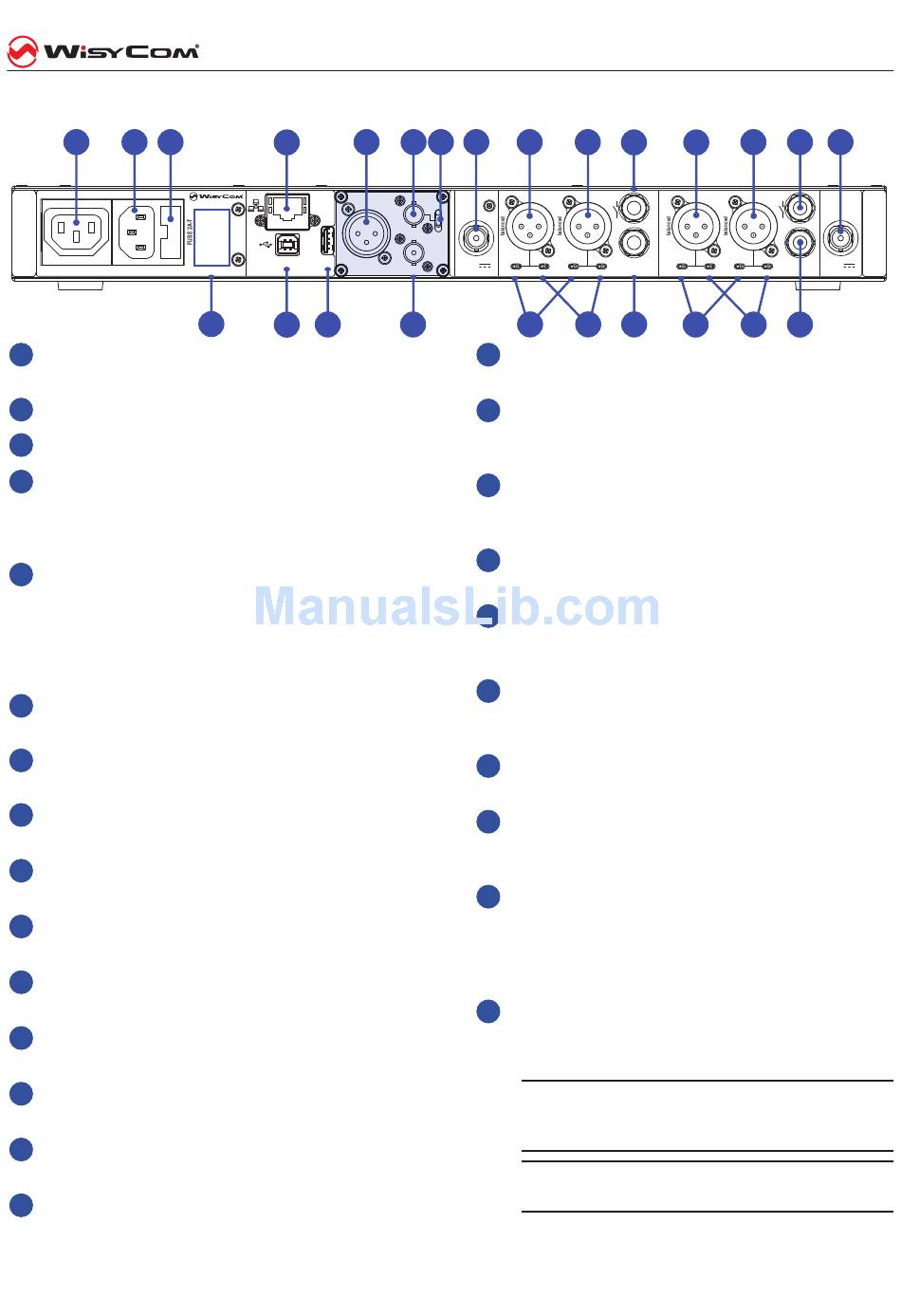

Rear panel

1 2 3
OUTPUT 90-264V~ INPUT 90-264V~ 47-63Hz
UNSWITCHED - 5A MAX
1
Mains output. Do not connect more than 8
units.
2
Mains socket input.
3
Mains fuse (2A-T).
4
Ethernet connector RJ45 for LAN connection of
the receiver. The leds on the connectore indi-
cate the status of the connection (Link and Ac-
tivity). (Optional)
5
AES/EBU XLR 3 pin output connector, digital
audio output transformer isolated, balanced.
This is part of the AES/EBU optional board, to-
ghether with 6, 7 and 22. Here it is possible to
install different option like Ethersound© I/O.
(Optional)
6
Word clock input for external syncronization of
digital audio output.
7
75 ohms termination switch for word clock in-
put.
8
Antenna B input, BNC connector, DC output for
booster power supply.
9
XLR 3 pin male connector, COM audio output of
the receiver 2, balanced. (Optional)
10
XLR 3 pin male connector, LINE audio output of
the receiver 2, balanced.
11
GPI output of the receiver 2, 1/4" (6,3mm) ste-
reo jack socket. (Optional)
12
XLR 3 pin male connector, COM audio output of
the receiver 1, balanced. (Optional)
13
XLR 3 pin male connector, LINE audio output of
the receiver 1, balanced.
14
GPI output of the receiver 1, 1/4" (6,3mm) ste-
reo jack socket. (Optional)
15
Antenna A input, BNC connector, DC output for
booster power supply.
Pag. 14
4 5
AES/EBU
100 Base T
MRK950
LINK / ACT.
LINK
USB
60W MAX
25 24 23
MRK950
6 7 8 9
ANTENNA
RX2
WORD CLK COM
B
75 Ω
RF + DC
IN
HI-Z
12Vdc
OUT
200mA MAX LINE MIC LIFT GND LINE MIC
22 21
16
Unbalanced LINE audio output of receiver 1,
1/4" (6,3mm) stereo jack socket.
17
Switches for shorting the pin 1 of the XLR con-
nectors of receiver 1 to the receiver ground or
not.
18
Switches for attenuating the audio output le-
vel on the XLR connectors. The attenuation is
30dB.
19
Unbalanced LINE audio output of receiver 2,
1/4" (6,3mm) stereo jack socket.
20
Switches for shorting the pin 1 of the XLR con-
nectors of receiver 2 to the receiver ground or
not.
21
Switches for attenuating the audio output le-
vel on the XLR connectors. The attenuation is
30dB.
22
Word clock output, for daisy chain connection.
BNC connector. (Optional)
23
LINK connection, for cascade connection of re-
ceivers, for remote control functionality. USB-A
connector.
24
USB-B connector for PC connection if this
MRK950 is a subnet controller. If this MRK950
is part of a subnet, this connector must be con-
nected to the LINK connector of the previous
MRK950.
25
Product identification label.
Note: shaded area represents the room for
digital audio outputs of the receiver. The pic-
ture shows the AES-EBU option installed.
MRK950EX has also "Rf out" BNC's for the
antenna splitting.
dual true diversity receiver
10 11 12 13
RX1
LINE GPI COM
LINE
unbalanced
LIFT GND LINE MIC LIFT GND LINE MIC
20 19 18 17
14 15
ANTENNA
LINE GPI
A
RF + DC
LINE
12Vdc
unbalanced
LIFT GND 200mA MAX
16
