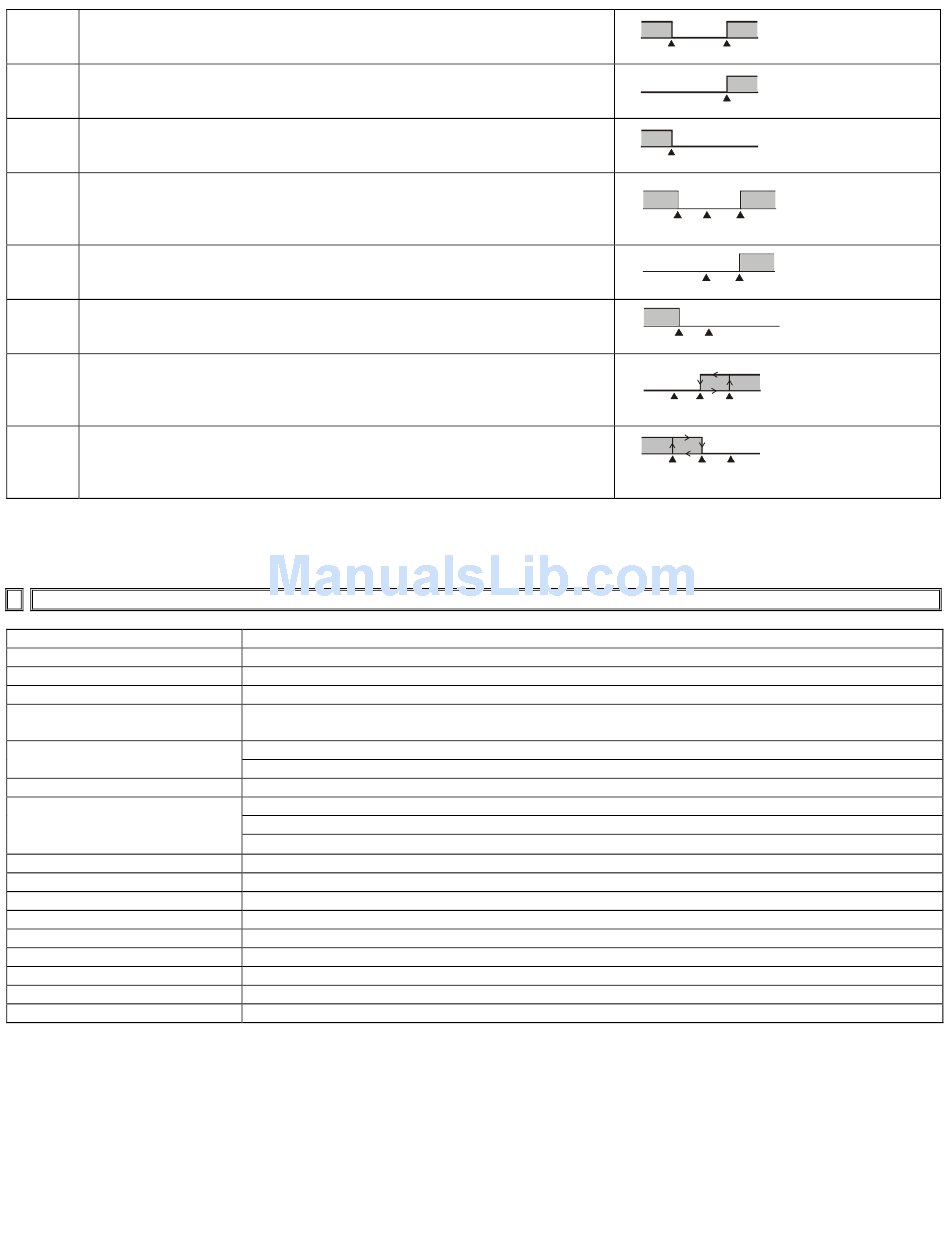

Absolute value upper- and lower-limit:
5 This alarm output operates when PV value is higher than the setting value
AL-H or lower than setting value AL-L.
Absolute value upper-limit:
6 This alarm output operates when PV value is higher than the setting value
AL-H.
Absolute value lower-limit:
This alarm output operates when PV value is lower than the setting value AL-
7
L.
Deviation upper- and lower-limit with standby sequence:
This alarm output operates when PV value reaches set point (SV value) and
8
the value is higher than the setting value SV+(AL-H) or lower than the setting
value SV-(AL-L).
Deviation upper-limit with standby sequence:
9 This alarm output operates when PV value reaches set point (SV value) and
the reached value is higher than the setting value SV+(AL-H).
Deviation lower-limit with standby sequence:
10 This alarm output operates when PV value reaches the set point (SV value)
and the reached value is lower than the setting value SV-(AL-L).
Hysteresis alarm output:
Heating control: This alarm output operates if PV value is higher than the
11
setting value SV+(AL-H). This alarm output is OFF when PV value is lower
than the setting value SV+(AL-L).
Hysteresis alarm output:
Cooling control: This alarm output operates if PV value is lower than the
12
setting value SV-(AL-H). This alarm output is OFF when PV value is higher
than the setting value SV-(AL-L).
(Note: AL-H and AL-L include AL1H, AL2H and AL1L, AL2L)
With the standby sequence, the alarm output will be temporarily disabled until the PV value reaches the set value. Then, the alarm
output will operate. Once the alarming output operation is activated, there is a 1.5 sec. delay time to avoid any malfunction.
7
Input Voltage
Operation Voltage Range
Power Consumption
Memory Protection
Display Method
Sensor Type
Control Mode
Control Output
Display Accuracy
Sampling Rate
RS-485 Communication
Vibration Resistance
Shock Resistance
Ambient Temperature
Storage Temperature
Altitude
Relative Humidity
100 to 240VAC 50/60Hz
85% to 110% of rated voltage
5VA max.
EEPROM 4K bit (non-volatile memory (number of writes: 100,000)
2 line x 4 character 7-segment LED display Process value(PV): Red color, Set point(SV): Green
color
Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK
3-wire Platinum RTD: Pt100, JPt100
PID, ON/OFF, Manual or Auto-tuning.
Relay output: SPDT (SPST on the 1/16 DIN size series16C), Max. load 250VAC, 5A resistive load
Voltage pulse output: DC 14V, Max. output current 40mA
Current output: DC 4 ~ 20m A output (Load resistance: Max. 600Ω)
0.1% of measuring range.
0.5 sec.
MODBUS ASCII communication protocol (only on models designated with serial communication).
2
10 to 55Hz, 10m/s for 10min, each in X, Y and Z directions
2
Max. 300m/ s , 3 times in each 3 axes, 6 directions
o o o
32 F to 122 F (0 C to +50
o o o
-4 F to 150 F (-20 C to +65
2000m or less
0% to 80% (non-condensing)

Specification

o
C)
o
C)
