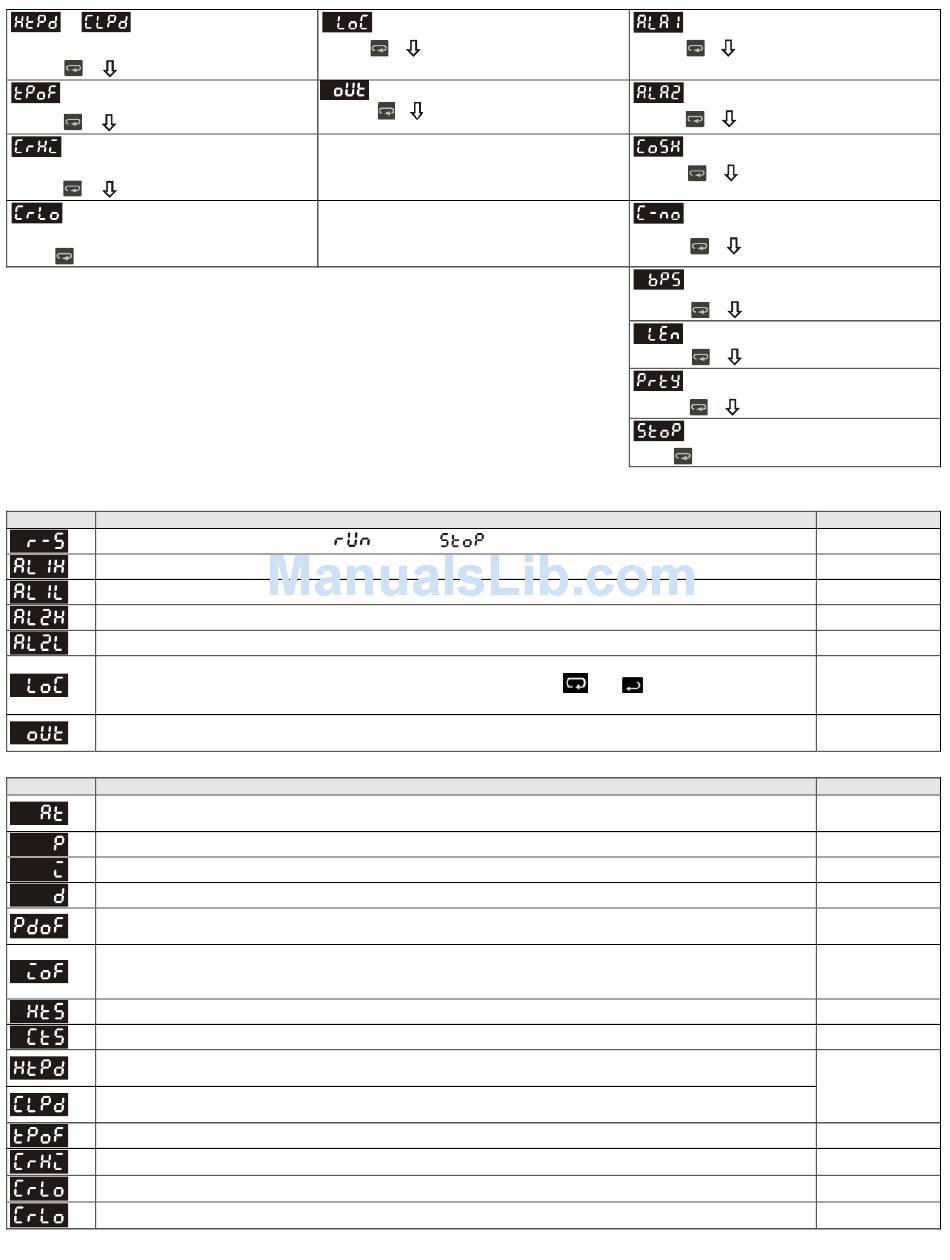

Parameters List

1. Operation Mode: The default mode after start-up

LED Explanation
RUN/STOP: Control setting. Run (
ALARM 1 HIGH: Upper limit for alarm 1. (Only available when alarm is set in the initial setting mode).
ALARM 1 LOW: Lower limit for alarm 1. (Only available when alarm is set in the initial setting mode).
ALARM 2 HIGH: Upper limit for alarm 2. (Only available when alarm is set in the initial setting mode).
ALARM 2 LOW: Lower limit for alarm 2. (Only available when alarm is set in the initial setting mode).
Lock Function Setting: LoC1, LoC2, or OFF. LoC1 mode will lock all settings, LoC2 locks everything
except the setpoint value, and OFF will not lock any settings. Press
release the lock status.
OUT: The Output value adjustment and display in manual tuning control. (Not available in ON/OFF or
Auto-tuning control).

2. Regulation Mode: Control parameters Settings

LED Explanation
AT (Auto-Tuning): ON or OFF, when set ON, the execution of the auto-tuning function in PID control
mode is automatically started. (Only available when PID control is selected in initial settings)
P (Proportional Band in PID control): Sets P value.
I (Integral Time in PID control): Sets I value.
D (Derivative Time in PID control): Sets D value.
PdoF: Offset output when P or PD control function is on. PID in initial settings is selected and the value
of Ki (Integral Time in regulation mode) is equal to zero.
ioF: Default value of integral volume when PID control is ON and the Ki (Integral Time in regulation
mode) is not equal to zero. AT function can automatically set this parameter when PID control is active
and Ki≠0.
HtS (Heating Hysteresis): Available only in ON/OFF control. Sets the value the heating hysteresis.
CtS (Cooling Hysteresis): Available only in ON/OFF control. Sets the value the cooling hysteresis.
HtPd: PID heating control cycle setting. Only available when a PID control is selected in the initial
settings.
ClPd: PID cooling control cycle setting. Only available when a PID control is selected in the initial
settings.
TPoF: Regulates the temperature deviation value.
CrHi: Regulates the 20 mA output deviation value.
CrLo: Regulates the 4 mA output deviation value.
HtS (Heating Hysteresis): Available only in ON/OFF control. Sets the value the heating hysteresis.
Setting lock mode
Press
Display and adjust output value.
Press
) or Stop ( ) mode on the SV display.
Alarm 1 mode setting
Press
Alarm 2 mode setting
Press
Communication write function
enable/disable
Press
Communication address
setting
Press
Communication baud
rate setting
Press
Data length setting
Press
Parity bit setting
Press
Stop bit setting
Press to return input type setting
and keys simultaneously, to
Default
RUN
o
4.0 C
o
4.0 C
o
4.0 C
o
4.0 C
OFF
0
Default
OFF
47.6
260
41
0
0
0
0
Output Selection:
Voltage: 4 sec.
Relay : 20 sec.
0
0
0
0
