What Do You Get?
(continued)
Did you know ...
There are two different types
of connectors used on your
iPAQ Connection Point:
RJ11, which is the type
commonly used for telephone
lines (including HomePNA
networking), and RJ45, which
is used for Ethernet
connections and is larger.
Did you know ...
Local Area Network (LAN) is
a set of connected computers.
The iPAQ Connection Point
supports HomeRF , Ethernet,
HomePNA, or any
combination of these.
Wide Area Network (WAN) is
a connection over a large
area, including Internet
connections.
2-4 PAQ C P
I ONNECTION OINT

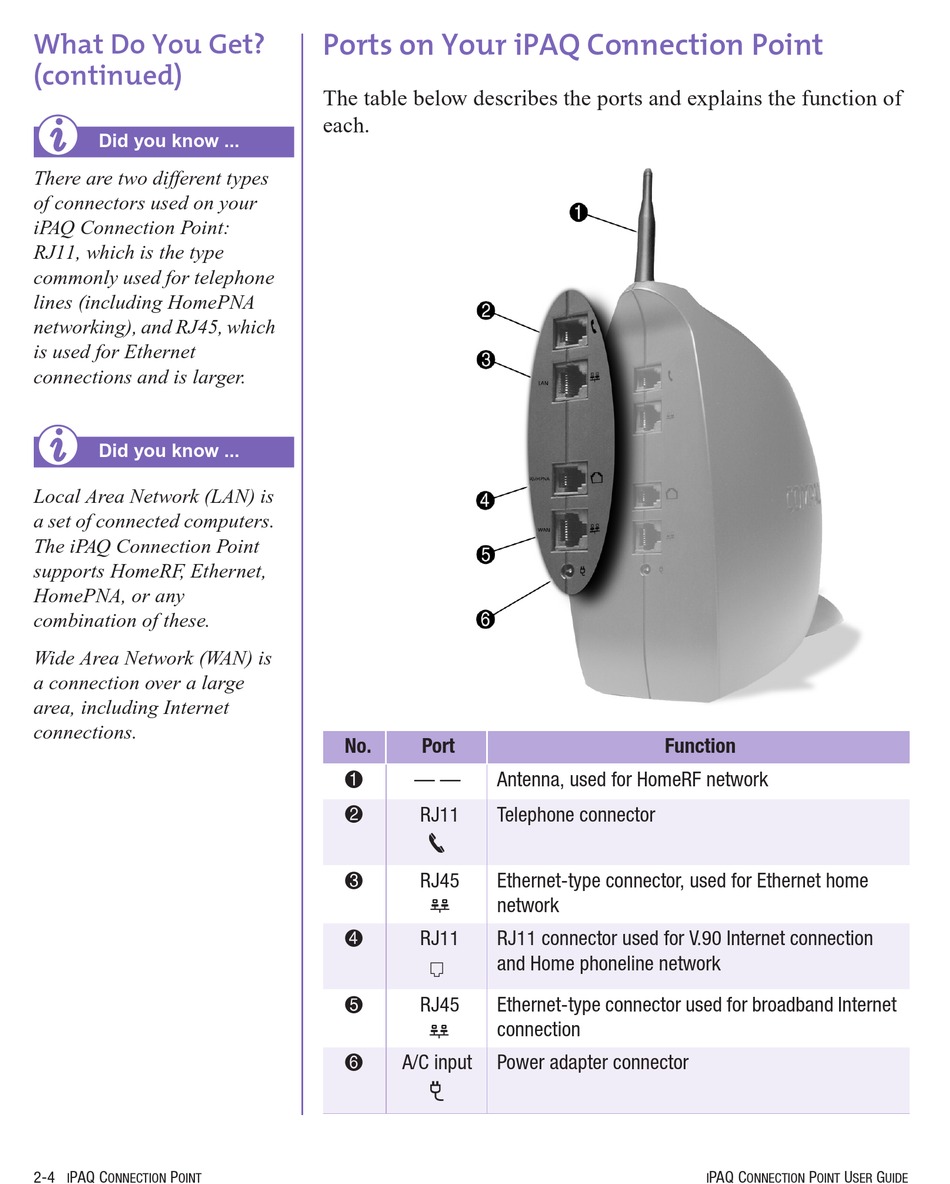

Ports on Your iPAQ Connection Point

The table below describes the ports and explains the function of
each.
No. Port
1
— — Antenna, used for HomeRF network
2
RJ11 Telephone connector
0
3
RJ45 Ethernet-type connector, used for Ethernet home
network
4
RJ11 RJ11 connector used for V.90 Internet connection
~
and Home phoneline network
5
RJ45 Ethernet-type connector used for broadband Internet
connection
6
A/C input Power adapter connector
<
Function
