RU Antenna Alignment
Radio Hardware Installation

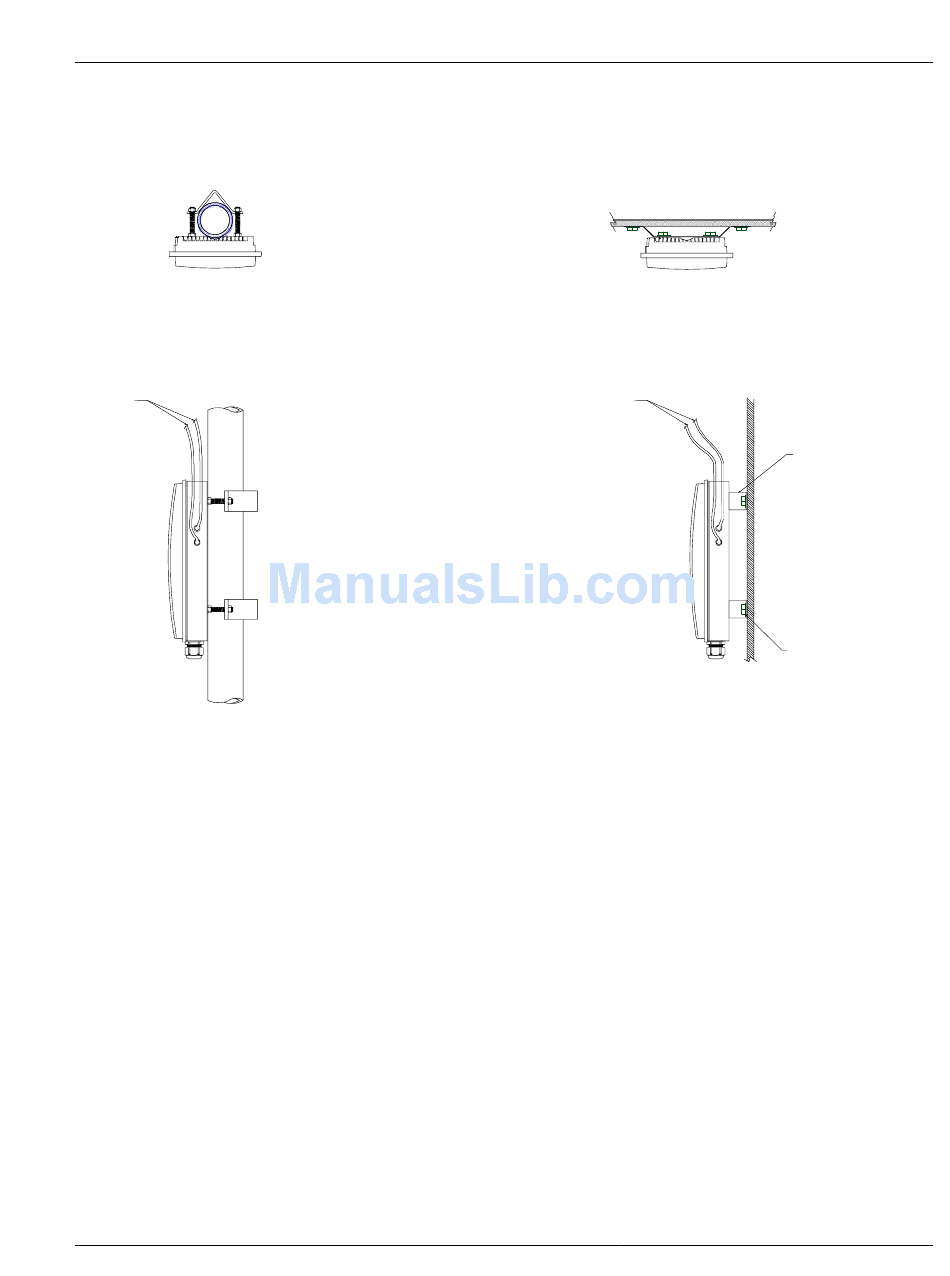

The P5830S-MU-EXT and P5830S-RU-EXT may be installed on a pole or a flat surface per the drawings below:
POLE MOUNTING
TO ANTENNA
Radios should always be mounted with Ethernet and RJ11 ports at the bottom. See the TrangoLINK-10 User
Manual for grounding and additional weatherproofing guidelines. In addition to the guidelines listed in the
TrangoLINK-10 User Manual, installers must cover cable-SMA connectors (both ends) with heat-shrink to provide
weatherproofing of the RF cable connectors.
Trango Broadband Wireless – Rev. A
TrangoLINK-10-EXT Professional Installation Guide
WALL MOUNTING
TO ANTENNA
BRACKETS (SUPPLIED)
BOLTS FOR MOUNTING TO WALL
NOT SUPPLIED
5
