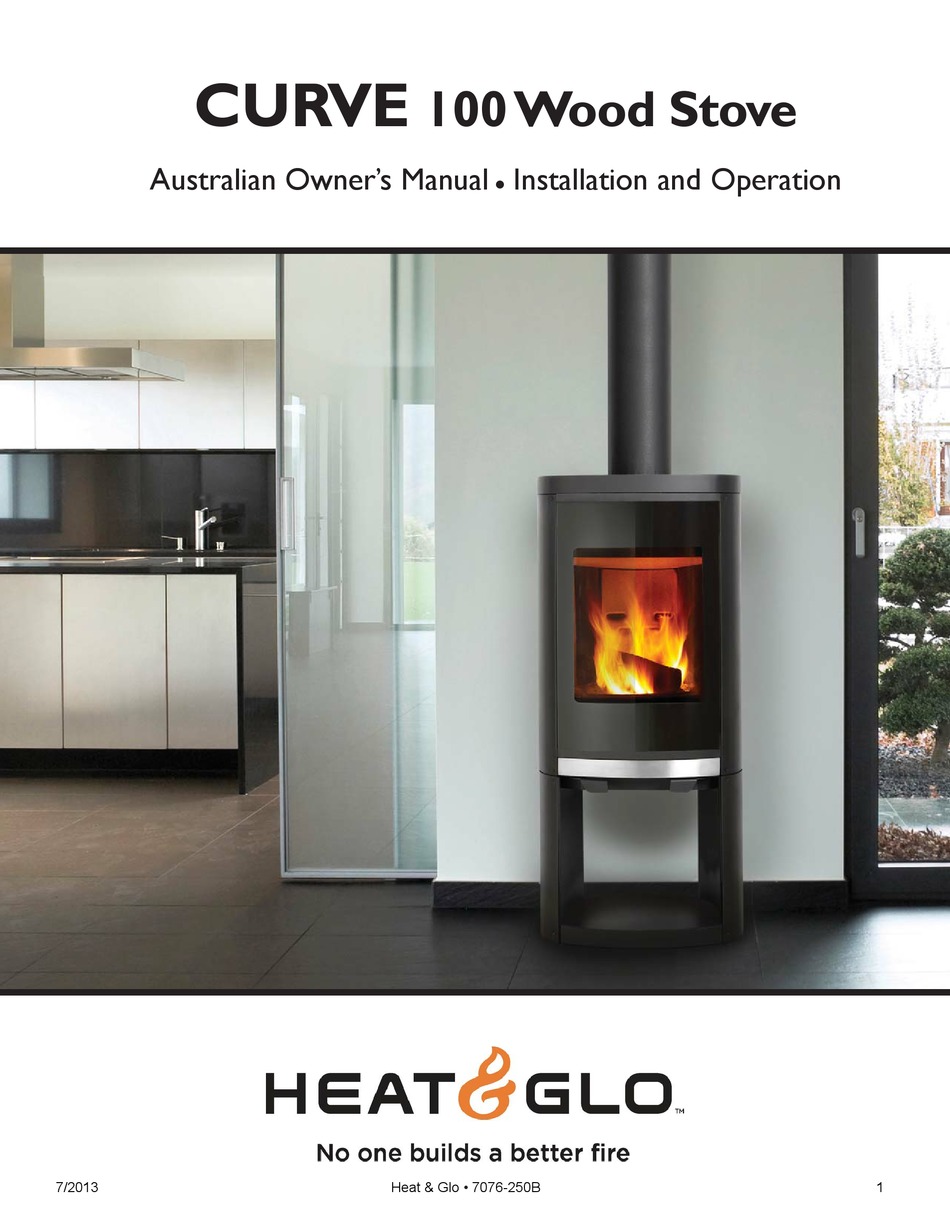

CURVE

100 Wood Stove

Australian Owner's Manual
Installation and Operation
7/2013
Heat & Glo
•
7076-250B
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CURVE 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Heat & Glo CURVE 100

Summary of Contents for Heat & Glo CURVE 100

  • Page 1: Wood Stove

    CURVE 100 Wood Stove Australian Owner’s Manual Installation and Operation  7/2013 Heat & Glo • 7076-250B...

  • Page 2: Congratulations

    Ceiling Plate may vary in size depending on ceiling angle. Please specify ceiling pitch prior to ordering the • ceiling plate. Heat & Glo Curve 100 wood burner’s are tested and approved to the N.Z. National Environmental Stan- • dards;...

  • Page 3: Table Of Contents

    Curve 100 Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

  • Page 4: Section 1: Technical Data

    Curve 100 Technical Data A. INSTALLATION The house owner is responsible for ensuring that all neces- sary national and local safety measures are observed during installation and fi tting and also responsible for observing the fi tting and operating instructions detailed in this manual.

  • Page 5: Section 2: Installation & Assembly

    Curve 100 Installation & Assembly A. POSITIONING YOUR WOOD BURNING STOVE D. LEVELING THE UNIT The wood burning stove must be set up so the stove, fl ue Four leveling bolts have come installed on the unit. connection, fl ue pipe, and chimney system can be cleaned Following installation, adjustments can be made to the and serviced.

  • Page 6: Section 3: Dimensions & Clearances

    Curve 100 Dimensions & Clearances A. APPLIANCE DIMENSIONS 144.0 ck 2 308.0 155.0 262.0 508.0 Heat & Glo • 7076-250B 7/2013...

  • Page 7: Floor Protector

    ▪ If installed directly onto a concrete slab, the concrete slab B. FLOOR PROTECTOR Heat & Glo Curve 100 does not require a insulating Floor can be considered as the fl oor protector,but must maintain Protector, as they are tested and comply with the minimum the minimum measurement listed.
  • Page 8 Curve 100 Fig. 8.1 CORNER POSITIONING (45°) FLOOR PROTECTOR Table 2 DESCRIPTION With Double Pioneer Double Flue Mounted Shield Universal Flue Shield Shall be Fitted Fitted Min. clearance from fi rebox corner to corner walls Min. distance from center of spigot to corner walls Min.

  • Page 9: Section 4: Operation

    Operation A, GENERAL USE D. FUELS The Curve 100 Wood Stove is designed and tested for intermittent The Curve 100 wood stove is designed to burn a wide use. This means that it is not designed for or recommended to range of fi...

  • Page 10: Primary Air

    Curve 100 E. PRIMARY AIR (Lower Air Control) (Fig. 10.2) The primary air is controlled by the lever on the left side of the appliance. When the control arm is pushed in, less air is allowed into the fi rebox below the fi re. When the control arm is pulled out, maximum air is allowed in under the fi...

  • Page 11: Secondary Air

    Curve 100 G. SECONDARY AIR J. FRONT DOOR SEAL This unit is equipped with a secondary combustion system The front door has a non-combustible rope which creates that cannot be regulated. The purpose of this secondary a tight seal for the fi rebox. The fi rst time you open the...

  • Page 12: Section 5: Chimney Systems

    Curve 100 Chimney Systems down the outer casing. Affi x each length per the notes in A. GENERAL INSTRUCTIONS FOR FLUE SYSTEM ▪ Flue pipe installed crimp/narrow end down General Instructions (above). Extend the fl ue pipe above ▪ Outer casings installed crimped/narrow end up. (Critical the outer casing to suit the casing cover/cowl assembly.
  • Page 13 Approved Flashing Roof Line Inner Casing 200mm above roof line Outer Casing Inner Casing Internal Swage 12.5 V ented Ceiling Plate Pioneer Double Flue Shield Flue Pipe Heat & Glo Curve 100 Floor Protector 7/2013 Heat & Glo • 7076-250B...
  • Page 14 Curve 100 Fig. 14.1 Fig. 14.2 FLUE PENETRATION FLUE PENETRATION Un-tested fl ue systems, as per AS/NZS 2918:2001, 4.6.3 (b) ADD Cowl ADD Cowl AS/NZS2918:2001 AS/NZS2918:2001 Casing Cover Un-tested flue with sloped ceiling Casing Cover Un-tested flue with sloped ceiling penetration greater than 30°...

  • Page 15: Section 6: Maintenance

    Curve 100 Maintenance A. ASH DRAWER (Fig. 15.1) B. REFRACTORY Before attempting any maintenance on the unit ensure that The fi rebox is lined with molded refractory fi rebrick. The the unit is cold and has no embers in the fi rebox. To access refractory protects the outside of the appliance and retains the ash drawer open the glass front.

  • Page 16: Section 7: Troubleshooting

    Curve 100 Troubleshooting Smoke escaping Poor heating performance of stove • Damp wood • Damp wood • Chimney not drawing properly • Not enough wood • Chimney is not properly dimensioned for the stove • Inferior wood quality with low fuel value •...

  • Page 17: Section 8: Reference Materials

    Curve 100 Reference Materials A. AS/NZS 2918:2001 General Notes WARNINGS: WARNING: THE APPLIANCE AND FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE WITH AS/NZS 2918 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING CODE OR CODES. WARNING: APPLIANCES INSTALLED IN ACCORDANCE WITH THIS STANDARD SHALL COMPLY WITH THE REQUIREMENTS OF AS/NZS 4013 WHERE REQUIRED BY THE REGULA- TORY AUTHORITY, I.E.

  • Page 18: Warranty Policy

    Curve 100 AUSTRALIAN WARRANTY INFORMATION Hearth & Home Technologies Inc (HHT) 1445 N. Highway | Colville, WA 99114 | (509-684-3745) HHT extends the following manufacturer’s warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer.
  • Page 19 Curve 100 OTHER RIGHTS The HHT manufacturer’s warranty is in addition to other rights and remedies that you may have under Australian law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.

  • Page 20: Contact Information

    CONTACT INFORMATION: Heat & Glo, a brand of Hearth & Home Technologies Inc. 20802 Kensington Boulevard, Lakeville, MN 55044 www.heatnglo.com We recommend that you record the following pertinent information for your Curve 100 Date purchased/installed: Serial Number: Location on appliance:...
