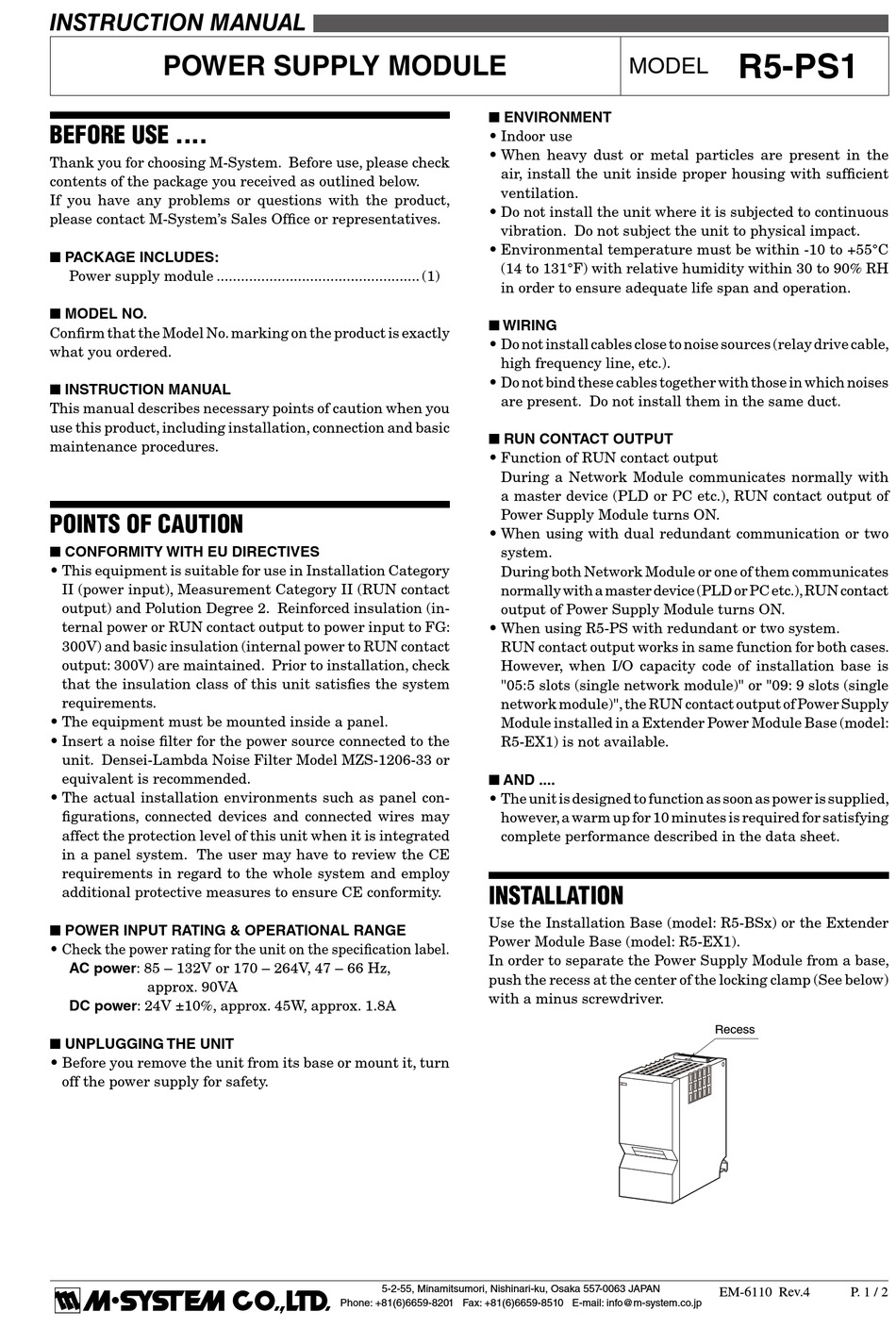

M-system R5-PS1 Instruction Manual

INSTRUCTION MANUAL

POWER SUPPLY MODULE

BEFORE USE ....

Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
n PACKAGE INCLUDES:
Power supply module .................................................. (1)
n MODEL NO.
Confirm that the Model No. marking on the product is exactly
what you ordered.
n INSTRUCTION MANUAL
This manual describes necessary points of caution when you
use this product, including installation, connection and basic
maintenance procedures.
POINTS OF CAUTION
n CONFORMITY WITH EU DIRECTIVES
• This equipment is suitable for use in Installation Category
II (power input), Measurement Category II (RUN contact
output) and Polution Degree 2. Reinforced insulation (in-
ternal power or RUN contact output to power input to FG:
300V) and basic insulation (internal power to RUN contact
output: 300V) are maintained. Prior to installation, check
that the insulation class of this unit satisfies the system
requirements.
• The equipment must be mounted inside a panel.
• Insert a noise filter for the power source connected to the
unit. Densei-Lambda Noise Filter Model MZS-1206-33 or
equivalent is recommended.
• The actual installation environments such as panel con-
figurations, connected devices and connected wires may
affect the protection level of this unit when it is integrated
in a panel system. The user may have to review the CE
requirements in regard to the whole system and employ
additional protective measures to ensure CE conformity.
n POWER INPUT RATING & OPERATIONAL RANGE
• Check the power rating for the unit on the specification label.
AC power: 85 – 132V or 170 – 264V, 47 – 66 Hz,
approx. 90VA
DC power: 24V ±10%, approx. 45W, approx. 1.8A
n UNPLUGGING THE UNIT
• Before you remove the unit from its base or mount it, turn
off the power supply for safety.
n ENVIRONMENT
• Indoor use
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
n WIRING
• Do not install cables close to noise sources (relay drive cable,
high frequency line, etc.).
• Do not bind these cables together with those in which noises
are present. Do not install them in the same duct.
n RUN CONTACT OUTPUT
• Function of RUN contact output
During a Network Module communicates normally with
a master device (PLD or PC etc.), RUN contact output of
Power Supply Module turns ON.
• When using with dual redundant communication or two
system.
During both Network Module or one of them communicates
normally with a master device (PLD or PC etc.), RUN contact
output of Power Supply Module turns ON.
• When using R5-PS with redundant or two system.
RUN contact output works in same function for both cases.
However, when I/O capacity code of installation base is
"05:5 slots (single network module)" or "09: 9 slots (single
network module)", the RUN contact output of Power Supply
Module installed in a Extender Power Module Base (model:
R5-EX1) is not available.
n AND ....
• The unit is designed to function as soon as power is supplied,
however, a warm up for 10 minutes is required for satisfying
complete performance described in the data sheet.

INSTALLATION

Use the Installation Base (model: R5-BSx) or the Extender
Power Module Base (model: R5-EX1).
In order to separate the Power Supply Module from a base,
push the recess at the center of the locking clamp (See below)
with a minus screwdriver.
