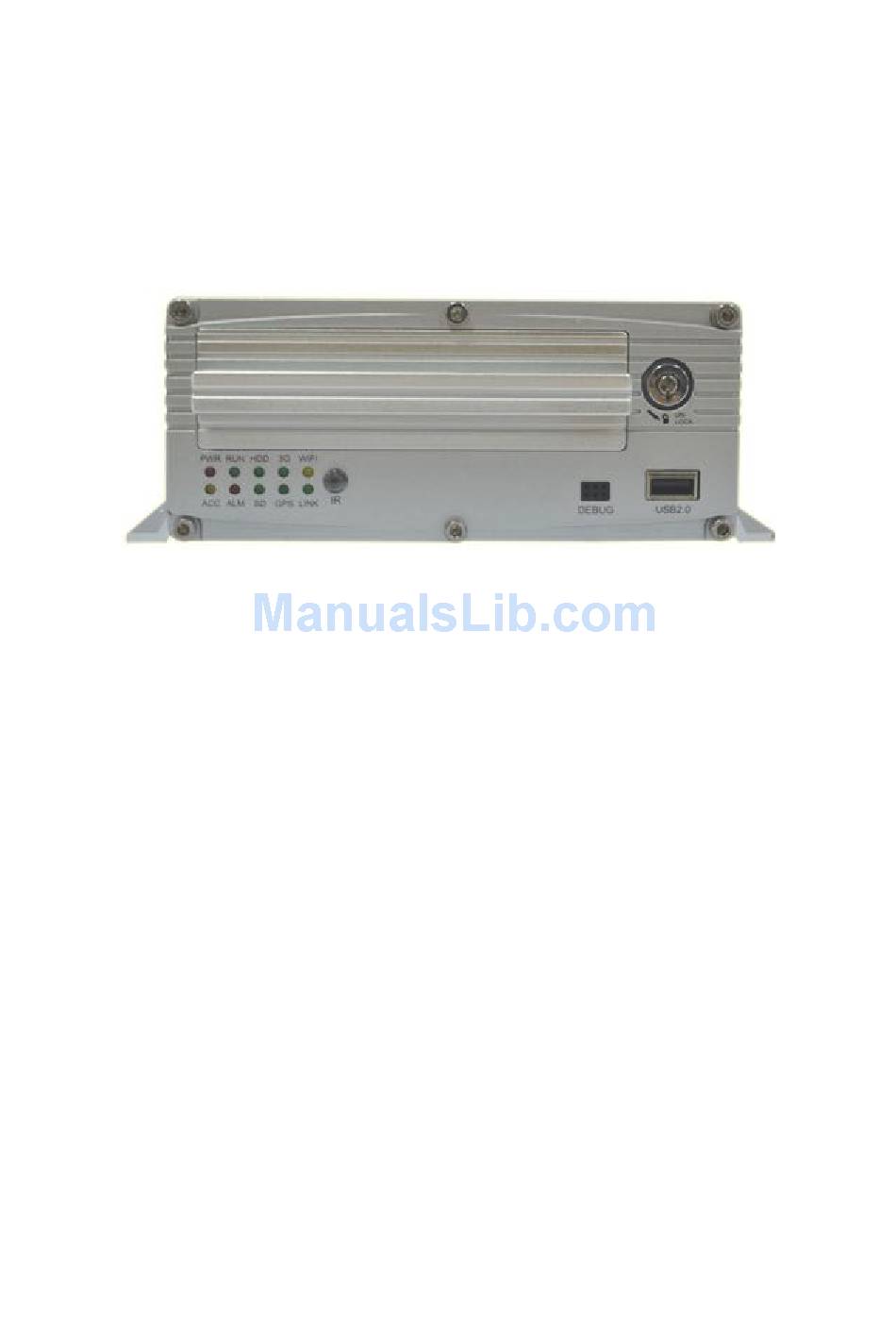

FDH4G, FHD4W & FHD4C
(High Definition Mobile Video Solutions)
User Manual
July 4, 2014 Version 1.1
American Bus Video Inc.
sales@AmericanBusVideo.com
http://www.americanbusvideo.com
DriverSafetyCameras.com
FleetDriverRiskManagement.com
(770) 263-8118
25 Years of Fleet Driver Safety System Sales & Service Experience
All Rights Reserved. © American Bus Video Inc. 2014
Minimum System Requirements for: DVR-Player
1. CPU: Intel Core i5 3.4 GHz
2. RAM: 6GB (8GB or 16GB would be better)
3. Video standard: Intel(R) HD Graphics
Advertisement
Table of Contents
Related Manuals for American Bus Video FDH4G
Summary of Contents for American Bus Video FDH4G
-
Page 1: User Manual
FleetDriverRiskManagement.com (770) 263-8118 25 Years of Fleet Driver Safety System Sales & Service Experience All Rights Reserved. © American Bus Video Inc. 2014 Minimum System Requirements for: DVR-Player 1. CPU: Intel Core i5 3.4 GHz 2. RAM: 6GB (8GB or 16GB would be better) -
Page 2: Important User Information
Memory Storage Required The FDH4G, FHD4W & FHD4C series High Definition mobile vehicle video solutions are sold WITHOUT memory storage device, as the type of SATA 2.5” internal drive will be up to the customer either SSD or HDD depending on their preference and budgets, up to 2TB capacity. - Page 3 Companies lacking a trained PC competent authorized user for this system will need to have their designated persons trained on the basic use of their company PC prior to using this product, as lack of basic PC operation skills and use could compromise the integrity of the product application, the video files and possibly their admissibility as evidence in a court litigation procedure.
- Page 4 Before installing and using, be sure to read the Manual, then you will properly use and protect your machine. The first part of the statement concerns the matters to be attention before installing and using. Attention " To protect your rights, before using and installing, please carefully read the contents of the manual.
-
Page 5: Table Of Contents
Note: When the specification or parameters changes, no other announcement in addition. Contents Product Overview ..............................5 Basic functions ................................5 Audio/Video Compression Format ......................... 5 Audio/video recording mode........................... 5 Image quality when monitoring, recording, playback..................5 Total Resources ............................... 6 Audio video synchronous recording ....................... -
Page 6: Product Overview
Extranet Port Mapping ..........................35 Domain binding setting ..........................39 1 Product Overview The four-channel embedded digital hard disk video recorder is designed for car safety. It uses embedded processor and embedded operating system, combined with video / audio compression / decompression, GPS, car recorder, and the capacity hard disk storage technology to confirm the high intelligence and high stability. -
Page 7: Total Resources
Monitoring: 1080*1920/CH; Recording: 1080*1920/CH; Playback: 1080*1920/CH " Frequencies The monitoring, recording and playback are all with 25fps or 30fps " Horizontal resolution for monitoring 1080 * 1920 / channel " Horizontal resolution for playback 1080 * 1920 / channel . Total Resources "... -
Page 8: Alarm Pre-Recording
responding in less than 1s. Alarm pre-recording " Alarm video mode, alarm pre - recorded more than 5 s video, audio, positioning data. Full 2.10 duplex " Under full loading status, users can index, playback the recorded data with no frame loss. Malfunction alarming function 2.11 "... -
Page 9: Authority, Encryption, Data Safety
other players. 2.16 Authority, encryption, data safety " Enter the DVR by password, default for “6666”. Data is stored in a special file system to ensure it’s encrypted and safe.. 2.17 Log function The log includes the alarming and malfunction information, stored into HDD. It can be checked via "... -
Page 10: Index And Playback
3.4 Index and Playback " Index and playback by time. " Support 4CH audio, 1CH video (any channel can be chosen), index and playback at the same time, support amplifying in one channel. " Data only played by DVR playback software 3.5 HDD storage and data backup "... - Page 11 Operation Interface Graphical Interfaces, Chinese/English optional File System Proprietary Format System Privileges User Password Video Input 4ch SDI Independent Input: 1.0Vp-p 75Ω.Both B&W and Color Cameras Video Output 1 Channel PAL/NTSC Output, 1.0Vp-p 75Ω Composite Video Signal Video Video Display 1 Or 4 Screen Display Video Standard PAL:25frames/Sec;NTSC:30frames/Sec...
- Page 12 Clock Built-In Clock, Calendar 245(L)*190(W)*71(H)mm with Holder Product Size Product Weight 2.8KG(without HDD) Packaging Package Each In a Box, 5 set/Canton Box Size 245(L)*190(W)* 71(H)mm Carton Size 650(L)*375(W)* 255(H)mm Carton Weight 14kgs/ 18kgs (without HDD) Optional functions: Basic Type (Pin Aviation Connector) +A: GPS Function +B: 3G Function +C: Pin Aviation Connector...
-
Page 13: Instruction Of Installation
5 Instruction of Installation Instruction of External Interface Wiring... -
Page 14: Instruction Of Hdd Installation
Remarks: " If the power supply is 12V, then the current of 12V output can be just 1A. So if there are more than 3pcs cameras, we suggest customers to get power for other cameras from the 12V vehicle power directly or use Our special car power supply. -
Page 16: Instruction Of Using
Make sure whether power switch is turned on or turned off, if it is turned on, please use the key, turn the indentation on the “turn off” position. " Pull the front panel of the hard drive box. Carry out the hard drive and drop it on the table. "... - Page 17 " PWR LED: lighting while work starts. Power LED on. RUN INDICATOR: flashing when machine work well ACC INDICATOR: ACC controller signal regularly,it would indicate HDD INDICATOR: record, play, backup data flashing GPS INDICATOR: with GPS moduel, DVR work well indicate 3G INDICATOR: When with 3G or WIFI module, or with LINK, this led will be on if the settings are all right and the network connects well Wifi INDICATOR: When with WIFI module, it will be on if WIFI module works well.
-
Page 18: Instruction Of Remote Control Operation
LOCK: while removing the hard drive, use the key to unlock in order to remove the hard drive, unlock after machine’s auto-disconnects the power, the power auto-connect after being locked. USB: backup the video data of hard drive via USB . NOTE: Recommend to use the SanDisk brand of the USB disk , the minimum volume 256M, must support the FAT32 file system. - Page 19 Towards to left for MENU selection or MENU setup. ”Left” direction for PTZ control " mode. " Towards to right for MENU selection or MENU setup. ”Right” direction for PTZ control mode. " screen zoom the first channel video when surveillance, record Enter password or set system password.
-
Page 20: Menu Setting Instruction
Menu Setting Instruction: First press" "key, next press" " to enter the default password"6666", then press“ ”to enter the main menu interface; There are "System" "Disk" "Record" "Playback" "Network" and "Alarm"options, select the option by pressing these buttons" " ,then press " "to enter. - Page 21 Setup: Set the System time, Car Number, TV system, Language etc. " Date format: Offer 3 display methods like “y/m/d, m/d/y, d/m/y” for personal habit. Daylight saving time: suitable for according countries or areas. Date: Adjust the date of HDD recorder Time: Adjust the time of HDD recorder Time zone: differs by countries, e.g: China for UTC+08 Language: Set "Chinese"...
- Page 22 useful when backing the car. Password: Enter the default password before changing the new password(Note: You have to enter the original password after press "OK", otherwise the DVR will keep staying in the changing password status, and the remote control will not work. New password Enter the new password Operating Way:...
- Page 23 # Device encoding: only for this DVR, the code is unique. # Software version: the version No. of DVR software. # IMIE: IMIE No. of 3G network or module # Strength Of 3G signal: strength value:99, unknown: 0-31 # Strength Of GPS signal: AA-BB(AA: GPS No.;BB: GPS strength. Show signal strength of max.3 # satellite each cycling time.
- Page 24 Car plate number: can be showed by English, Chinese simplified language, Numbers or common symbols. Route: the driving route and code Driver code: set up the driver code information VGA Output:1920*1080 " G-sensor: GSensor-X 0000mg( default value, this value will change accordingly if the X direction gravity accelerated speed value is changeable) GSensor-Y 0000mg(default value, this value will change accordingly if the Y direction gravity accelerated speed value changeable )
- Page 25 User action log, alarm logging, equipment status log Disk Check and format Disk Name Display the system recognized HDD name Total Size: Display the total size of HDD Free Size: Display the remaining Capacity of HDD Format: Format HDD(only format the head files of HDD) Select this item there is a format interface after press“...
- Page 26 Record: the video files setting Channel: select the channel setting (the information of each channel could be set independently) Resolution CIF/HD1/D1 The left side is the local storage information, The right side is network transmission information; local “CIF,HD1,D1”is optional, only “CIF” for network transmission Frame 1-25/30fps...
- Page 27 The right side is the network transmission quality( total 9 grades 32kbps/48kbs/64kbps/80kbps/112kbps/144kbps/192kbps/256kbps/384kbps) Rec mode VIDEO ,Audio +Video A+V ,No record N File Len the packaged video files length setting 300/600/900/1200/1500/1800/2100/2400/2700/3000/3300/3600s optional Save save after finished video parameter setting (have to restart the DVR after setting.) The operating method is similar to the "basic settings"...
- Page 28 and record simultaneously Playback: Select the video files and channel to replay Backup: Select the HDD video files backup to USB Disk The operating method refers to “local video playback instruction” Network Setting: LAN, 3G, WIFI LAN: connecting via RJ45 3G: insert 3G SIM card into the slot WIFI: connecting the network of WIFI "...
- Page 29 Server IP: If the units login on our server, pls use 122.013.152.212, and if the units login on your own server, pls use yours. Server Port: Keep it as default of 8101 " 3G Network Setting: Net type: select 3G-WIFI if you are going to use 3G mode. DHCP: ON Access into “Network”→”3G”...
- Page 30 Dialup Num *99# #777 User name 3gnet card Password 3gnet card " WIFI Setting: Net type: Select 3G-WIFI when the type is under LAN. DHCP: ON Access Network setup →“WIFI” SSID: WIFI router device name. Password: using password for SSID Certificate: Support both “WPA-PSK”...
- Page 31 Notes: Pls make sure the router WIFI encryption keep the same with the setup in MDVR if the units use WIFI. Alarm Alarm REC Alarm-triggered video duration 30-330s optional 30s unit Positioning Interval GPS Data upload interval, used with other system interface Alarm output time (5s-900s) Alarm out Over speed...
-
Page 32: Dvr Video Playback Instruction
such as“off”,“high”,“medium”,“low”.Opening motion detect recording, also need to set the icon“S”(alarm record)for time range of the detect record in “Record Setting” status except select“High”,“Medium”,“Low”. “High”,“Medium”,“Low” is the grade of detect sensitivity, higher grade,record easier. DET AREA No detect Low sensitivity High sensitivity Record Sequence Set the record mode of the different time range... - Page 33 “ ”to select the playback channel.If you need to reselect the files,press keys“ ”or“ ”to repeat the previous steps to select again, then press“ ”.Press “ ”or“ ”to select the replay channel,then press“ ”or press “ ” to button“playback”,next press “ ”to replay, the system will switch to the video playback status,you can see the playback video in the selected channel.
-
Page 34: Video Backup
Video Backup Our company System support 2 video backup ways. Connect the USB disk to the DVR’s USB port for backup Ports on Demand Operating method as follows Connect USB disk to the DVR’s USB port ( FAT32 format, backup Max.20G) On the video playback interface,select the backup video files first,then move to“backup”option,and press “OK”to backup, “COPY END”display after backup finished,the USB disk could be taken away,then press”... -
Page 35: Ptz Control
software instruction). PTZ control This function just used to has PTZ function models Operations are as followings When DVR is working click“ ” entre“PTZ control”mode,If DVR has connect with screen then on screen’s left above would show “PTZ”,click“ ”, “ ”, “... - Page 36 Extranet Port Mapping Install the CMS server in LAN, Pls refer to the manual how to install CMS server. First, make sure the PC which installed the server use Static Public IP, not automatically get. Access into “Program”→”Run”→”CMD”, fill in “ipconfig”→”Enter” to see if the server IP has been set successfully.
- Page 37 Port: 8001, 9001, 8101 Access into router→”Advanced”→”Port forwarding “ Add the ports of 8001, 8101, 9001 to the port forwarding.
- Page 38 Name: fill in a name for MDVR port. Ports to Open: 8001, 8101, 9001 IP Address: Server IP address Inbound Filter TCP UDP Allow ALL, Pls select “Allow All” Schedule select “Always” Fill in the ports, and click” Save settings”.
- Page 39 After the port mapping settings, find the “IP Address” in the WAN, the IP Address is your CMS server IP. login the server IP on the CMS client to access. Notes: When extranet access into LAN server, it need do mapping on the router. Then extranet can access into WAN IP.
- Page 40 Domain binding setting After finished the server set up and the port mapping, you can login via network IP. There are two ways to access the network as follow. ADSL dial-up: It will assign a different dynamic IP address for each dial Leased line: It will assign a static IP address, and you can access directly So, when set up the server with the way of ADSL dial-up, you can binding DDNS via domain in order to prevent the distribution of different dynamic IP in each dial.
- Page 41 Enable Dynamic DNS Enable ON if you need to use DDNS Server Address: Fill in accordingly Username or Key: Fill in applied user name Password or Key: Fill in password Verify Password or Key: confirm the password Timeout:Timeout setting Status: Status of connection Notes: DDNS need to be applied by customers if necessary.
