American Bus Video FHD4G Quick Start Manual

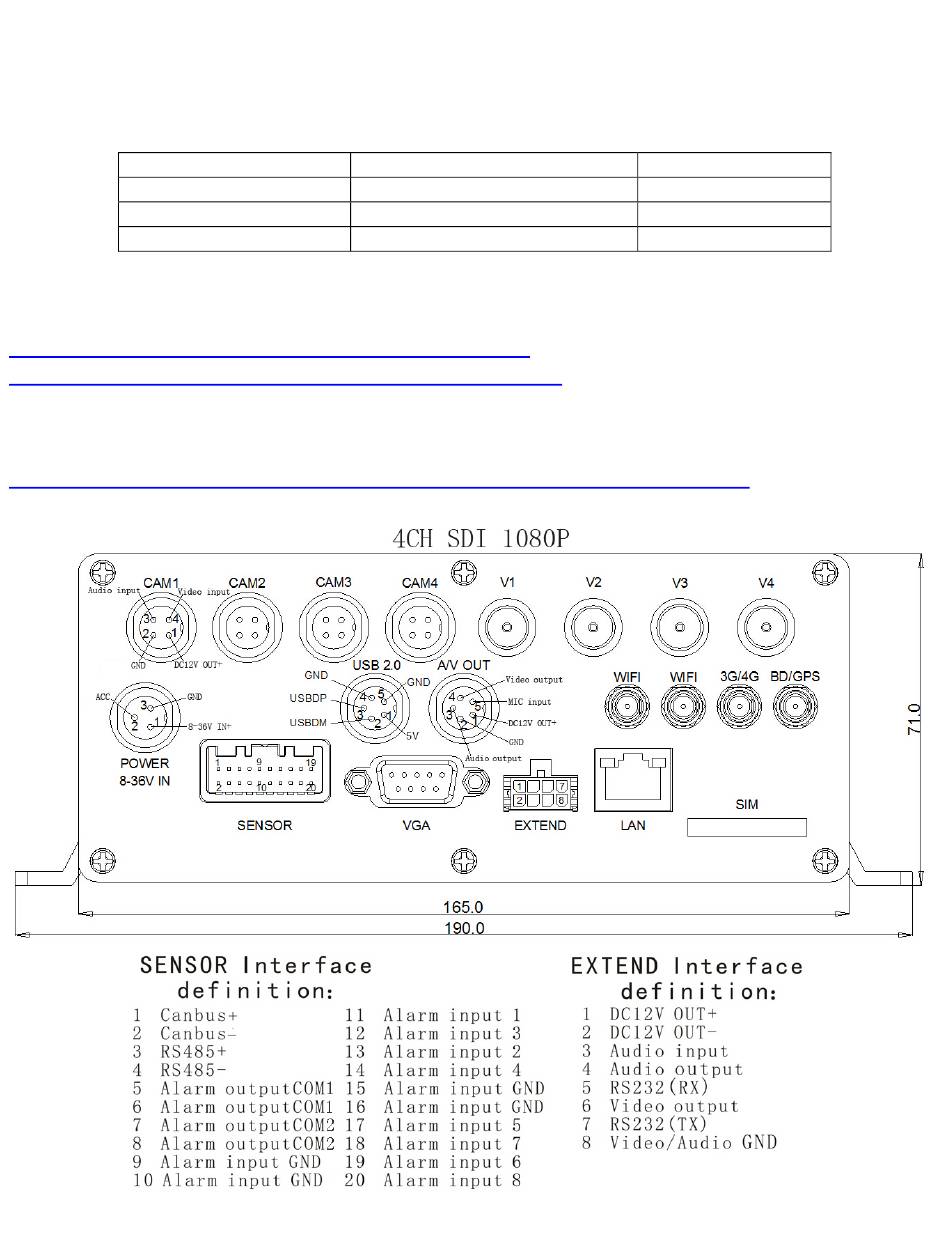

Quick wiring

QUICK WIRING for: FHD4G, FHD4W & FHD4W

Wire Color

Brown

Blue (Trigger -ACC)

Black

Download & Read: SD4D User Manual

http://www.americanbusvideo.com/CUSTOMER-

FTP/FHD4/User%20Manual%20&%20Suppliments/

Manufacturer Provided SD4D Dedicated Video Player

http://www.americanbusvideo.com/CUSTOMER-FTP/FHD4/DVR_Player%20setup_/

Select "Video Player", Select the download version you wish

Mobile Video Solutions

Function

+12v Battery (Fused 1.5A)

+12v Ignition On

-12V Ground

Plug Pin

Pin # 1

Pin # 2

Pin # 3

Table of Contents

Need help?

Do you have a question about the FHD4G and is the answer not in the manual?

Page 1 QUICK WIRING for: FHD4G, FHD4W & FHD4W Mobile Video Solutions Power Harness Cable Wire Color Function Plug Pin Brown +12v Battery (Fused 1.5A) Pin # 1 Blue (Trigger -ACC) +12v Ignition On Pin # 2 Black -12V Ground Pin # 3 Download &...
Page 2 HD-SDI Cable Connection & Sourcing Warning *** Important Notice Regarding Warranty Do not connect any camera cable to the FHD4G, FHD4W or FHD4C High Definition DVR while the DVR is powered up, or while any of the LED indicator lights are illuminated, or this action will VOID the Warranty of the FHD4G, FHD4W or FHD4C DVR.
