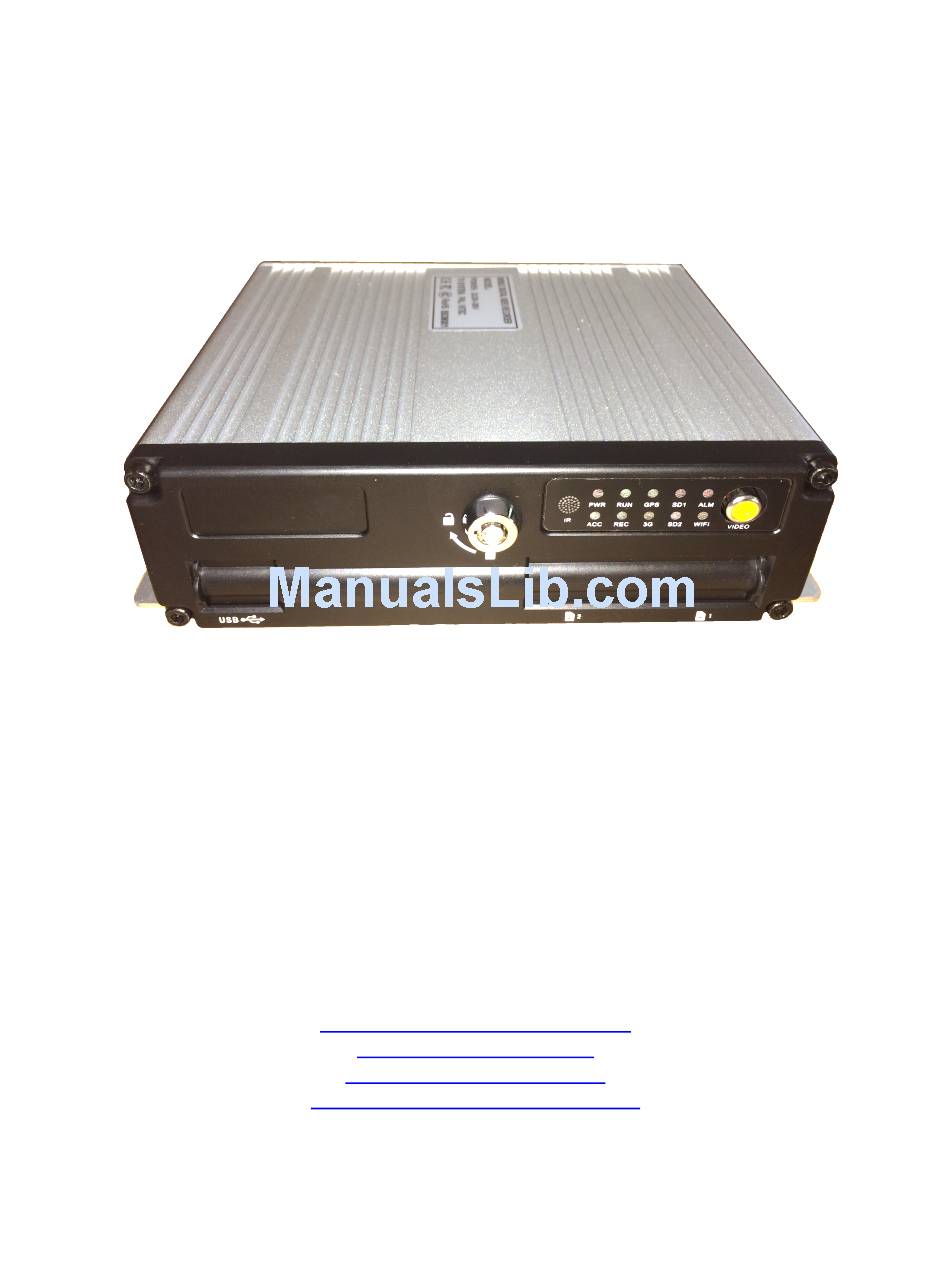

SD4D, SD4W, SD4C
"DVR_Player" Software
Software User Manual
Minimum System Requirements for: "DVR_Player" Playback PC
1. CPU: Intel Core i5 3.4 GHz
2. RAM: 6GB (4GB, 8GB would be better)
3. Video standard: Intel(R) HD Graphics
25 Years of Fleet Driver Safety System Sales & Service Experience
All Rights Reserved. © American Bus Video Inc. 2015
January 1, 2015 Version 1.1
American Bus Video Inc.
sales@AmericanBusVideo.com
AmericanBusVideo.com
DriverSafetyCameras.com
FleetDriverRiskManagement.com
770.263.8118
Advertisement
Table of Contents
Related Manuals for American Bus Video SD4D
Summary of Contents for American Bus Video SD4D
- Page 1 2. RAM: 6GB (4GB, 8GB would be better) 3. Video standard: Intel(R) HD Graphics American Bus Video Inc. sales@AmericanBusVideo.com AmericanBusVideo.com DriverSafetyCameras.com FleetDriverRiskManagement.com 770.263.8118 25 Years of Fleet Driver Safety System Sales & Service Experience All Rights Reserved. © American Bus Video Inc. 2015...
- Page 2 BASIC PC SKILLS REQUIRED The Mobile Digital Video Recorders (MDVR) we provide operate on a PC program viewer program called a Graphical User Interface or GUI. These programs have been designed to be intuitive and require no formal training to operate the program, as long as the user possesses basic PC skills. Use of these GUI aka Video Player programs are predicated on the assumption/requirement that the customer of this high tech video file management tool has authorized personnel who will be operating this program who are competent with the basic operation of their own company PCs.
- Page 3 due to operational problems, that could have been detected before they prevented important video evidence from being documented. Operational verification be a simple daily visual verification of the DVR LED Status LEDs displaying the unit is powered up and recording, or monthly verification via LCD display monitor that the cameras are all properly aimed, that the camera lenses are clean, that the audio is functional for each camera, and that the DVR is recording when the ignition is on.
-
Page 4: Installation Steps
1. Introduction The DVR-player is a PC based software used for play and backup of HDD records of our mobile dvrs. Requirements for the PC: CPU: Frequency 1.0G and above Memory: 512MB and above Graphics: Support Direct10X Operating system: WINXP; WIN7 Ultimate (super user); 2. -
Page 6: Use Guide
Act as the hints until the finish. If there is firewall resistance, allow the action. 3. Use guide Start SW: Take out the HDD box from the dvr, connect it to our hdd reader or device... - Page 7 changing SATA to USB, then to the computer USB.( if a laptop, then connect to the backwards USB port. Our HDD reader has two USB cables,please connect them both to the computer to make sure it works well). Click Start-> Program-> DVR_player->DVR_player exe. The monitor resolution will adjusted to 1024*768 when the software starts.
- Page 8 On the left side of the software, hdd records info will be showed: 2012-09-18 shows the record date,click the date, it will show the record period and storage it takes up: Double click the file needs to be played,（Red files are the videos recorded after dvrs got restart due to interruption of powered supply）...
- Page 9 Select a file to save the video and then click “Download” ; The software will notify “NO DVR HDD” if the DVR HDD is not detected, check below picture: Click “cancel” user can still enter the software interface. Only back-up H.264 videos stored in computers, in U-Disks or in removable hard disk can be played by clicking “open file”...
- Page 10 Video ：Show the video playing interface only( no maps): Video/Map ：Show the video playing interface and maps at the same time:...
- Page 11 ：Show routes in the map in full screen of the playing video： Tracking ：The Icon is used for full screen map tracking playback to see the run tracking of the vehicle Open HDD ： used to search the hard disk connected with the computer and it will play the earliest recorded video after searching.（This button releases the limitation of the sequence- connecting hard disk or SD card to computers before opening the software and no need to close the software even...
-
Page 12: Backup File
Open File ：Used to search the videos in computers or U-Disk or hard disk. Backup File ： To backup the recorded videos in hard disks into H.264 or AVI format in computers，below is the operation instruction:： Click ，it will come to this window: Input the“start time”;... - Page 13 Tool button under the video playing window: ：Play or pause the video playing ：Stop the video playing ：Fast backward; ：Fast forward; : Slow Play ：Snapshot the video playing pictures（only when one channel in full screen）which will be saved in the file where the software installed; ：...
-
Page 14: Speed Curve
button it will show ，to stop the action just need to click it again. The videos will be saved in the “save video” file together with which the software is installed. ： “4”and“8”, click these two buttons to switch the 4channel and 8channel video playing. - Page 15 At this time, Mosaic function has started, right-click a point that you want to get it mosaiced, then move to the other point, then the diagonal zone will be the mosaic zone you drawed ：choose the audio of the playing video （one channel only） ：Click it to show or hid the speed curve diagram, G-sensor curve diagram and alarm information。...
- Page 16 Show in the upper right in the software interface: Marks: The speed can only be shown when the DVR is with GPS function.
