Denon DBT-3313UDCI Service Manual

Universal audio/video player
Hide thumbs Also See for DBT-3313UDCI:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
e

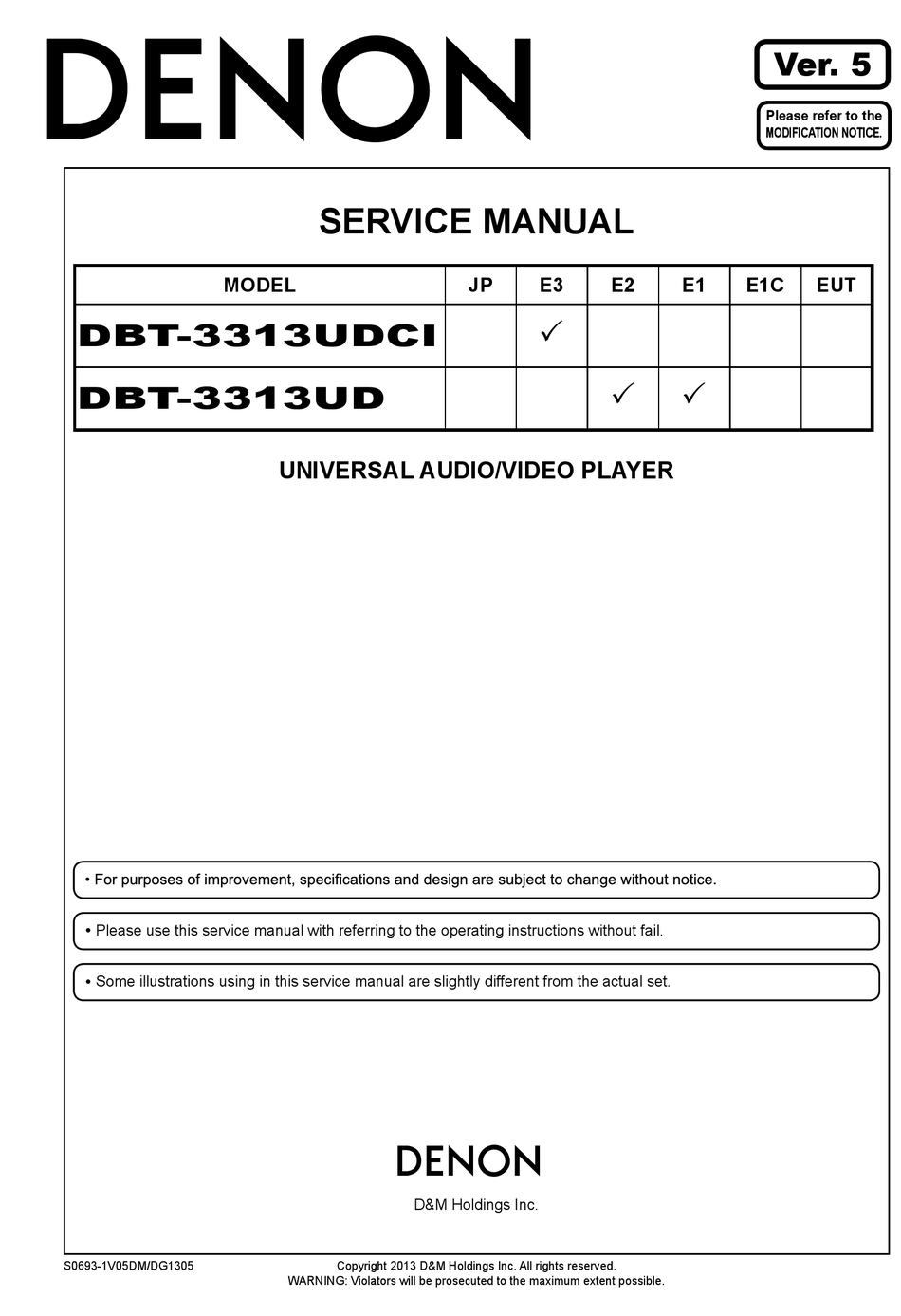

DBT-3313UDCI
DBT-3313UD
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
S0693-1V05DM/DG1305
SERVICE MANUAL
MODEL
UNIVERSAL AUDIO/VIDEO PLAYER
Copyright 2013 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
JP
E3
e
D&M Holdings Inc.
Ver. 5
Please refer to the
Please refer to the
MODIFICATION NOTICE.
MODIFICATION NOTICE.
E2
E1
E1C
EUT

Advertisement

Table of Contents
loading

Related Manuals for Denon DBT-3313UDCI

Summary of Contents for Denon DBT-3313UDCI

  • Page 1 Ver. 5 Please refer to the Please refer to the MODIFICATION NOTICE. MODIFICATION NOTICE. SERVICE MANUAL MODEL DBT-3313UDCI  DBT-3313UD   UNIVERSAL AUDIO/VIDEO PLAYER • Please use this service manual with referring to the operating instructions without fail. • Some illustrations using in this service manual are slightly different from the actual set.

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ............3 TROUBLE SHOOTING ............37 NOTE FOR SCHEMATIC DIAGRAM .........4 1. Power (Power Board) ............37 NOTE FOR PARTS LIST ............4 2. LED blinking ................38 3. Power board ................38 WARNING AND LASER SAFETY INSTRUCTIONS ....5 4. DISPLAY (Display Board) ............39 INSTRUCTIONS FOR HANDLING SEMI-CONDUCTORS 5.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS The following items should be checked for continued protection of the customer and the service technician. LEAKAGE CURRENT CHECK Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check.

  • Page 4: Note For Schematic Diagram

    NOTE FOR SCHEMATIC DIAGRAM WARNING: Parts marked with this symbol z have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective.

  • Page 5: Warning And Laser Safety Instructions

    WARNING AND LASER SAFETY INSTRUCTIONS WARNING WAARSCHUWING Alle IC’s en vele andere halfgeleiders zijn gevoelig All ICs and many other semi-conductors are voor elektrostatische ontladingen (ESD). susceptible to electrostatic discharges (ESD). Onzorgvuldig behandelen tijdens reparatie kan de Careless handling during repair can reduce life levensduur drastisch doen verminderen.

  • Page 6: Instructions For Handling Semi-Conductors And Optical Unit

    INSTRUCTIONS FOR HANDLING SEMI-CONDUCTORS AND OPTICAL UNIT Electrostatic breakdown of the semi-conductors or optical pickup may occur due to a potential difference caused by electrostatic charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body. 2.

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS Audio output characteristics : (1) Frequency response n Performance q BD (Linear PCM) : 2Hz ~ 22kHz (48kHz sampling) Signal format : NTSC, PAL : 2Hz ~ 44kHz (96kHz sampling) (1) BD-Video disc : : 2Hz ~ 88kHz (192kHz sampling) 12 cm, 1 side, 1 layer;...

  • Page 8: Cautions In Servicing

    Refer to "MEASURING METHOD AND WAVEFORMS". When you repair the BD MECHA UNIT, you can use the following JIG. Please order to DENON Official Service Distributor in your region if necessary. Do not supply it : 232C (TTL) – USB conversion jig (Model: DUT-06635 by GeeeTech) : 1 Set Part No.

  • Page 9: Disassembly

    DISASSEMBLY • Disassemble in order of the arrow in the following figure. • In the case of the re-assembling, assemble it in order of the reverse of the following flow. • In the case of the re-assembling, observe "attention of assembling". •...
  • Page 10 About the photos used for "descriptions of the DISASSEMBLY" section • The shooting direction of each photograph used herein is indicated on the left side of the respective photograph as "Shooting direction: ***". • Refer to the diagram below about the shooting direction of each photograph. •...

  • Page 11: Front Panel Assy

    1. FRONT PANEL ASSY → LOADER PANEL → AUDIO PCB Bracket Proceeding : TOP COVER FRONT PANEL ASSY (1) Detach the LOADER PANEL. Shooting direction: B Pressed in metal rod having a mechanism for emergency open, stretched out like a small hole on the left side of the clip to. (2) R emove the screw on the top of Front Panel.
  • Page 12 (3) Lift up to unhook the claw and move in the direction of arrow to gradually pull out the assembly. Top side ×4, Side ×2 (Left and right), Bottom ×3 Top side Shooting direction: C Shooting direction: D Side Bottom side (4) Disconnect connector wire and FFC.
  • Page 13 (5) Remove the screw. (x3) (6) Remove the PCB Bracket. As shown in the figure raised to PCB Bracket, disconnect the FFC. Then, remove in one piece, the board and the bracket. (7) Disconnect the connector wire and FFC. Cut the wire clamp. Remove 4p-PH【XP3】and 18P-FFC【XP4】...

  • Page 14: Bd Mecha Unit Assy

    2. BD MECHA UNIT ASSY Proceeding : TOP COVER MECHA COVER → AUDIO PCB Bracket → BD MECHA UNIT ASSY ※ Please ensure ESD protection prior to handling the BD MECHA. (1) Remove the screws. Screw of Mecha cover ×4, Right/Left (Each x2) (2) Peeling off the sponge.
  • Page 15 (3) Remove the screw. (x4) (4) Disconnect the connector wire and FFC cable. 45P-FFC【J2】, 9P-FFC【J4】 From the left side of the BD's Mecha, remove the screw.

  • Page 16: Main Pcb Unit Assy

    3. MAIN PCB UNIT ASSY Proceeding : TOP COVER → AUDIO PCB ASSY MAIN PCB UNIT ASSY → (1) R emove the screws. Remove the screws from REAR PANEL ×3 Remove the screws from TOP PANEL ×4 (2) Disconnect the connector wire and FFC. Remove all connectors.

  • Page 17: Power Pcb Unit Assy

    4. POWER PCB UNIT ASSY Proceeding : TOP COVER POWER PCB UNIT ASSY → (1) Remove the screws from TOP ×5. (2) Disconnect the connector wire and FFC. Disconnect 12P-PH【CN502/503】 , 3P-VH【CN501】...

  • Page 18: Ir Pcb Unit Assy

    5. IR PCB UNIT ASSY Proceeding : TOP COVER IR PCB UNIT ASSY → (1) R emove the screws. Remove the screws from REAR PANEL ×2 (2) Disconnect the connector wire and FFC. Disconnect 13P-FFC【XP8】...

  • Page 19: Removing Discs

    REMOVING DISCS (1) Remove the Top Cover. (2) Open the CD tray. Pressed in metal rod having a mechanism for emergency open, stretched out like a small hole on the left side of the clip to. Shooting direction: D...

  • Page 20: Diagnostics Of Optical Pickup

    DIAGNOSTICS OF OPTICAL PICKUP Make failure diagnostics of the Optical Pickup as follows. q If the laser drive current (Iop) becomes more than BD : ± 6 [mA], DVD or CD : ±12 [mA] of the initial value, the Optical Pickup should be replaced.

  • Page 21: Iop Checked Method

    1. Iop checked Method Select the laser ON/OFF(CD/DVD/BD)mode of the test mode, and check the Iop value of CD laser, DVD laser or BD laser. (Refer to "6. Test mode") FL Display (The display part of 13 digits) L a s e r O n O f f Laser current check Press the 8 or 9 button to display the laser current value, and then select [X].

  • Page 22: How To Replace The Main Pcb & Bd Mecha Or Bd Mecha

    HOW TO REPLACE THE MAIN PCB & BD MECHA OR BD MECHA NOTE: The optical pick-up laser diode (LD) is instantly degraded or damaged by static electricity or a power surge. When handling the BD MECHA UNIT, always be sure to earth yourself, and use an earth mat on the workbench and floor for grounding.
  • Page 23 [Connection] (1) Remove the Audio PCB bracket. (2) Connect the 232C (TTL) side 4P PH connector of the USB - 232C (TTL) conversion jig to the MAIN PCB of the set. (3) Connect the USB side of the USB - 232C (TTL) conversion jig to the PC. 4P RE-PH CONN CORD (1000mm) USB - 232C(TTL) conversion jig MAIN PCB...
  • Page 24 (5) On the screen below, select "ComPort XX". Select the USB - 232C (TTL) conversion jig port. (6) Enter the Bar Code BOX 32-digit hexadecimal number listed at the bottom of one-dimensional bar code replacement for the BD MECHA. One dimension of bar code data can stick to reading, Bar Code BOX in bar code leaders and can input. Note: The bar code data of the optical pickup, please do not enter the wrong data.
  • Page 25 (7) Click Write(F2). (8) When “Pass” changes to green, writing to the Flash ROM of the MAIN PCB is complete. (9) Switch off the set unit power, and remove the 232C (TTL) side 4P PH connector of the USB - 232C (TTL) conversion jig from the MAIN PCB (CON1).
  • Page 26 2.4. Replace the BD MECHA UNIT ASSY (1) Remove the MECHA COVER. MECHA COVER (2) Move the optical pickup to the outer circumference, remove the FFC, and remove the screws. J1 45P-FFC XP8 9P-FFC 5P-PH CORD BD MECHA (3) Attach the BD MECHA for replacement to the set unit. (When assembling the unit, perform the steps in reverse order.) (4) Check that the 45P-FFC, 9P-FFC and 5P-PH connector cords have been connected.

  • Page 27: How To Replace The Main Pcb Unit Assy

    HOW TO REPLACE THE MAIN PCB UNIT ASSY ・Service Part for the MAIN PCB UNIT ASSY MAIN PCB: (Part No. :9196391D) 1.1. Devices Used (1) PC (2) USB - 232C (TTL) conversion jig (Model: DUT-06635 by GeeeTech) (Do not supply) (3) 4P RE-PH CONN CORD (1000mm) (Part No.
  • Page 28 1.6. Operation check (1) Connect the 45P FFC of J1. J1 45P FFC (2) Attach the MECHA COVER. (3) Attach the TOP COVER. (4) Follow the firmware update procedure, and update the firmware to the latest version. (see "VERSION UPGRADE PROCEDURE OF FIRMWARE") (5) Check the laser amperage (see laser on/off mode in the test mode (page 32)).

  • Page 29: Service Mode

    SERVICE MODE 1. Initial setting mode 1.1. preparation (1) Equipment used: None (2) Unit setting: No spec other than the following procedure. 1.2. procedure b Initialize the BD player when µcom, peripheral parts of µcom, or MAIN PCB. unit has been replaced in servicing. b All user setting will be lost and its factory setting will be restored when this initialization is made.

  • Page 30: Tray Lock Mode

    3. Tray lock mode 3.1. preparation (1) Equipment used: None (2) Unit setting: No spec other than the following procedure. 3.2. procedure [Setting] (1) Pressing the 1 and 8 buttons for simultaneously, plug the AC cord into a power outlet. (2) "TRAY LOCK"...

  • Page 31: Test Mode

    6. Test mode 6.1. Entering the test mode The test mode is entered by pressing the 5 and 8 buttons simultaneously, plug the AC cord into a power outlet. When the test mode is set, the " 1 " and " 3 " indicators light. FL tube display when test mode entered FL Display (The display part of 13 digits) When the test mode is set, the choice screen of the mode appears on the monitor.
  • Page 32 6.3. About each mode ・ With the mode selected, press the 1 button to set that mode. (1) Laser on/off (CD/DVD/BD) mode Press the 8 or 9 button to select [X] and press the 1 button to set it. Laser on/off control is executed and the laser current is displayed. FL Display (The display part of 13 digits) (X=1 : CD laser mode, 2 : DVD laser mode, 3 : BD(SL) laser mode) (mmmm[mA] : Stored data, nnnn[mA] : Current value)
  • Page 33 (3) Accumulated laser on time display mode Press the 8 or 9 button to select [Y] and press the 1 button to set it. The accumulated laser on time is displayed. FL Display (The display part of 13 digits) (Y=1 : CD, 2 : DVD , 3 : BD, mmmmmm : Time(Fractions of hours are counted up one hour on the display.) When the 2 button is pressed, the layer above the current layer is displayed.
  • Page 34 6.4. Stopping the mode When the 2 button is pressed, the layer above the current layer is displayed. The relationship between the different modes and the display of the different layers is shown on the table below. Mode 1 layer 2 layer 3 layer Laser on/off (CD/DVD/BD) mode...
  • Page 35 Error rate display details for each media type Measurement Remarks position The inner It is invalid. It is invalid. It is invalid. When this is selected for BD, DVD or circumference of CD, T84 FFFFFFFFFF display. 2-layer The inner LDC error detection PI error detection It is invalid.

  • Page 36: Procedure Firmware For Upgrading The Version Of The Firmware

    PROCEDURE FIRMWARE FOR UPGRADING THE VERSION OF THE FIRMWARE You can update by downloading the latest version from the Internet. 1. Update from the Internet 1.1. preparation (1) System requirements • Internet Connection by Broadband Circuit • Modem • Router •...

  • Page 37: Trouble Shooting

    TROUBLE SHOOTING 1. Power (Power Board) 1. Power does not turn on. Power does not turn on. POWER_LED is not blinking red. Refer to "2. LED blinking". Check abnormalities of the circuit of a primary side. (Such as D501,D502,D503,D504,Ce501,Q501,U501) Is the fuse of F501 normal? Defect parts should be exchanged.

  • Page 38: Led Blinking

    2. LED blinking POWER_LED is blinking red. Check abnormalities of the connection circuit of +5V. PC0N (CN502#2) and +5V (CN502#3) are measured (Such as Q512,Q505) simultaneously. Defect parts should be exchanged. Before PCON is set to "L", +5V has not carried out When there are no abnormalities in a POWER board, voltage drops.

  • Page 39: Display (Display Board)

    4. DISPLAY (Display Board) FL TUBE doesn't light. Does not appear when press the "DIMMER" on the May be DIMMER was working. remote control. Also, May be "PURE DIRECT" was working. To replace the parts to check there is nothing wrong CHeck VFD_RST(U2#9).

  • Page 40: Hdmi

    5. HDMI No picture or sound is output. Is the set in "PURE DIRECT MODE" "Off"? Set the "PURE DIRECT MODE" "Off". Is a contact part of HDMI JACK P3, P4 normal? Is there no damage around the contact where HDMI Replace the HDMI JACK.

  • Page 41: Usb

    7. USB Does not recognize the USB. Is there nothing wrong with the USB connector P1 of the Display PCB? Is there no damage around the contact where USB Replace the F.PANEL ASSY cable are inserted. Are there no bad solder joints? Is there is nothing wrong with the 4P cable JP1 of Display PCB? Replace the F.PANEL ASSY...

  • Page 42: No Audio Output

    8. No Audio output There is no output from the (2P RCA) ANALOG output. Terminal P1 pin jack on the Main PCB There is nothing wrong with the Not bad, abnormal Replace the RCA PIN JACK. soldering or the like. Is that each cable correctly inserted into the connector of the Main PCB ·...

  • Page 43: Disc Playback Error

    9. Disc playback error Disc playback error Is 45P FFC inserted properly to J1 of Main PCB? 45P FFC inserted into the J1. Is 9P FFC inserted properly to XP8 of Main PCB? 9P FFC inserted into XP8. Is 5P PH connector inserted properly to XP7 of Main 5P PH connector to be inserted into the XP7.
  • Page 44 Personal notes:...

  • Page 45: Block Diagram

    BLOCK DIAGRAM DBT-3313UD (MT8580) WIRING DIAGRAM D&M LINK COAX HDMI_1 HDMI_2 Ethernet MIX L MIX R Clock Genelator 　 Audio AMP&LPF CEC2 Circuits CEC1 AUDIO DAC BA15218F*2 PM1795 NJM4565*1 MCU_CEC CEC SWITCH CS8966 Audio BD CEC_SET POWER_K KEY_A KEY_B POWER AC IN LED_A LED_B WIRED...

  • Page 46: Power Block Diagram

    POWER BLOCK DIAGRAM +12VM PCON +12VA -12VA (U512) L79L12ACZ (U501) PCON NCP1271 +5VSTB MAIN BOARD +5V(VCC PCON (U503) TL431 PCON STANDBY ON/OFF...

  • Page 47: Printed Wiring Boards

    PRINTED WIRING BOARDS MAIN MAIN (COMPONENT SIDE) (FOIL SIDE) 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).

  • Page 48: Front

    FRONT (COMPONENT SIDE) PWD1G (COMPONENT SIDE) 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
  • Page 49 FRONT (FOIL SIDE) PWDG1 (FOIL SIDE) 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).

  • Page 50: Ira1G

    IRA1G IRA1G (COMPONENT SIDE) (FOIL SIDE) AVD2G AVD2G (COMPONENT SIDE) (FOIL SIDE) 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).

  • Page 51: Schematic Diagrams (1/18)

    L552 L552 3.3uH/3A 3.3uH/3A +12VA +12VA/0.1A R572 R572 CE560 CE560 C559 C559 0.1uF/50V/X7R 0.1uF/50V/X7R 470uF/16V 470uF/16V JP507 JP507 CY505 CY505 CY504 CY504 470pF/250VAC 470pF/250VAC C503 C503 C502 C502 CY503 CY503 Q507 Q507 P_AP6679GI P_AP6679GI 0.0022uF(222)400V 0.0022uF(222)400V 470pF/250VAC 470pF/250VAC +M12V L551 L551 3.3uH/3A 3.3uH/3A...

  • Page 52: Vfd_Display_01

    1N4007/1A/1000V MCU_LED_CTRL_2 MCU_LED_CTRL_1 LED1 LED1 LED_RED+GREEN LED_RED+GREEN NPN_3DG3904M NPN_3DG3904M NPN_3DG3904M NPN_3DG3904M D612 D612 1N4007/1A/1000V 1N4007/1A/1000V 3.3V 3.3V Delete R73,C20 DENON VFD FOR DBT1713/3013 1N4148 1N4148 VFD_RST 10K/NC 10K/NC +5V_STBY 1K/NC 1K/NC R120 R120 R121 R121 0.01uF/50V/Y5V 0.01uF/50V/Y5V 1K/NC 1K/NC NC/0...

  • Page 53: Vfd_Display_02

    KEY_IN_A KEY_IN_A KEY_IN_B KEY_IN_B STANDBY_KEY STANDBY_KEY Denon KEY_IN_A KEY_IN_B D305 D305 R119 R119 C205 C205 D304 D304 C204 C204 0.01uF/50V/Y5V 0.01uF/50V/Y5V 2.49K/1% 2.49K/1% 15K/1% 15K/1% R113 R113 0.01uF/50V/Y5V 0.01uF/50V/Y5V 6.8K/1% 6.8K/1% STANDBY_KEY 2.49K/1% 2.49K/1% 15K/1% 15K/1% 39K 1% 39K 1%...
  • Page 54 0.1uF/50V/X7R DBT1713XUD(for Europe) MCU_SET3 14PIN/1.0mm 14PIN/1.0mm DBT1713XUD(for Oceania) DBT1713XUD(for Russia) MCU_SET4 TP11 TP11 MARANTZ:R69 has to set to OPEN while DENON:R69 has to set to 0 OHM DBT1713XUD(for Asia) DBT1713XUD(for China) MCU_SET5 DBT1713XUD(for Japan) AV2-8.4-9/PB/nc AV2-8.4-9/PB/nc R310 R310 R311 R311...

  • Page 55: Main_01

    1.15V POWER for MPEG Chip core C1 C1 C2 C2 C3 C3 5VSTB1 5VSTB1 behind of Caps 1.1V0 PCON1 PCON1 0.1uF/16V/Y5V 0.1uF/16V/Y5V Close to DC-DC 1.16V VCC1 VCC1 +12V +12V_D 1_1V0 1_1V0 10uF/10V/Y5V 10uF/10V/Y5V 0.1uF/16V/Y5V 0.1uF/16V/Y5V 10/2A 10/2A +5V_STBY 10uF/10V/Y5V 10uF/10V/Y5V PS_ON# 10/2A...

  • Page 56: Main_02

    1.5V A_DQ1 A_RA0 U102 U102 U100A U100A A_DQ6 A_RA1 3.3V AG14 A_DQ0 A_DQ0 A_RA2 A_DQ19 A_RA0_2R A_DQS1 TP102 TP102 DDRVCCIO1 RDQ0 AF15 A_DQ1 A_DQ7 A_RA3 A_DQ23 A_RA1_2R A_DQS1# DDRVCCIO1 RDQ1 R381 R381 AVDD33_MEMPLL AH14 A_DQ2 A_DQ3 A_RA4 A_DQ16 A_RA2_2R TP103 TP103 DDRVCCIO1 RDQ2...

  • Page 57: Main_03

    1.2V U100B U100B B_DQ0 DVCC12_K RDQ0_B B_DQ1 DVCC12_K RDQ1_B B_DQ2 B_DQS1 DVCC12_K RDQ2_B 1.2V B_DQ3 B_DQS1# TP201 TP201 DVCC12_K RDQ3_B B_DQ4 U201 U201 TP202 TP202 DVCC12_K RDQ4_B B_DQ5 B_DQS0 DVCC12_K RDQ5_B B_DQ6 B_DQ3 B_RA0 B_DQS0# TP203 TP203 DVCC12_K RDQ6_B B_DQ7 B_DQ7 B_RA1 TP204...

  • Page 58: Main_04

    TO VFD BOARD 3.3V LCDRD VSTB U100D U100D DVCC33_IO_STB AE19 AG25 NAND Flash TSOP48 VCLK DVCC33_IO_STB GPIO8 AE20 AC24 VDATA LCDRD VFD_RST DVCC33_IO_STB GPIO27 IR_IN AG21 NFD7_R W_REMOTE NFD7 C371 C371 AF21 NFD6_R 3.3V VDATA VDATA_1 NFD6 0.1uF/16V/X7R 0.1uF/16V/X7R AH22 NFD5_R VCLK VCLK_1...

  • Page 59: Main_05

    3.3V VCC3IO U100E U100E 3.3V DVCC33_IO_1 DVCC33_IO_1 SRXN DVCC33_IO_2 SRXP DVCC33_IO_2 STXN DVCC33_IO_4 STXP C142 C142 C143 C143 NFM18PC/NC DVCC33_IO_4 NC/0.1uF/16V/X7R NC/0.1uF/16V/X7R NC/4.7uF/16V/Y5V NC/4.7uF/16V/Y5V DVCC33_IO_5 AVDD33_SATA DVCC33_IO_5 AVDD33_SATA AVDD12_SATA1 1.2V AVDD12_SATA AVSS12_SATA1 AVSS12_SATA VCC3IO C144 C144 C145 C145 GPIO0 GPIO0 USB_DP_P0 NC/0.1uF/16V/X7R NC/0.1uF/16V/X7R...

  • Page 60: Main_06

    NC/8PIN/1.0mm NC/8PIN/1.0mm GND5 GND5 VOUTD7 TRST_ DAC_SDA# VOUTD6 VOUTD5 VOUTD4 MT8580_AMUTE 8580_AMUTE [11] MT8580_AMUTE VOUTD3 DENON-LINK COAXIAL DENON-LINK COAXIAL [AMUTE] BE HW Trapping 3.3V 0 Normal mode 1 ICE mode [AOSDATA0, AOLRCK] NC/10K NC/10K NC/10K NC/10K NC/10K NC/10K NC/10K NC/10K...

  • Page 61: Main_07

    3.3V PLACE common inductance CLOSE TO MPEG IC R379 R379 AVDD33_VDAC_X Differential Signal ! HDMI 1 No Through Hole ! 100 ohm - Impedance C164 C164 PESD_TPD4S010B PESD_TPD4S010B C165 C165 ESD3 ESD3 0.1uF/16V/Y5V 0.1uF/16V/Y5V TX2+ F_TX2+ 3.3V NFM18PC/NC NFM18PC/NC U100C U100C TX2- F_TX2-...

  • Page 62: Main_08

    HDMI 2 Port U100G U100G CH0_P_SUB CH0_P_SUB CH0_M_SUB CH0_M_SUB CH1_M_SUB CH1_M_SUB CH1_P_SUB CH1_P_SUB CH2_M_SUB CH2_M_SUB CH2_P_SUB CH2_P_SUB PLACE common inductance CLOSE TO MPEG IC CLK_M_SUB HDMI 2 CLK_M_SUB Differential Signal ! CLK_P_SUB CLK_P_SUB No Through Hole ! 100 ohm - Impedance PESD_TPD4S010B PESD_TPD4S010B 3.3V...

  • Page 63: Main_09

    M12V_T MOTOR DRIVER TI2050G4 MVCC_T TPIC_TR+ TPIC_TR+ TPIC_TR- TPIC_TR- NC/RB 521S/200mA NC/RB 521S/200mA TPIC_B+ TPIC_TL- SLED1_P P5V_2 TPIC_TILT- TPIC_B- TPIC_CO_A- TPIC_TL+ SLED1_N STP2_N TPIC_TILT+ TPIC_CO_A+ C402 C402 R146 R146 TPIC_FR- P12V_3 STP2_P TPIC_FR- C380 C380 NC/RB 521S/200mA NC/RB 521S/200mA TPIC_A+ TPIC_CO_B- R147 R147...

  • Page 64: Main_10

    C357 4.7uF bypass nearby 8580 IC C936 bypass nearby motor driver. C357 C357 4.7uF/10V/Y5V 4.7uF/10V/Y5V A1.2V A1.2V U100F U100F AVDD12_1 AVDD12_1 FVREF AVDD12_2 FVREF AVDD12_2 HAVC VHAVC C383 C383 C242 C242 HAVC HAVC C400 C400 C393 C393 C387 C387 C245 C245 C373 C373...

  • Page 65: Main_11

    TO AUDIO Block MCU_3.3V DIR_ERR P3.0 AUDIO CTRL Interface FL/LINK_LED_CTRL P3.1 R231 R231 10K/NC 10K/NC POWER & DISPLAY I/F DIR_CS\ DENON LINK HD Interface(UPPER ONLY) P3.2 MCU_AMUTE MCU_AMUTE MCU_AMUTE MCU_3.3V IR_IN VCXO_CS IR_IN P3.3 LINK_LED_CTRL 1K 1K 33 33 33 33...

  • Page 66: Main_12

    600/1A 600/1A FB30 FB30 600/1A 600/1A +3.3V_D1 DBT3013 XUD NFM18PC/NC NFM18PC/NC NFM18PC/NC NFM18PC/NC CL23 CL23 CL24 CL24 New HDMI Link (DENON LINK HD) BLOCK FB31 FB31 600/1A 600/1A +3.3V_D1 +3.3V_A C336 C336 C337 C337 CL25 CL25 NFM18PC/NC NFM18PC/NC C334 C334...

  • Page 67: Main_13

    If use MCU_3.3V, it will increase the power dissipation at STANDBY mode. +3.3V_D1 Add net DIR_DO FB32 FB32 160/200mA 160/200mA R393 R393 4094 doesn't work before 8580 has power, DAC_RST1# cannot be controlled. R343 R343 from MCU_P3.4 ShiftR_OE R344 R344 R346 R346 DATA...

  • Page 68: Audio

    5V_STBY +3.3VD AOSDATA0 PCM_DSD CE10 CE10 NC/100uF/25V/RFO NC/100uF/25V/RFO +3.3VD AOSDATA4 NC/0 NC/0 PCM_DSD BAT54C BAT54C 0.1uF/25V/Y5V 0.1uF/25V/Y5V OPEN OPEN NC/BAT54C NC/BAT54C DGND PNP_3CG3906M PNP_3CG3906M NPN_3DG3904M NPN_3DG3904M AOMCLK AOBCK AOLRCK PCM1795_PIN5_MIXL AGND AOSDATA3 AOBCK 20PIN/1.0mm 20PIN/1.0mm DGND NC/100uF/16V NC/100uF/16V PCM1795_BCK DAC_RST# NC/10K NC/10K AGND...

  • Page 69: Exploded View

    EXPLODED VIEW 24 24 11 12 WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer.  印の部分は安全を維持するために重要 な部品です。従って交換時は必ず指定の 部品を使用してください。...
  • Page 70 Personal notes: Personal notes:...

  • Page 71: Parts List Of Exploded View

    COVER BOTTOM COVER MECHA 58-122220-0HH DAMPER MECHA BOTTOM COVER 59-976590-001 MECHA BRACKET 67-DB33Z1-0E0 DOUBLE SIDE TAPE 54-123780-000 BRACKET AV PCB 67-DB33Z2-0E0 919639100460D Main PCB (3313) ALL 08-DT3313-GLBS1 ★ 919643101750S HDMI JACK (3313/7007) 47-HDI014-XX0 919643101780D DENON LINK JACK (3313) 47-RCA314-XX3 ★...
  • Page 72 Ref.No. Part No. Part Name Remarks Q'ty AV PCB 08-BT3313-AV0 919643101760D AUDIO JACK (3313) 46-33079W-04X ★ PC SHEET 58-119290-0HH IR PCB 08-BT3313-IRD 919643101770S RS232C JACK (3313/7007) 47-VGA008-XX0 ★ 919639101080S POWER PWB ASSY 08-N025BH-PW2 REAR PANEL 67-DB17B1-2E0 POWER INLET 08-DT1713-AC 919606502090D 18PIN/1.0mm/240mm_FFC/A 46-KK024C-18AVZ ★...

  • Page 73: Packing View

    PACKING VIEW 11 12...

  • Page 74: Parts List Of Packing View

    51-D70150-0CU09-M 919611500540S AC CORD (1713/5007) E3 51-BC0200-0LU01-M 919611500560S AC CORD (1713/5007) 51-RC0200-0RU09-M 919613100270S HDMI CABLE(AU) 46-HDI015-19G07 BATTERY 919613100280D DENON LINK CABLE 41-UH1500-0KA1C BAG for ACCESSORY 00D5139111030 COLOR LABEL (SP) 71-FORDEN-SGKB1 CONTROLL CARD ONE-BLUE LABEL 54311004920AD GUARANTEE CARD(M) 70-FORDEN-JAPB2 54111093000AD SAFETY INSTRUCTIONS...

  • Page 75: Semiconductors

    SEMICONDUCTORS PCM1795 Only major semiconductors are shown, general semiconductors etc. are omitted to list. The semiconductor which described a detailed drawing in a schematic diagram are omitted to list. 1. PCM1795DBR (AUDIO PCB U1) www.ti.com ........................................SLES248 – MAY 2009 PIN CONFIGURATION DB PACKAGE SSOP-28...
  • Page 76 PCM1795 SLES248 – MAY 2009 ........................................www.ti.com Table 1. TERMINAL FUNCTIONS (continued) TERMINAL NAME DESCRIPTION System clock input — Analog power supply, 5 V — Analog power supply (left channel DACFF), 5 V — Analog power supply (right channel DACFF), 5 V —...
  • Page 77 CS8966 (MAIN PCB U21) CS8966 (U23) VDD25 P1.2 / SDA / SWC0 P1.3 / SCL / SWC1 RSTN P1.4 / SWC2 P2.4 / T2EX / CMPD P1.5 / SWC3 P2.5 / T2 / CMPC P1.6 / T1 / SWB1 / PINT0.0 CS8966F P2.6 / CMPB P1.7 / T0 / SWB0 / PINT0.1...
  • Page 78 PIN DESCRIPTION FUNCTION DESCRIPTION Port 3.7 GPIO 8051 P3.7 GPIO. SPICLK P3.7 I/O, A It behaves as the Master clock output (Master Mode), or Slave clock input (Slave Mode) of the on-chip SPI interface. PGAVMID PGA VMID output. Port 3.6 GPIO 8051 P3.6 GPIO.
  • Page 79 FUNCTION DESCRIPTION Port 4.1 GPIO 8051 P4.1 GPIO. P4.1 I/O, A SDA2 This pin also can be configured as the SDA signal of the 2 I2C slave controller. In this operation mode, this pin should also be configured as bi-directional I/O with open- drain output.
  • Page 80 CS8966 Preliminary FUNCTION DESCRIPTION Port 1.7 GPIO 8051 P1.7 GPIO. PINT0.1 This pin also can be configured as the expanded INT0 interrupt. P1.7 I/O, A T0 Timer 0 Input This pin also can be configured as Timer 0 input. SWB0 This pin also serves as one of the connection for analog switch B.
  • Page 81 FUNCTION DESCRIPTION Port 4.5 GPIO 8051 P4.5 GPIO. P4.5 I/O, A SWC5 This pin also serves as one of the connection for analog switch C. The control of the analog switch is done by setting of ANEN of IOCFGP4.5. Port 1.1 GPIO 8051 P1.1 GPIO.
  • Page 82 FUNCTION DESCRIPTION Port 0.4 GPIO 8051 P0.4 GPIO. PINT1.4 P0.4 I/O, A This pin also can be configured as the expanded INT1 interrupt. ADC1 This pin also can be configured as the input to the ADC channel C by setting ANEN of IOCFGP0.4 to 1.
  • Page 83 FUNCTION DESCRIPTION Reset Low Active. Typically connect a resistor to VDD25 and a capacitor to VSS. RSTN Low asserted and threshold at 0.5*VDD25. When forced low, the chip enters into reset condition. This pin should not be connected to any level above VDD25. Port 4.6 GPIO 8051 P4.6 GPIO.
  • Page 84 FUNCTION DESCRIPTION Port 3.1 GPIO 8051 P3.1 GPIO. CEX3 PCA CCAP Module 3 This pin also can be configured as CEX pin for PCA CCP module 3. CEX is an I/O P3.1 I/O, A interface signal for compare/capture input and PWM output. SWA2 This pin also serves as one of the connection for analog switch A.
  • Page 85 TPIC2050 (U703) TPIC2050 (MAIN PCB U15) Terminal Assignments SLED1_P P5V_2 SLED1_N STP2_N P12V_3 STP2_P STP1_N SLED2_P STP1_P SLED2_N AGND PGND_2 C10V ISENSE MCOM ICOM2 GPOUT P12V_2 ICOM1 SCLK P12V_1 SIMO PGND_1 SOMI FCS_N SIOV FCS_P XRSTIN TRK_N PULL_CTL TRK_P VLDDIN TLT_P CV3P3 TLT_N...
  • Page 86 1.3. Signal description List 1 Signal description Name description SLED1_P Sled1 positive output terminal SLED1_N Sled1 negative output terminal P12V_3 Power supply terminal for 12V drivers output SLED2_P Sled2 positive output terminal SLED2_N Sled2 negative output terminal PGND_2 GND terminal for 12V drivers C10V MISC The capacitance connection terminal for internal regulator.
  • Page 87 MCOM Motor center tap connection ISENSE Current sense input terminal for spindle drivers AGND Ground terminal for internal analog STP1_P STP1 positive output terminal for collimator STP1_N STP1 negative output terminal for collimator STP2_P STP2 positive output terminal for collimator STP2_N STP2 negative output terminal for collimator P5V_2...

  • Page 88: Parts List Of Pcb

    PARTS LIST OF PCB zParts indicated by "nsp" on this table cannot be supplied. zPCB ASS'Y indicated by "nsp" on this table cannot be supplied. When repairing the PCB ASS'Y, check the board parts list and order replacement parts. zThe parts listed below are only for maintenance, might differ from the parts used in the unit in appearances or dimensions. Ref.No.
  • Page 89 Ref.No. Part No. Part Name Remarks Q'ty New Q505,506 90M-HX600030R NPN TRANSISTOR 3DG3904M SOT-23 12-BT3904-0BX Q509,510 90M-HX600030R NPN TRANSISTOR 3DG3904M SOT-23 12-BT3904-0BX Q501 919222500240D MOSFET SMK0460F TO-220F 11-MK0465-0CX Q511 919214500260D NPN TRANSISTOR MMBT8050C SOT-23 12-BT8050-CBX Q504 919212500210D PNP TRANSISTOR MMBT8550C SOT-23 12-BT8550-CBX CE501 919134502300D...
