Summary of Contents for Powerline PLPX

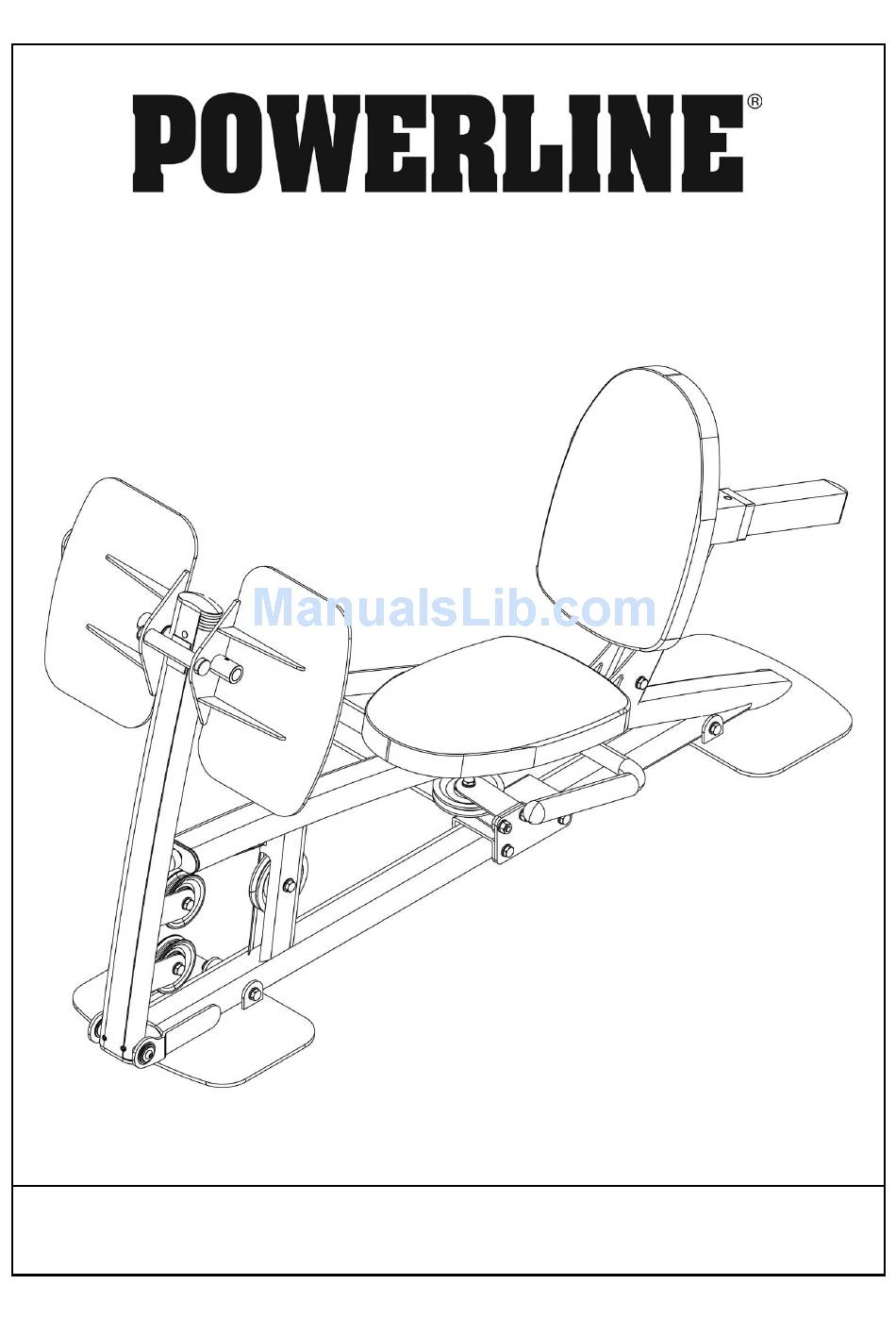

- Page 1 PLPX O W N E R ’ S M A N U A L...
-
Page 2: Before You Begin
Before You Begin Thank you for purchasing the Powerline Leg Press. This piece is part of the Powerline line of quality strength training machines, which let you target specific muscle groups to achieve better muscle tone and overall body conditioning. -
Page 3: Important Safety Information
Body-Solid web site at: www.bodysolid.com • Never drop or insert objects into any opening in the or contact an authorized Powerline dealer or a equipment. Powerline factory-authorized service company or contact Body-Solid customer service at one of the •... -
Page 4: Safety Guidelines
Safety Guidelines Successful resistance training programs have one prominent feature in common...safety. Resistance training has some inherent dangers, as do all physical activities. The chance of injury can be greatly reduced or completely removed by using correct lifting techniques, proper breathing, maintaining equipment in good working condition, and by wearing the appr opriate clothing. -
Page 5: Assembly Instructions
Assembly Instructions Professional installers are highly recommended! However, if you acquire the appropriate tools, obtain assistance, and follow the assembly steps sequentially, the process will take time, but is fairly easy. Do not fully tighten bolts until Required Tools: instructed to do so. 9/16”... - Page 6 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. Do NOT wrench tighten until the end of step 7. Attach two Base Plates (B) to the Main Frame (A) as shown using: Two 25 (3/8”...
- Page 7 S T E P...
- Page 8 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. Do NOT wrench tighten until the end of step 7. Attach Pivot Arm (F) to Main Frame (A) as shown using Small Shaft (15) and: Two 27 (5/16”...
- Page 9 S T E P...
-
Page 16: Leg Press Cable
S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. Do NOT wrench tighten until the end of step 7. Leg Press Cable (19) Chain End Stamped Eye End Note: Pulleys in this step are 4 1/4”... - Page 17 S T E P Diagram 1 (cable installation) START HERE Diagram 2 (pulley installation)
- Page 18 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. Do NOT wrench tighten until the end of step 7. Leg Press Cable (19) Chain End Stamped Eye End Note: Pulleys in this step are 4 1/4”...
- Page 19 S T E P Diagram 1 (cable installation) Cable (19) to Main Frame (A) Diagram 1A Diagram 2 (pulley installation)
-
Page 20: Ordering Parts
PLPX Main Frame Parts List PART# QTY KEY# DESCRIPTION PLPMF-A MAIN FRAME PLPBP-B BASE PLATE PLPMFC-C MAIN FRAME CONNECTION PLPP-D PLATE PLPPH-E PULLEY HOLDER PLPPA-F PIVOT ARM PLPFP-G FOOT PLATE PLPBPF-H BACK PAD FRAME PLPH-J HANDLES PLPS/BP-K SEAT / BACK PAD Key #, Part #, and Description are required when ordering parts. - Page 23 1900 S. Des Plaines Ave. Forest Park, Il 60130 1 (800) 556-3113 Hours: M-F 8:30 - 5:00 CST Copyright 2003. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product. Body-Solid machines maintain several patented and patent pending features and designs.
