STIHL 009, 010, 011
SERVICE MANUAL
STIHL 009, 010, 011
FOREWORD
This Service Manual covers model 010
chain saws up to machine number
7 900 000 as well as later machines
unless technical information bulletins
have been issued in the meantime
with updated repair procedures.
Models 009 and 011 have substantially
the same constructional features as
model 010 chain saws. This Service
Manual can therefore be used for the
009 and 011 chain saws as well.
In the event of faults it is quite possible
that a single fault may have several
causes. It is therefore advisable to
consult the "Troubleshooting Chart"
in each chapter when tracing faults.
We also recommend that you make
use of the exploded views in the
illustrated parts lists when carrying out
repair work.
This service manual and all technical
information bulletins are intended
exclusively for the use of STIHL
servicing dealers and staff and must not
be passed on to third parties.
STIHl
Andreas Stihl
Postfach 1760
D-7050 Waiblingen

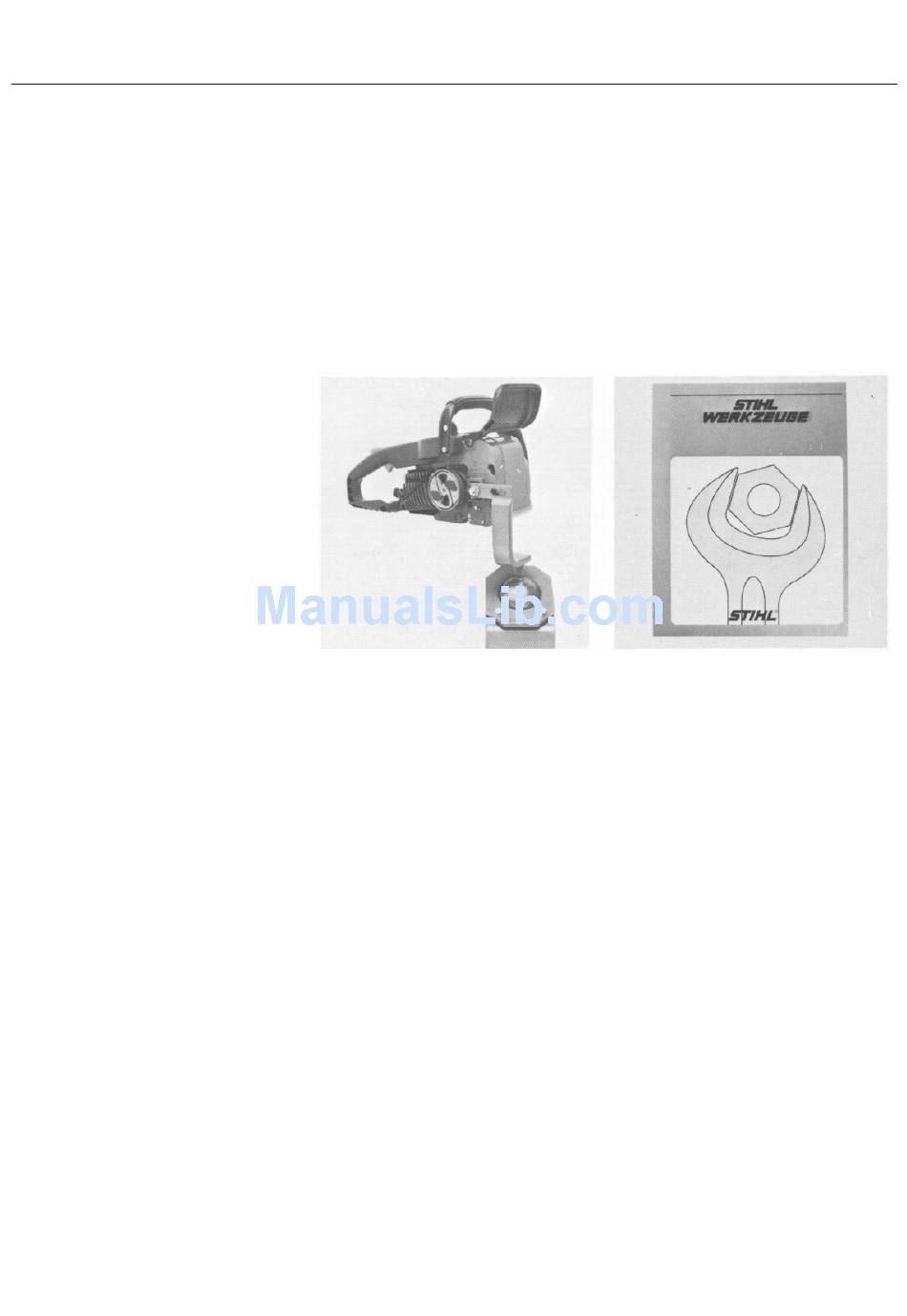

Repair work is made considerably
easier if the chain saw is mounted on
assembly stand 5910 850 3100. The
saw is easily secured to the stand by
means of the bar mounting stud and
collar nut.
While on the assembly stand the chain in several languages and can be
saw can be swivelled into any required ordered by quoting the appropriate
position within a certain range to suit
the repair in question. This not only
has the advantage of keeping the
component in the most convenient
position for the repair but also leaves
both hands free for the work and thus
effects a considerable time saving.
SPECIAL TOOL MANUAL
Our special tool manual illustrates
and lists the part numbers of ail
available machine-related tools as
well as general purpose tools for all
machines.
The special tool manual is available
part number listed hereunder.
German
0455 901 0023
English
0455 901 0123
French
0455 901 0223
Spanish
0455 901 0323
Yugoslav
0455 901 0423
Swedish
0455 901 0523
Italian
0455 901 0723
Portuguese
0455 901 1223
1
