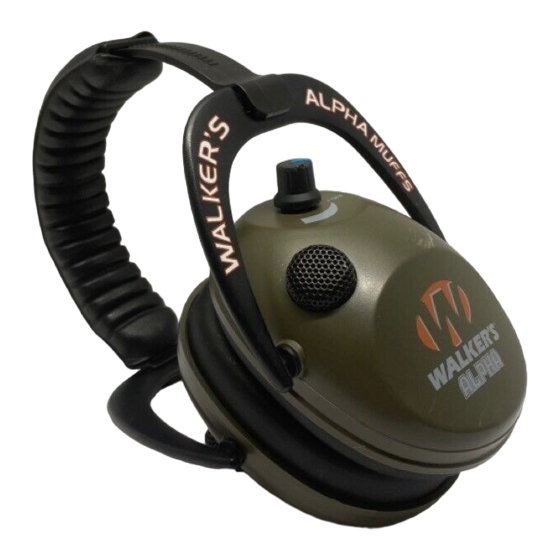

Walker's ALPHA MUFFS Owner's Manual

OWNER'S MANUAL
ALPHA MUFFS
Increases Hearing
•
Protects Hearing
• Sound Activated Compression (SAC) circuit helps protect
hearing from harmful loud sounds, by reducing the
• Noise Reduction Rating (NRR) of 24 dB.
Volume Controls & Directional Sound
• Two independent volume controls allow for total adjustment of
the four wind resistant high frequency microphones.

Adjusting the Headband

Alpha Muffs come with independent headband and ear muffs adjustments. Size
the Alpha Muffs to comfortably fit your head by sliding the ear cups in or out of
the headband. The ear cups should fit comfortably, completely surrounding your
ear to get the perfect acoustic seal.

Replacing The Battery

The battery compartments are located under the padding on the inside of each ear
cup. The padding is cut for easy access. Remove the battery from compartment and
replace with two new Size AAA Alkaline batteries. Note the direction of the positive
(+) and negative (-) polls.
Trouble-Shooting Your Alpha Muffs
If you experience problems, see possible cures below.
Symptom Cause
Dead Battery is dead
Not Loud Enough Battery is dead
Intermittent Battery is defective
(goes on and off)
Not Clear, Distorted Low battery
Motor-boating Sound Low battery
Identifying Muff Components
Battery Compartment
Located beneath foam
(Size AAA)
If Your Alpha Muffs Whistle
Whistling may sometimes occur when you wear your Alpha Muffs with the
Peel back upper foam piece
power tuned on. Whistling generally occurs if the volume level is set too high.
Turn the volume level down until the whistling stops.
Battery Compartment
Size AAA Alkaline Battery
Caring For Your Alpha Muffs
Padded foam liner
Remember that your Alpha Muffs are a quality instrument and should be treated
in the same careful manner as any other precision-engineered device.
1. Never allow any liquid to enter the Alpha Muffs as this may damage the
components within the device.
2. Do not store your Alpha Muffs in any location which would expose it to
excessive heat (for example, in direct sunlight, near car dashboards,
heaters or radiators).
3. Be careful not to drop your Alpha Muffs as this may damage its components.
4. Never insert any foreign objects into your Alpha Muffs. This could result in
serious damage to the instrument.
5. Never permit solvents to come into contact with your Alpha Muffs as this
can damage the units.
6. Clean your Alpha Muffs by wiping with a damp cloth moistened with a
Possible Cure
mild cleanser.
Replace battery
Replace battery
Replace battery
Replace battery
Replace battery
Special Butyl Rubber Ear Pads
Stays soft and pliable
•
Maintains the perfect acoustic seal
•
Toll-free customer support 877-269-8490
www.walkersgameear.com
Adjustable, Padded Headband
Most Comfortable Fit
Additional hinge point allows
muffs to move as the head moves
Independent Volume Controls
Allow for true stereo sound
*Red on right ear, Blue on left.
Wind-Resistant,
High-Frequency Microphone
Makes it easy to identify sounds
and direction
Concave Cheek Relief
Won't interfere when shouldering a gun
