WALKER'S ALPHA MUFFS Manual

Functions

Increases Hearing

• Up to five times.

Protects Hearing

• Sound Activated Compression (SAC) circuit helps protect hearing from harmful loud sounds, by reducing the amplification of those sounds to a safe level.
• Noise Reduction Rating (NRR) of 24 dB.

Volume Controls & Directional Sound

• Two independent volume controls allow for total adjustment of the four wind resistant high frequency microphones.

Adjusting the Headband

Alpha Muffs come with independent headband and ear muffs adjustments. Size the Alpha Muffs to comfortably fit your head by sliding the ear cups in or out of the headband. The ear cups should fit comfortably, completely surrounding your ear to get the perfect acoustic seal.

Replacing The Battery

The battery compartments are located under the padding on the inside of each ear cup. The padding is cut for easy access. Remove the battery from compartment and replace with two new Size AAA Alkaline batteries. Note the direction of the positive (+) and negative (-) polls.

1. Peel back upper foam piece
2. Battery Compartment
   Size AAA Alkaline Battery
3. Padded foam liner

Trouble-Shooting Your Alpha Muffs

If you experience problems, see possible cures below.

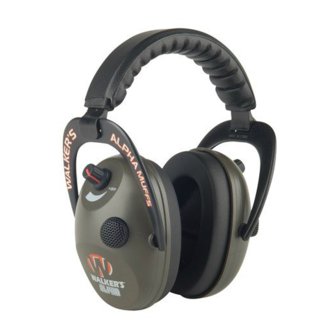

Identifying Muff Components

1. Adjustable, Padded Headband
2. Most Comfortable Fit
   Additional hinge point allows muffs to move as the head moves
3. Independent Volume Controls
   Allow for true stereo sound
   *Red on right ear, Blue on left.
4. Wind-Resistant, High-Frequency Microphone
   Makes it easy to identify sounds and direction
5. Concave Cheek Relief
   Won't interfere when shouldering a gun
6. Special Butyl Rubber Ear Pads
   • Stays soft and pliable
   • Maintains the perfect acoustic seal
7. Battery Compartment
   Located beneath foam (Size AAA)

If Your Alpha Muffs Whistle

Whistling may sometimes occur when you wear your Alpha Muffs with the power tuned on. Whistling generally occurs if the volume level is set too high. Turn the volume level down until the whistling stops.

Caring For Your Alpha Muffs

Remember that your Alpha Muffs are a quality instrument and should be treated in the same careful manner as any other precision-engineered device.

1. Never allow any liquid to enter the Alpha Muffs as this may damage the components within the device.
2. Do not store your Alpha Muffs in any location which would expose it to excessive heat (for example, in direct sunlight, near car dashboards, heaters or radiators).
3. Be careful not to drop your Alpha Muffs as this may damage its components.
4. Never insert any foreign objects into your Alpha Muffs. This could result in serious damage to the instrument.
5. Never permit solvents to come into contact with your Alpha Muffs as this can damage the units.
6. Clean your Alpha Muffs by wiping with a damp cloth moistened with a mild cleanser.

Toll-free customer support 877-269-8490
www.walkersgameear.com

LIMITED WARRANTY

Walker's warrants this product to the original purchaser to be free from defects in materials and workmanship, under normal use and conditions for a period of two years parts/90 days labor from the date of the original purchase.

Under this warranty, this unit will be replaced or repaired at our option, without charge for parts or labor, excluding batteries, for a period of 90 days after the purchase. After 90 days, the cost of labor with Shipping/Handling and Insurance of $29.95 (Alpha Muff only) is the customer's responsibility. Copy of original receipt may be required for any warranty service.

This warranty is void if any of the following occur:

1. The warranty card was not sent in at the time or purchase
2. The unit is not owned by the original purchaser at the time of the warranty claim
3. The unit has been tampered with, opened or punctured
4. The unit has been immersed in water or other liquids, allowed to be filled with dirt or dust, or otherwise physically abused
5. The 24-month limited warranty has expired

This shall be the exclusive written warranty of the original purchaser and neither this warranty or any other warranty, expressed or implied, shall extend beyond the 24-month period listed above. In no event shall Walker's Game Ear, Inc. be liable for consequential damages, consequential property damage, or consequential personal injury. (Some states do not allow limitations on implied warranties or exclusions of consequential damages, so that these restrictions may not apply to you). This warranty gives you specific legal rights, and you may have other rights, which vary from state to state.

Walker's, Inc. • PO Box 535189 • Grand Prairie, TX 75053-5189
You can register your product online at: www.WalkersGameEar.com

Rev. 12/18/09
